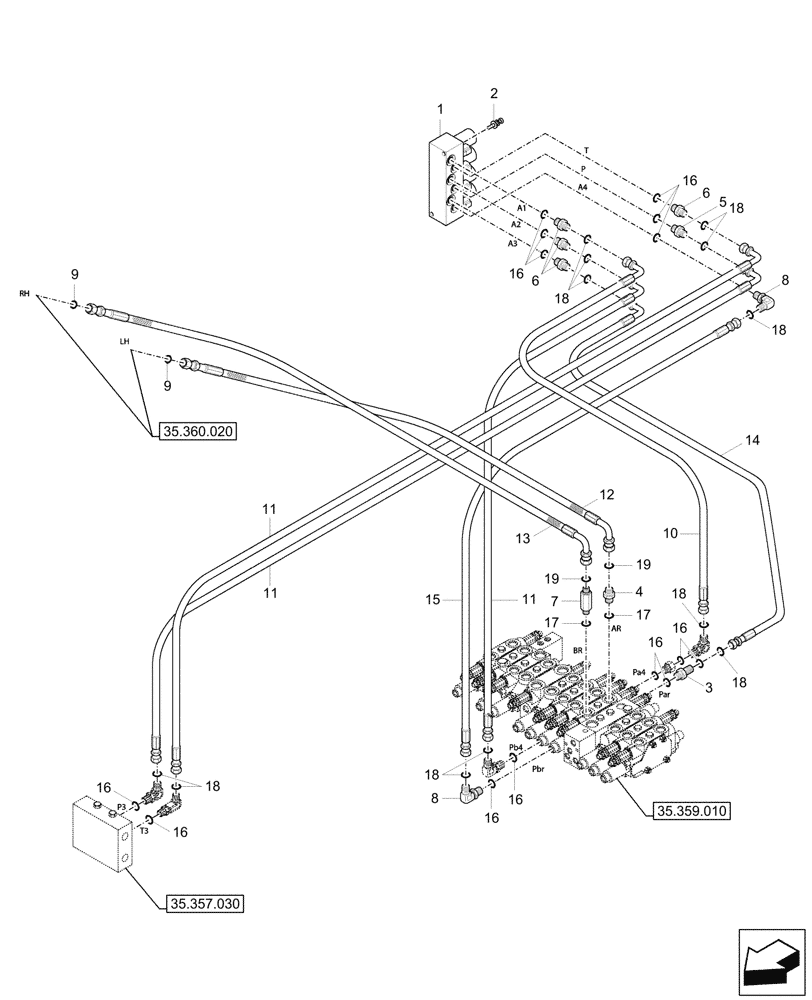

Запчасти Case CX37C (35.360.010) - VAR - 405033, 40535 - CONTROL VALVE, HAMMER, SHEARS, LINES (35) - HYDRAULIC SYSTEMS

1

31MK-20050

HYDRAULIC VALVE

4 EPPR

1шт.

2

S035-086526

BOLT,M8 x 1.25 x 65mm

2шт.

3

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

4

31MH-10710

HYD CONNECTOR,PF 3/8 x 13/16 UNF

1шт.

5

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

6

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

4шт.

7

X511-106534

HYD CONNECTOR,PF 3/8 x 13/16 - 16 UNF

1шт.

8

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

9

S621-014001

O-RING

2шт.

10

X420-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

1шт.

11

X420-042020

HYDRAULIC HOSE,9/16 - 18 UNF x 1000mm

3шт.

12

P930-085058

HOSE

1шт.

13

P930-085060

HOSE

1шт.

14

X420-042009

HYDRAULIC HOSE,9/16 - 18 UNF x 450mm

1шт.

15

X400-042020

HYDRAULIC HOSE

1шт.

16

S631-011004

O-RING,PF 1/4

14шт.

17

S631-014004

O-RING

2шт.

18

S621-011001

O-RING,9/16 - 18 UNF

12шт.

19

S621-014001

O-RING

2шт.
