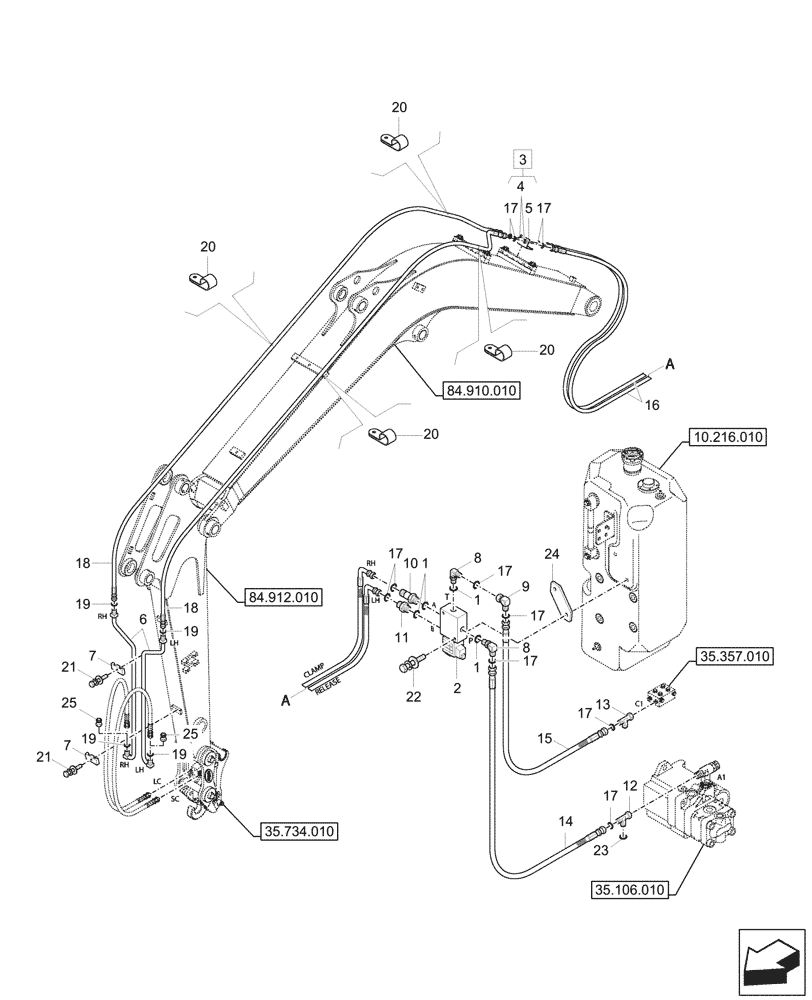

Запчасти Case CX33C (35.734.020) - VAR - 405037, 405039, 405040 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS

1

S631-011004

O-RING,PF 1/4

4шт.

2

31M9-20060

SOLENOID

Valve

1шт.

3

31MH-90130

TERMINAL

ASSY, Incl 4, 5

1шт.

4

X540-120001

HYD CONNECTOR

2шт.

5

NSS

NOT SOLD SEPARAT

Plate, Incl in 3

1шт.

6

35MH-90021CA

PIPE

2шт.

7

31M6-75091

CLAMP

2шт.

8

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

9

X850-515100

90 ELBOW

Swivel

1шт.

10

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

11

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

12

X840-535153

TEE

Swivel

1шт.

13

X840-515151

TEE,9/16 - 18 UNF

Swivel

1шт.

14

P933-045035

HYDRAULIC HOSE

1шт.

15

X420-042015

HYDRAULIC HOSE,9/16 - 18 UNF x 750mm

1шт.

16

P930-045048

HYDRAULIC HOSE

2шт.

17

S621-011001

O-RING,9/16 - 18 UNF

11шт.

18

P913-045063

HYDRAULIC HOSE

2шт.

Short Arm (1.3M) with Quick Clamp, Var. 405037

1шт.

18

P913-045069

HYDRAULIC HOSE

2шт.

Long Arm (1.6M) with Quick Clamp, Var. 405039

1шт.

19

S621-011001

O-RING,9/16 - 18 UNF

4шт.

20

31L7-10340

CLAMP

4шт.

21

S035-082526

BOLT,M8 x 1.25 x 25mm

2шт.

22

S035-085026

BOLT

2шт.

23

S621-014001

O-RING

1шт.

24

35MK-90040

SHIM

1шт.

25

X710-100102

CAP

2шт.

Without Quick Clamp, Var. 405040

1шт.
