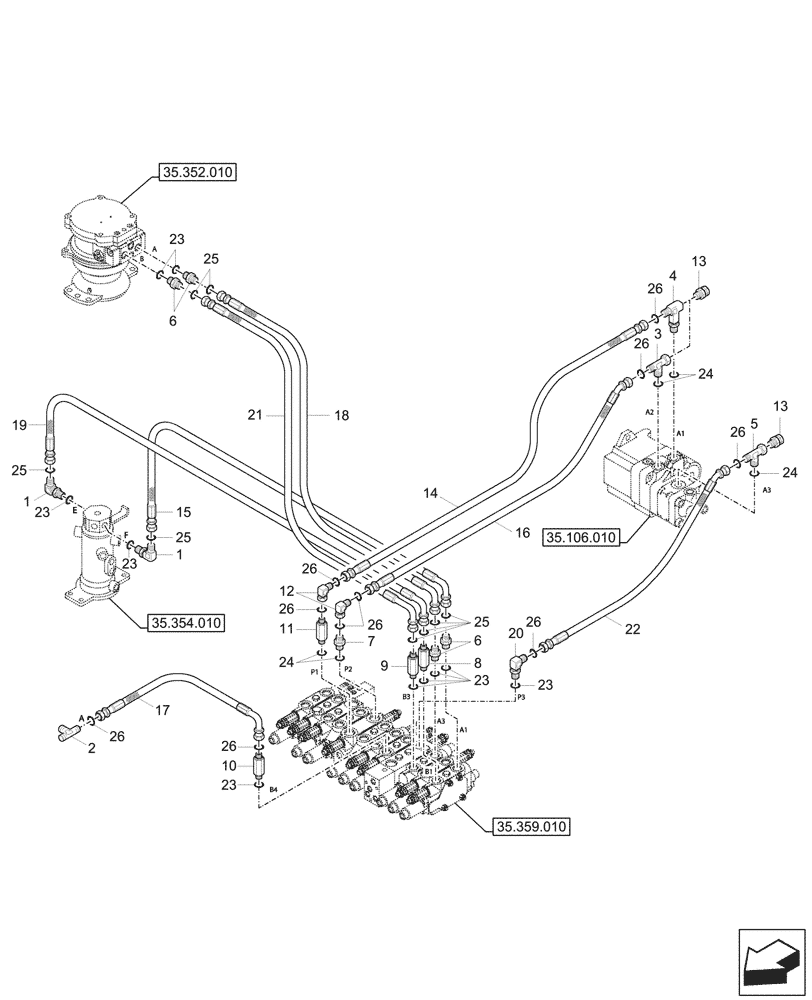

Запчасти Case CX33C (35.359.100) - CONTROL VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

X520-110002

ELBOW,PF 3/8 x 11/16 - 16 UNF

2шт.

2

31MH-10320

TEE

1шт.

3

31MH-10430

TEE

1шт.

4

31MH-10490

TEE

1шт.

5

31MH-10340

TEE

1шт.

6

X500-110002

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

4шт.

7

X500-110003

HYD CONNECTOR,PF 1/2 x 13/16 - 16 UNF

1шт.

8

31N8-40140

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

Long

1шт.

9

31N8-40150

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

Long

1шт.

10

X511-106534

HYD CONNECTOR,PF 3/8 x 13/16 - 16 UNF

Long

1шт.

11

31N8-40190

HYD CONNECTOR,PF 1/2 x 13/16 - 16 UNF

Long

1шт.

12

X850-535300

ELBOW,3/16 - 16 UNF

Swivel

2шт.

13

31EK-11130

SCREW,M16

3шт.

14

P924-085015

HYDRAULIC HOSE

1шт.

With Quick Coupler, Var. 405037, 405039

1шт.

14

P914-085016

HYDRAULIC HOSE

1шт.

Without Quick Coupler, Var. 405040

1шт.

15

P930-065017

HYDRAULIC HOSE

1шт.

16

P924-085014

HYDRAULIC HOSE

1шт.

17

P930-085028

HYDRAULIC HOSE

1шт.

18

P930-065013

HYDRAULIC HOSE

1шт.

19

P930-065020

HYDRAULIC HOSE

1шт.

20

X520-110013

ELBOW,PF 3/8 x 13/16 - 16 UNF

1шт.

21

P930-065014

HYDRAULIC HOSE

1шт.

22

P924-085013

HYDRAULIC HOSE

1шт.

23

S631-014004

O-RING

10шт.

24

S631-018004

O-RING

5шт.

25

S621-012001

O-RING

8шт.

26

S621-014001

O-RING

10шт.
