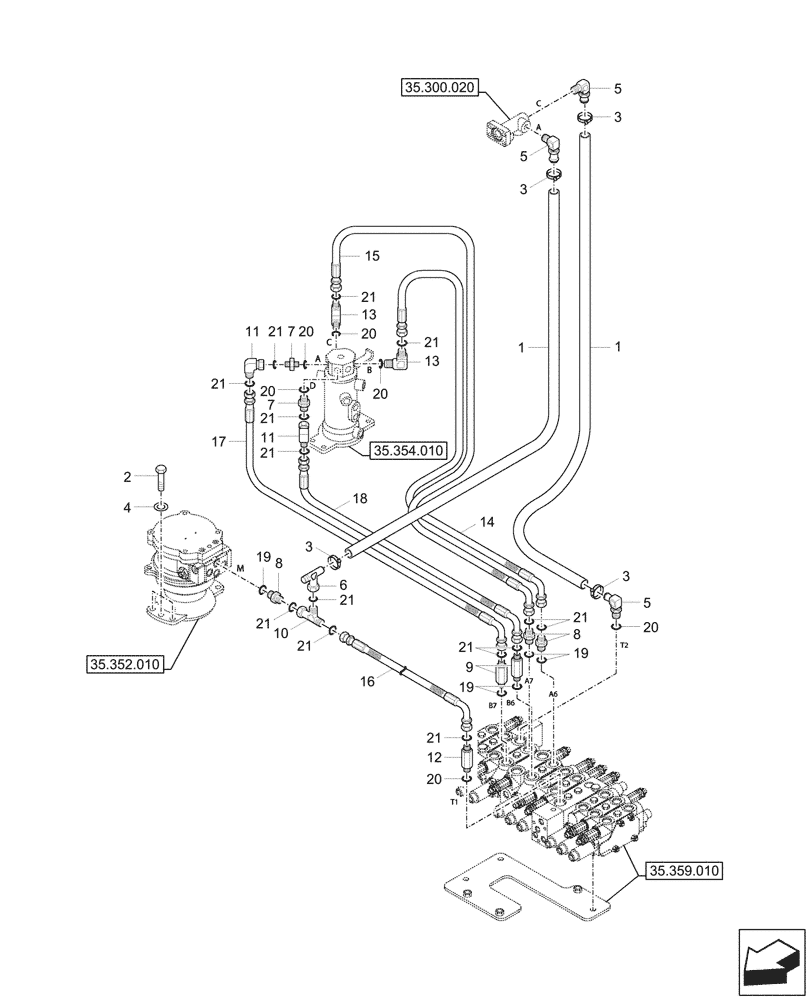

Запчасти Case CX33C (35.359.090) - CONTROL VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

34MK-10281

HOSE

2шт.

2

S017-140456

BOLT

6шт.

3

31MH-10850

CLAMP

4шт.

4

S441-140006

WASHER

6шт.

5

35MH-10670

ELBOW

3шт.

6

33MH-10310

TEE

Swivel

1шт.

7

X500-110003

HYD CONNECTOR,PF 1/2 x 13/16 - 16 UNF

2шт.

8

31MH-10710

HYD CONNECTOR,PF 3/8 x 13/16 UNF

3шт.

9

X511-106534

HYD CONNECTOR,PF 3/8 x 13/16 - 16 UNF

Long

2шт.

10

X840-535353

TEE,3/16 - 16 UNF

Swivel

1шт.

11

X850-535300

ELBOW,3/16 - 16 UNF

Swivel

2шт.

12

31N8-40180

HYD CONNECTOR,PF 1/2 x 13/16 - 16 UNF

Long

1шт.

13

X520-110003

ELBOW

2шт.

14

P930-085014

HYDRAULIC HOSE,13/16 - 16 UNF x 700mm

1шт.

15

P930-085013

HYDRAULIC HOSE,13/16 - 16 UNF x 650mm

1шт.

16

P930-082012

HYDRAULIC HOSE,13/16 - 16 UNF x 600mm

1шт.

17

P930-085016

HYDRAULIC HOSE,13/16 - 16 UNF x 800mm

1шт.

18

P930-085015

HYDRAULIC HOSE,13/16 - 16 UNF x 750mm

1шт.

19

S631-014004

O-RING

5шт.

20

S631-018004

O-RING

6шт.

21

S621-014001

O-RING

14шт.
