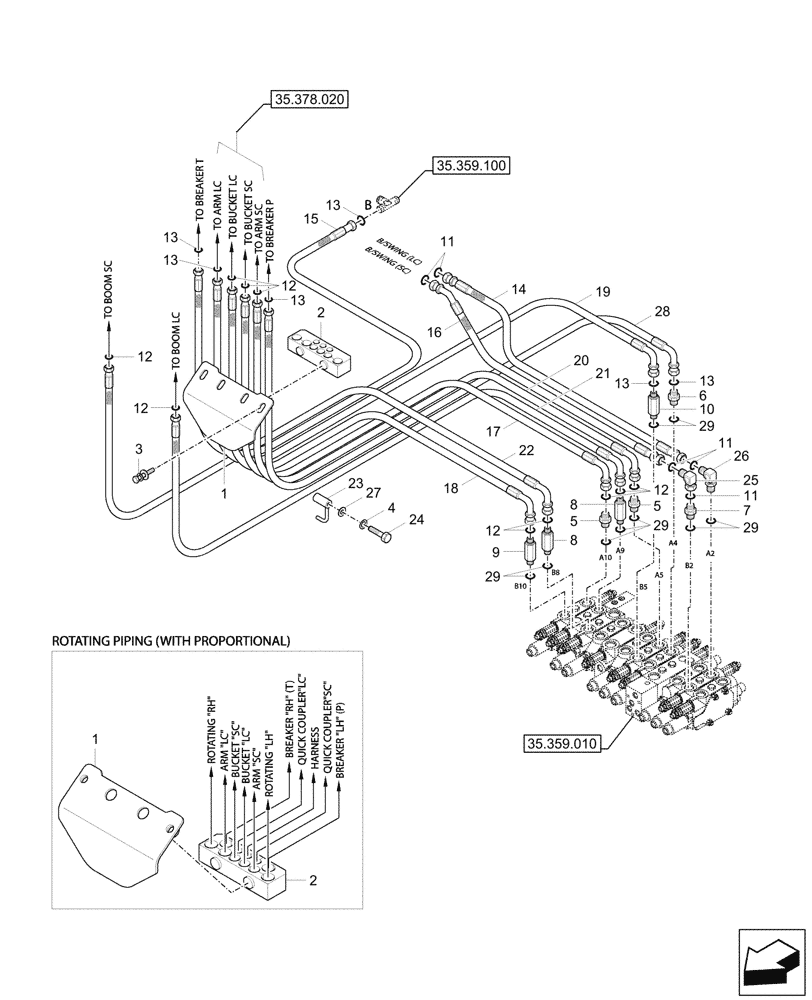

Запчасти Case CX33C (35.359.080) - CONTROL VALVE, BOOM, LINES (35) - HYDRAULIC SYSTEMS

1

31MH-10281GG

Swing

1шт.

Without Flow Circuit, Var. 405028, 405030, 405032, 405034

1шт.

1

33MH-10280

Swing

1шт.

With Hammer Joystick and Flow Circuit, Var. 405033, 405035

1шт.

2

31MH-10670

CLAMP

1шт.

Without Quick Coupler, Var. 405040

1шт.

2

31MH-10292

CLAMP

1шт.

With Quick Coupler, Var. 405037, 405039

1шт.

2

33MH-10301

CLAMP

1шт.

With Hammer Joystick and Flow Circuit, Var. 405033, 405035

1шт.

3

S037-102526

BOLT,M10 x 1.5 x 25mm

2шт.

Without Flow Circuit, Var. 405028, 405030, 405032, 405034

1шт.

3

S037-103056

BOLT,M10 x 1.5 x 30mm

2шт.

With Hammer Joystick and Flow Circuit, Var. 405033, 405035

1шт.

4

S411-120006

WASHER

2шт.

5

X500-110002

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

2шт.

6

31MH-10710

HYD CONNECTOR,PF 3/8 x 13/16 UNF

1шт.

7

X500-110013

HYD CONNECTOR,PF 3/8 x 9/16 - 16 UNF

1шт.

8

31N8-40140

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

Long

2шт.

9

31N8-40150

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

Long

1шт.

10

X511-106534

HYD CONNECTOR,PF 3/8 x 13/16 - 16 UNF

Long

1шт.

11

S621-011001

O-RING,9/16 - 18 UNF

5шт.

12

S621-012001

O-RING

10шт.

13

S621-014001

O-RING

6шт.

14

P910-045031

HYDRAULIC HOSE

1шт.

15

P910-085028

HYDRAULIC HOSE

1шт.

16

P920-045036

HYDRAULIC HOSE

1шт.

17

P930-065052

HYDRAULIC HOSE

1шт.

18

P930-065054

HYDRAULIC HOSE

1шт.

19

P930-085059

HYDRAULIC HOSE

1шт.

20

P930-065057

HYDRAULIC HOSE

1шт.

21

31MH-10470

HYDRAULIC HOSE

1шт.

22

31MH-10480

HYDRAULIC HOSE

1шт.

23

31MH-10520

GUIDE

2шт.

24

S017-120606

BOLT,M12 x 1.75 x 60mm

2шт.

25

X850-515100

90 ELBOW

Swivel

1шт.

26

X520-110012

ELBOW,PF 3/8 x 9/16 - 18 UNF

1шт.

27

S403-12200B

WASHER

2шт.

28

P930-085057

HYDRAULIC HOSE

1шт.

29

S631-014004

O-RING

9шт.
