(35.359.010) - VAR - 405028, 405030, 405032, 405033, 405034, 405035 - CONTROL VALVE

Запчасти Case CX33C (35.359.010) - VAR - 405028, 405030, 405032, 405033, 405034, 405035 - CONTROL VALVE (35) - HYDRAULIC SYSTEMS

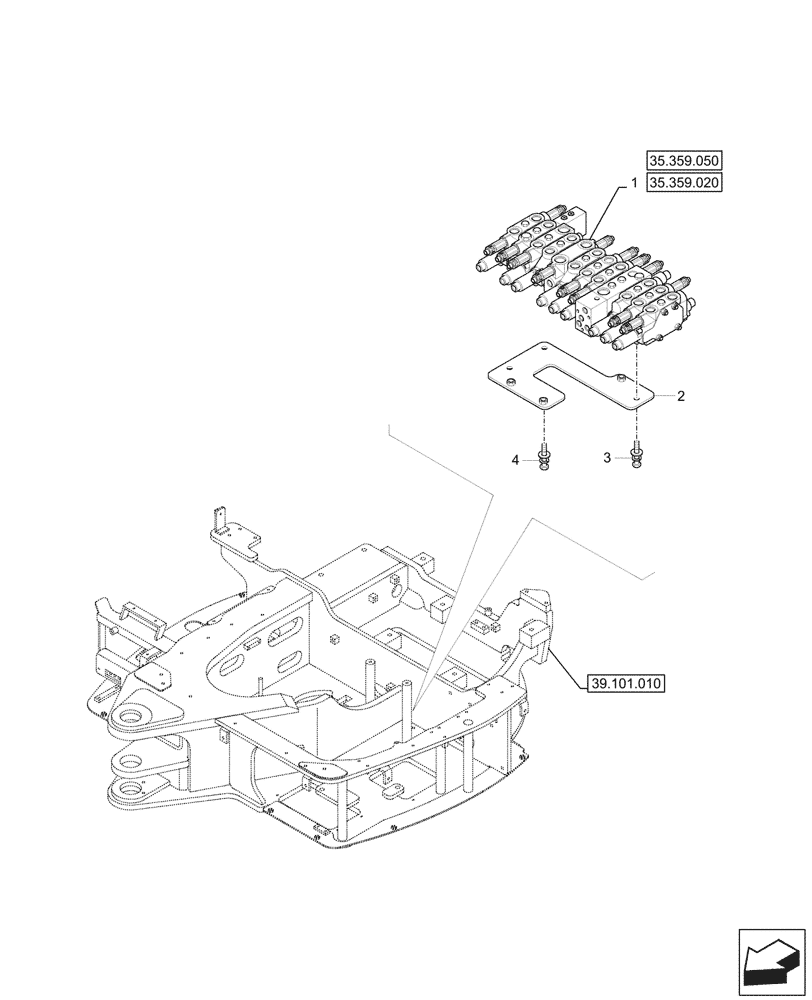

Схема запчастей Case CX33C - (35.359.010) - VAR - 405028, 405030, 405032, 405033, 405034, 405035 - CONTROL VALVE (35) - HYDRAULIC SYSTEMS
35.359.020
2
3
1
4
39.101.010
35.359.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

35MH-10111

HYDRAULIC VALVE

1шт.

Without Flow Circuit, Var. 405028, 405030, 405032, 405034

1шт.

See Figure 35.359.020, 35.359.030, 35.359.040

1шт.

1

33MH-10111

HYDRAULIC VALVE

1шт.

With Flow Circuit, Var. 405033, 405035

1шт.

See Figure 35.359.050, 35.359.060, 35.359.070

1шт.

2

35MH-10600CG

BRACKET

Gray

1шт.

Without Flow Circuit, Var. 405028, 405030, 405032, 405034

1шт.

2

34MK-10600CG

BRACKET

Gray

1шт.

With Flow Circuit, Var. 405033, 405035

1шт.

3

S037-102056

BOLT,M10 x 1.5 x 20mm

3шт.

4

S037-103056

BOLT,M10 x 1.5 x 30mm

3шт.
