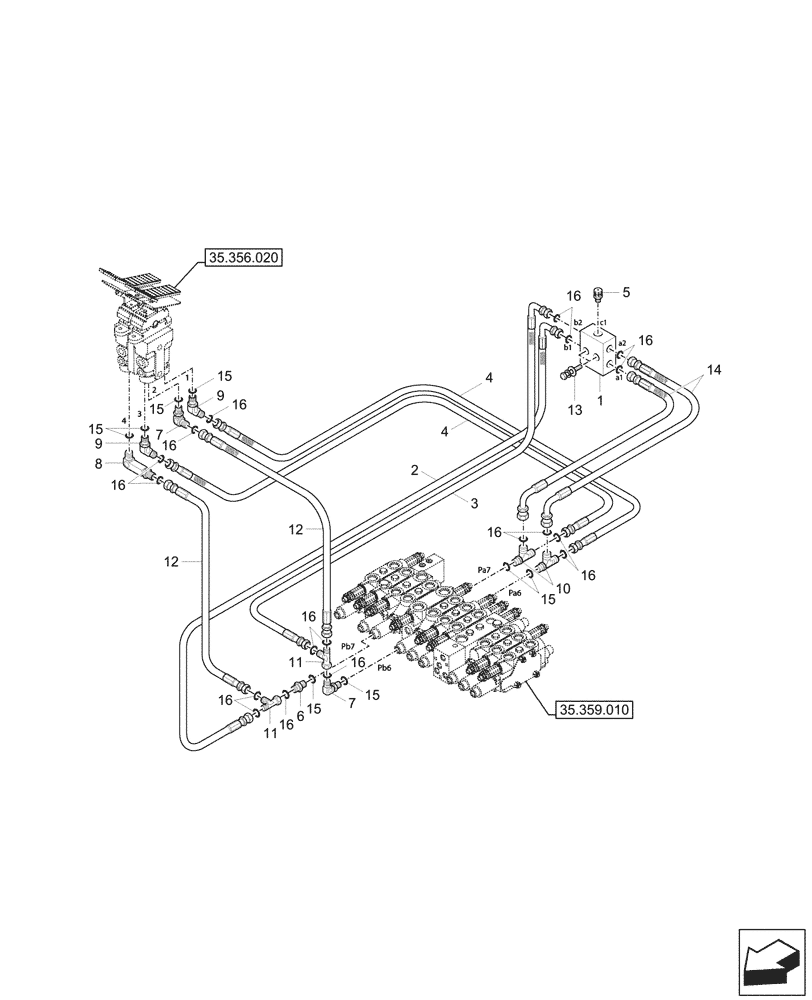

Запчасти Case CX33C (35.357.050) - VAR - 747453 - PILOT CONTROLS, PILOT VALVE (35) - HYDRAULIC SYSTEMS

1

32MJ-20410

HYDRAULIC VALVE

Shuttle

1шт.

2

X420-042006

HYDRAULIC HOSE

1шт.

3

X420-042007

HYDRAULIC HOSE,9/16 - 18 UNF x 350mm

1шт.

4

X420-042016

HYDRAULIC HOSE,9/16 - 18 UNF x 800mm

2шт.

5

31E5-40540

SWITCH

Pressure

1шт.

6

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

7

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

8

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

9

X530-110001

45 ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

10

X820-045151

TEE,PF 1/4 x 9/16 - 18 UNF x 9/16 - 18 UNF

2шт.

11

X840-515151

TEE,9/16 - 18 UNF

Swivel

2шт.

12

X400-042005

HYDRAULIC HOSE,9/16 - 18 UNF x 250mm

1шт.

13

S035-084526

BOLT,M8 x 1.25 x 45mm

2шт.

14

X400-042013

HYDRAULIC HOSE

2шт.

15

S631-011004

O-RING,PF 1/4

8шт.

16

S621-011001

O-RING,9/16 - 18 UNF

18шт.
