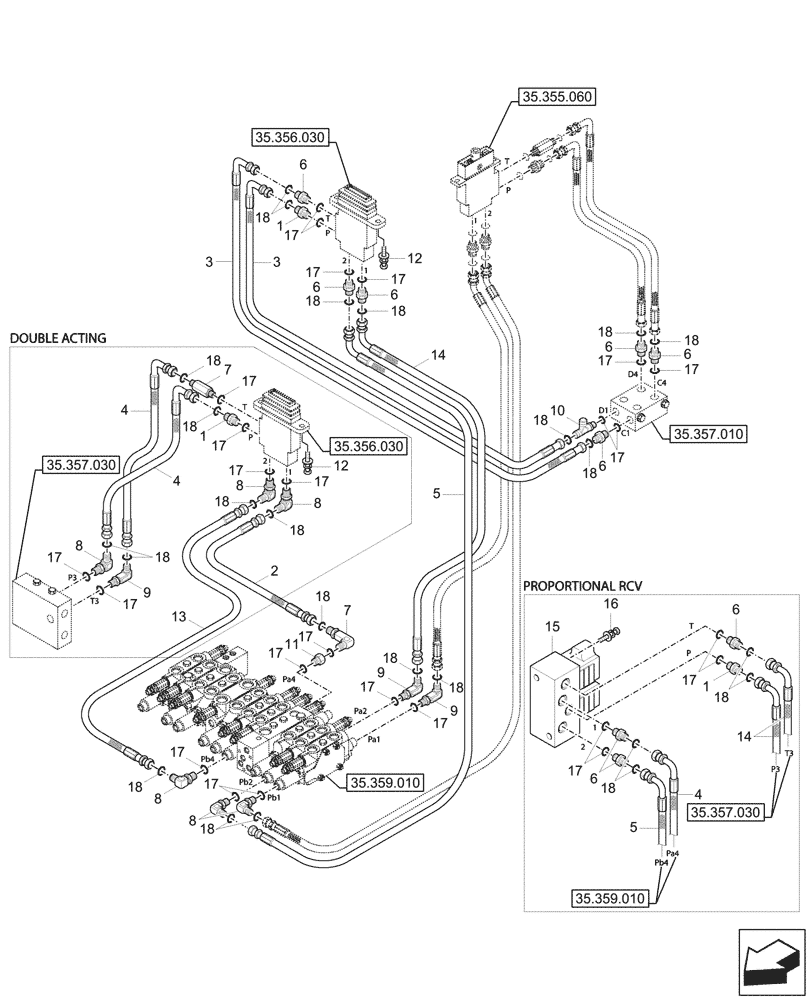

Запчасти Case CX33C (35.357.020) - PILOT CONTROLS, DOZER (35) - HYDRAULIC SYSTEMS

1

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

1

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

1

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

2

X400-042011

HYDRAULIC HOSE,9/16 - 18 UNF x 550mm

1шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

3

X420-042007

HYDRAULIC HOSE,9/16 - 18 UNF x 350mm

2шт.

4

X420-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

2шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

4

X420-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

1шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

5

X420-042020

HYDRAULIC HOSE,9/16 - 18 UNF x 1000mm

1шт.

5

X420-042020

HYDRAULIC HOSE,9/16 - 18 UNF x 1000mm

1шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

6

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

6шт.

6

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

3шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

7

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

7

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

8

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

3шт.

8

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

3шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

9

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

Long

3шт.

10

X820-045151

TEE,PF 1/4 x 9/16 - 18 UNF x 9/16 - 18 UNF

1шт.

11

31E9-22120

HYD CONNECTOR,PF 1/4 x PF 1/4

1шт.

12

S035-082526

BOLT,M8 x 1.25 x 25mm

2шт.

12

S035-082526

BOLT,M8 x 1.25 x 25mm

2шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

13

X400-042005

HYDRAULIC HOSE,9/16 - 18 UNF x 250mm

1шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

14

X420-042018

HYDRAULIC HOSE,9/16 - 18 UNF x 900mm

1шт.

14

X420-042018

HYDRAULIC HOSE,9/16 - 18 UNF x 900mm

2шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

15

32MJ-20050

HYDRAULIC VALVE

2 EPPR

1шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

16

S035-086526

BOLT,M8 x 1.25 x 65mm

1шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

17

S631-011004

O-RING,PF 1/4

15шт.

17

S631-011004

O-RING,PF 1/4

4шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

17

S631-011004

O-RING,PF 1/4

6шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

18

S621-011001

O-RING,9/16 - 18 UNF

14шт.

18

S621-011001

O-RING,9/16 - 18 UNF

4шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

18

S621-011001

O-RING,9/16 - 18 UNF

6шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.
