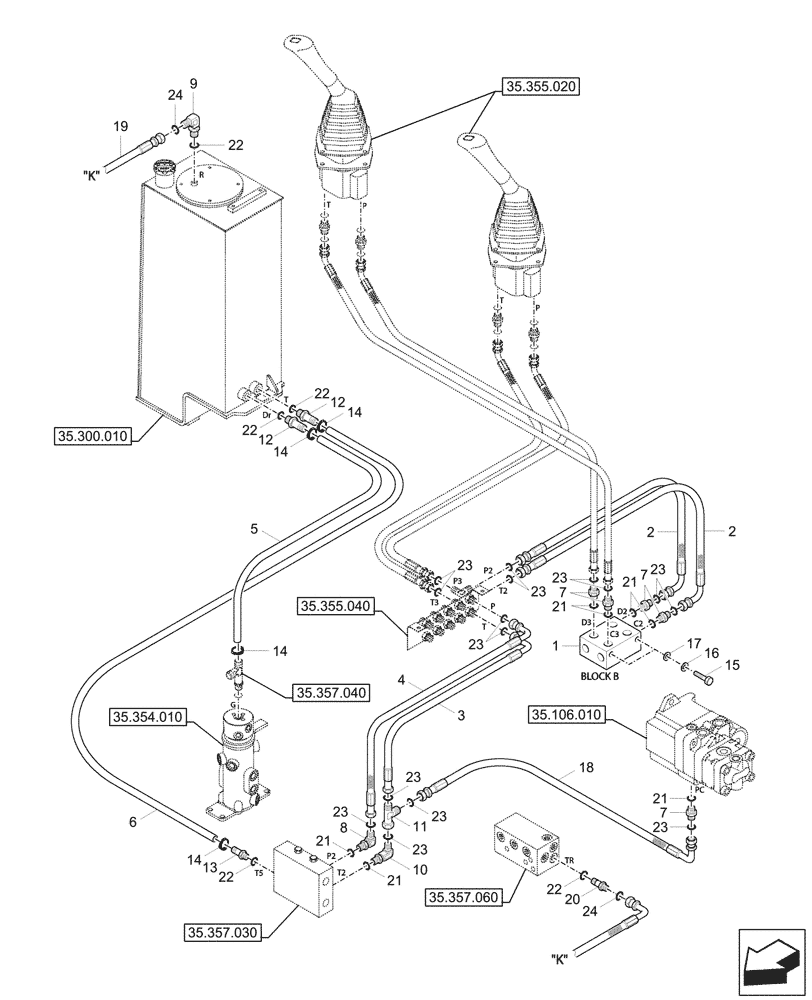

Запчасти Case CX33C (35.357.010) - PILOT CONTROLS, JOYSTICK (35) - HYDRAULIC SYSTEMS

1

31MH-20112

BLOCK

1шт.

2

X420-042017

HYDRAULIC HOSE,9/16 - 18 UNF x 850mm

2шт.

3

X420-042009

HYDRAULIC HOSE,9/16 - 18 UNF x 450mm

1шт.

4

X420-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

1шт.

5

P760-023030

HOSE,11.5mm ID x 19.7mm OD x 300mm

1шт.

6

P760-023130

HOSE,11.5mm ID x 19.7mm OD x 1300mm

1шт.

7

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

5шт.

8

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

9

X520-110002

ELBOW,PF 3/8 x 11/16 - 16 UNF

1шт.

10

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

11

X840-515151

TEE,9/16 - 18 UNF

Swivel

1шт.

12

31MH-20161

HYD CONNECTOR

2шт.

13

31MH-20171

HYD CONNECTOR

1шт.

14

31MH-10830

CLAMP

4шт.

15

S015-080806

BOLT,M8 x 1.25 x 80mm

2шт.

16

S411-080006

WASHER

2шт.

17

S403-08200B

WASHER

2шт.

18

X420-042024

HYDRAULIC HOSE

1шт.

19

P933-062053

HYDRAULIC HOSE,11/16 - 16 UNF x 2650mm

1шт.

20

X511-106523

HYD CONNECTOR

Long

1шт.

21

S631-011004

O-RING,PF 1/4

7шт.

22

S631-014004

O-RING

5шт.

23

S621-011001

O-RING,9/16 - 18 UNF

15шт.

24

S621-012001

O-RING

2шт.
