Запчасти Case CX33C (35.356.030) - REMOTE CONTROL VALVE, BOOM SWING, COMPONENTS (35) - HYDRAULIC SYSTEMS

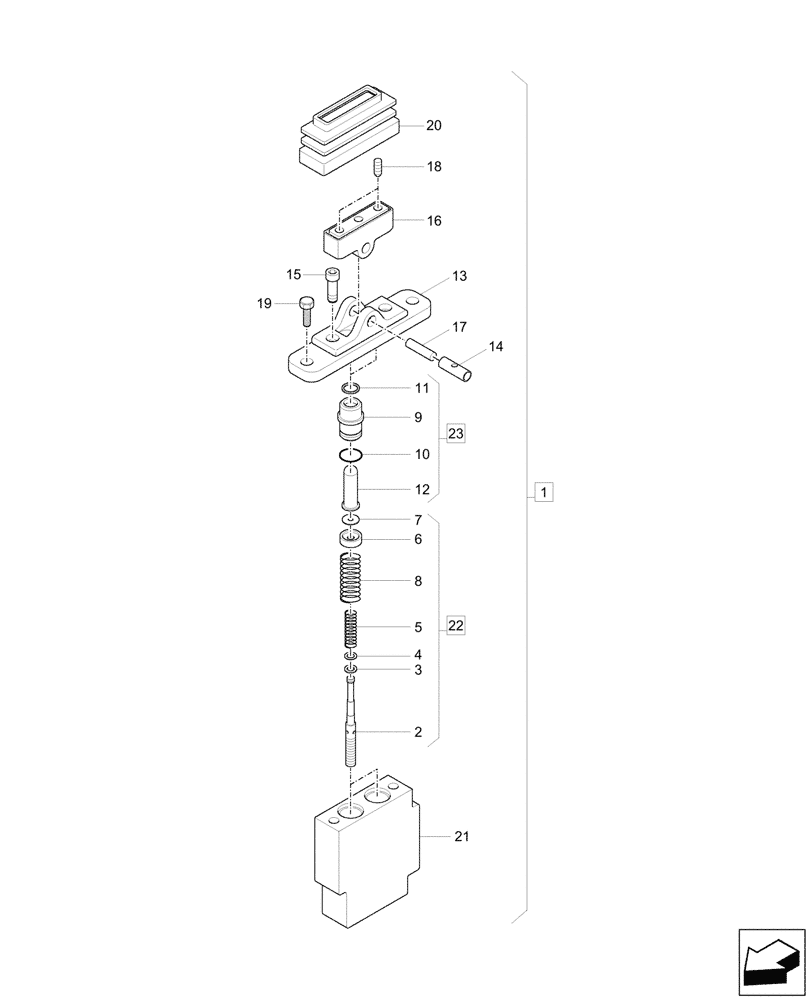

Схема запчастей Case CX33C - (35.356.030) - REMOTE CONTROL VALVE, BOOM SWING, COMPONENTS (35) - HYDRAULIC SYSTEMS
9
12
19
20
13
16
11
8
15
23
3
7
14
21
10
22
6
18
1
5
4
17
2

Артикул

Название

Примечание

Количество

1

31MH-20050

PEDAL

ASSY, Incl 13 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

Spool, Incl in 22

1шт.

3

NSS

NOT SOLD SEPARAT

Seat, Incl in 22

1шт.

4

NSS

NOT SOLD SEPARAT

Shim, Incl in 22

1шт.

5

NSS

NOT SOLD SEPARAT

Spring, Incl in 22

1шт.

6

NSS

NOT SOLD SEPARAT

Seat, Incl in 22

1шт.

7

NSS

NOT SOLD SEPARAT

Stopper, Incl in 22

1шт.

8

NSS

NOT SOLD SEPARAT

Spring, Incl in 22

2шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 23

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 23

2шт.

11

NSS

NOT SOLD SEPARAT

Seal, Incl in 23

2шт.

12

NSS

NOT SOLD SEPARAT

Rod, Incl in 23

2шт.

13

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

2шт.

16

XKAY-00703

CAM

1шт.

17

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

2шт.

18

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

19

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

3шт.

20

XKAY-00699

BELLOWS

1шт.

21

XKAY-00716

BODY

1шт.

22

XKAY-00715

KIT

Spool, ASSY, Incl 2 - 8

2шт.

23

XKAY-00709

PLUG

ASSY, Incl 9 - 12

1шт.

Выбрано товаров: 23
