Запчасти Case CX33C (35.356.020) - FOOT CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

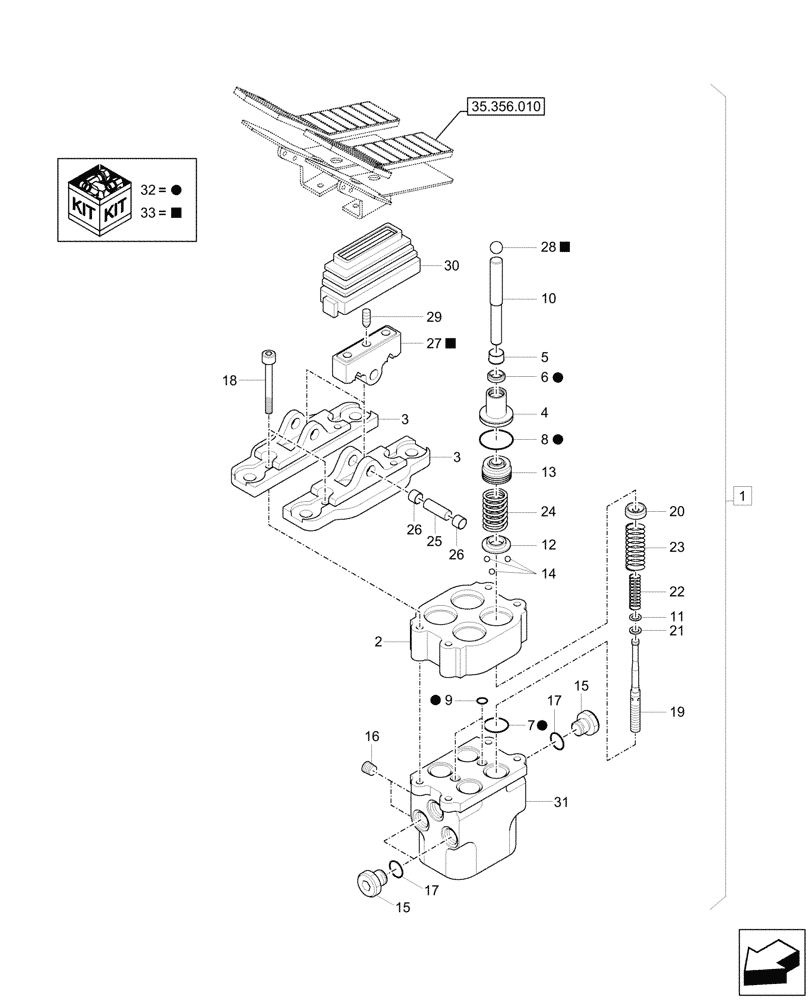

Схема запчастей Case CX33C - (35.356.020) - FOOT CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.356.010
20
9
7
15
10
16
31
33
33
14
32
27
22
12
25
11
32
33
32
3
2
18
8
4
5
15
6
19
33
32
24
17
3
29
32
13
21
28
32
26
17
1
30
23
26

Артикул

Название

Примечание

Количество

1

31MH-20030

PEDAL

Travel, ASSY, Incl 2 - 31

1шт.

2

NSS

NOT SOLD SEPARAT

Casing, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

2шт.

4

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

4шт.

5

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

4шт.

6

XJBN-01083

PACKING

4шт.

7

XJBN-01084

O-RING

4шт.

8

XJBN-01085

O-RING

4шт.

9

XJBN-00044

O-RING

2шт.

10

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

4шт.

11

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

4шт.

12

NSS

NOT SOLD SEPARAT

Seat, Incl in 1

4шт.

13

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

4шт.

14

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

12шт.

15

XJBN-00265

PLUG

3шт.

16

XJBN-00032

PLUG

2шт.

17

XJBN-00045

O-RING

3шт.

18

XJBN-01091

SCREW

4шт.

19

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

4шт.

20

NSS

NOT SOLD SEPARAT

Seat, Incl in 1

4шт.

21

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

4шт.

22

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

4шт.

23

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

4шт.

24

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

4шт.

25

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

2шт.

26

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

4шт.

27

NSS

NOT SOLD SEPARAT

Cam, Incl in 1

2шт.

28

XJBN-01101

BALL

4шт.

29

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

30

XJBN-01103

BELLOWS

2шт.

31

NSS

NOT SOLD SEPARAT

Casing, Incl in 1

1шт.

32

XJBN-01104

SEAL KIT

ASSY, Incl 6 - 9

1шт.

33

XJBN-01105

KIT

ASSY, Incl 27, 28

1шт.

Выбрано товаров: 33
