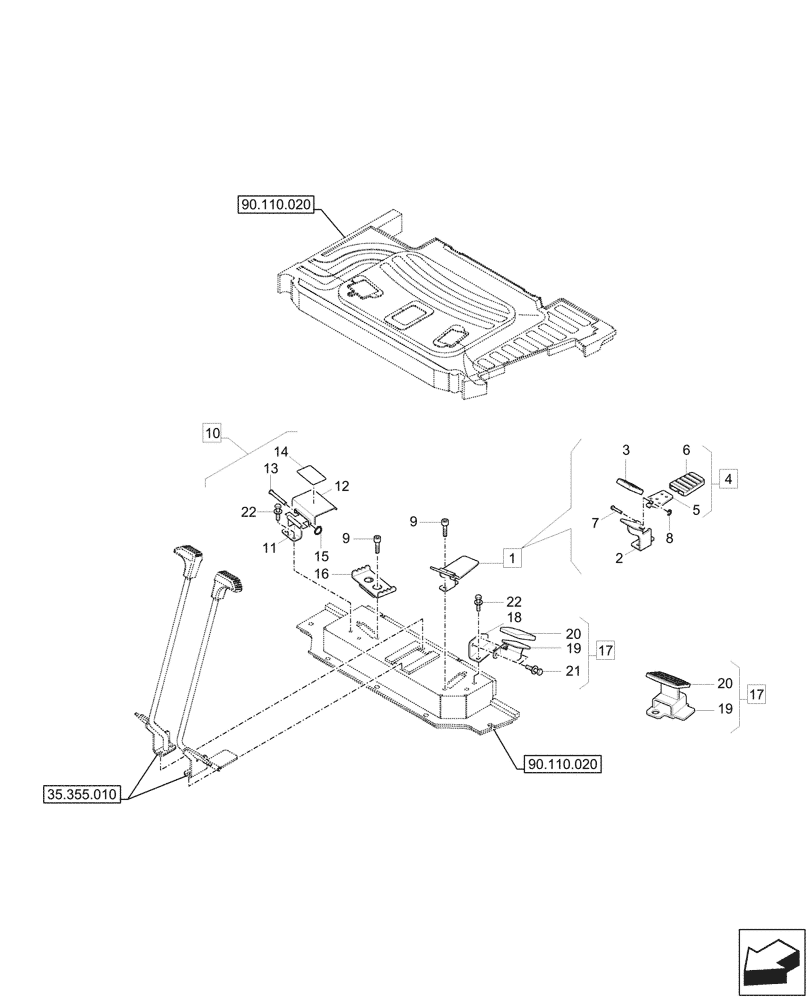

Запчасти Case CX33C (35.356.010) - PEDAL, CONTROL (35) - HYDRAULIC SYSTEMS

1

71M9-23471CG

PEDAL

LH, ASSY, Incl 2 - 4, 7, 8

1шт.

2

71M9-23491CG

PEDAL

Bracket, LH

1шт.

3

71M9-23590

PEDAL

Rubber, LH

1шт.

4

71M9-23611CG

PEDAL

LH, Low, ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Pedal, Low, LH, Incl in 4

1шт.

6

73M8-10440

ANTI-SKID STRIP

1шт.

7

73M8-10450

SHAFT

1шт.

8

P560-060002

RING

1шт.

9

S109-080156

BOLT

4шт.

10

71MK-00660CG

COVER

Pedal, RH, ASSY, Incl 11 - 15

1шт.

11

71MK-00830CG

BRACKET

1шт.

12

71MK-00670CG

COVER

1шт.

13

71MH-00700

SHAFT

1шт.

14

71MH-00710

TAPE

1шт.

15

P560-070002

RING

1шт.

16

71MK-00720CG

PLATE

1шт.

17

71MK-00820CG

FOOTREST

LH, ASSY, Incl 18 - 21

1шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

17

71MK-20150CG

FOOTREST

LH, ASSY, Incl 19, 20

1шт.

Hammer Joystick, Var. 405032, 405033, 405034, 405035

1шт.

18

71MK-00870

PLATE

1шт.

19

71MK-00880

PLATE

1шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

19

71MK-20160CG

FOOTREST

LH

1шт.

Hammer Joystick, Var. 405032, 405033, 405034, 405035

1шт.

20

FAC0600400

COVER

1шт.

21

S035-082026

BOLT,M8 x 1.25 x 20mm

2шт.

22

S035-082056

BOLT

4шт.
