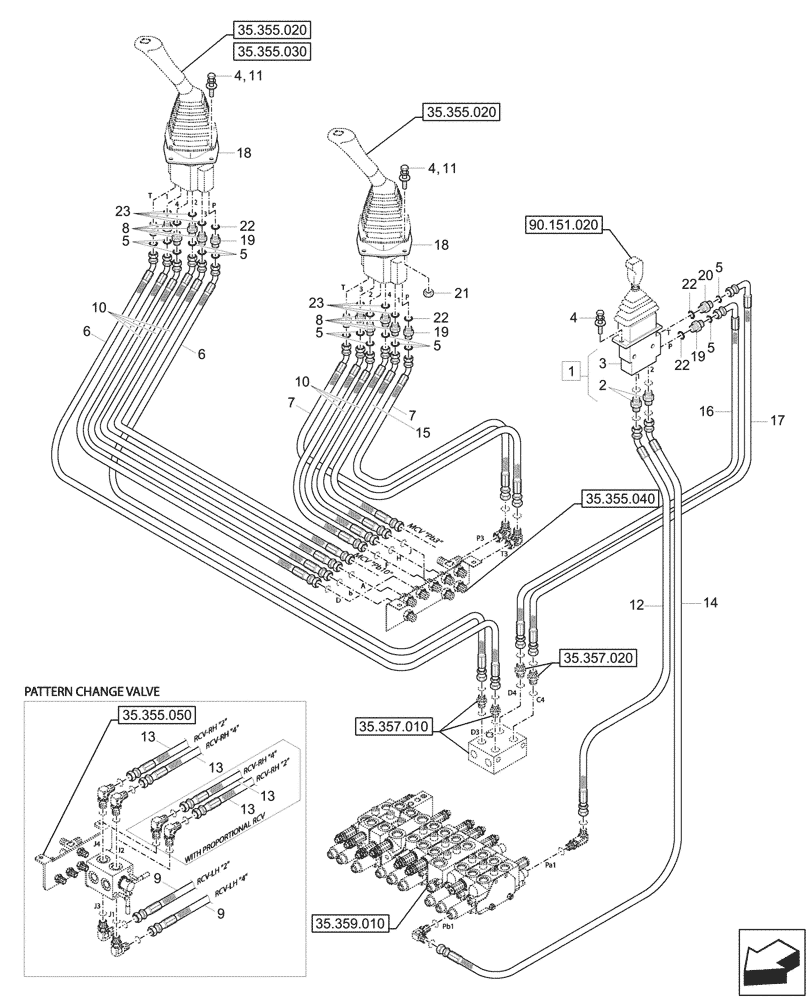

Запчасти Case CX33C (35.355.060) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
31MH-30091
LEVER
Dozer, ASSY, Incl 2, 3
1шт.
2
X500-110001
HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF
2шт.
3
NSS
NOT SOLD SEPARAT
Lever, Incl in 1
1шт.
4
S035-061556
BOLT
8шт.
Hammer Pedal and without Flow Circuit, Var. 405028, 405030
1шт.
4
S035-061556
BOLT
2шт.
6
X410-042010
HYDRAULIC HOSE,9/16 - 18 UNF x 500mm
2шт.
7
X410-042023
HYDRAULIC HOSE,9/16 - 18 UNF x 1150mm
2шт.
8
X500-110013
HYD CONNECTOR,PF 3/8 x 9/16 - 16 UNF
10шт.
Hammer Joystick and without Flow Circuit, Var. 405032, 405034
1шт.
Hammer Joystick and with Flow Circuit, Var. 405033, 405035
1шт.
9
X410-042026
HYDRAULIC HOSE,9/16 - 18 UNF x 1300mm
2шт.
With Pattern Change, Var. 405049
1шт.
10
X410-042027
HYDRAULIC HOSE,9/16 - 18 UNF x 1350mm
4шт.
Without Pattern Change, Var. 405050
1шт.
10
X410-042027
HYDRAULIC HOSE,9/16 - 18 UNF x 1350mm
3шт.
11
S035-062056
BOLT
6шт.
Hammer Joystick and without Flow Circuit, Var. 405032, 405034
1шт.
Hammer Joystick and with Flow Circuit, Var. 405033, 405035
1шт.
12
X410-042029
HYDRAULIC HOSE
1шт.
13
X410-042030
HYDRAULIC HOSE,9/16 - 18 UNF x 1500mm
2шт.
With Pattern Change, Var. 405049
1шт.
14
X410-042032
HYDRAULIC HOSE,9/16 - 18 UNF x 1600mm
1шт.
15
X410-042033
HYDRAULIC HOSE
1шт.
16
X420-042011
HYDRAULIC HOSE,9/16 - 18 UNF x 550mm
1шт.
17
X420-042012
HYDRAULIC HOSE,9/16 - 18 UNF x 600mm
1шт.
Hammer Pedal and without Flow Circuit, Var. 405028, 405030
1шт.
Hammer Joystick and without Flow Circuit, Var. 405032, 405034
1шт.
Hammer Joystick and with Flow Circuit, Var. 405033, 405035
1шт.
20
X500-110001
HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF
1шт.
21
S205-06100B
NUT,M8 x 1mm
2шт.
Hammer Pedal and without Flow Circuit, Var. 405028, 405030
1шт.
22
S631-011004
O-RING,PF 1/4
4шт.
23
S631-014004
O-RING
10шт.
Выбрано товаров: 38
