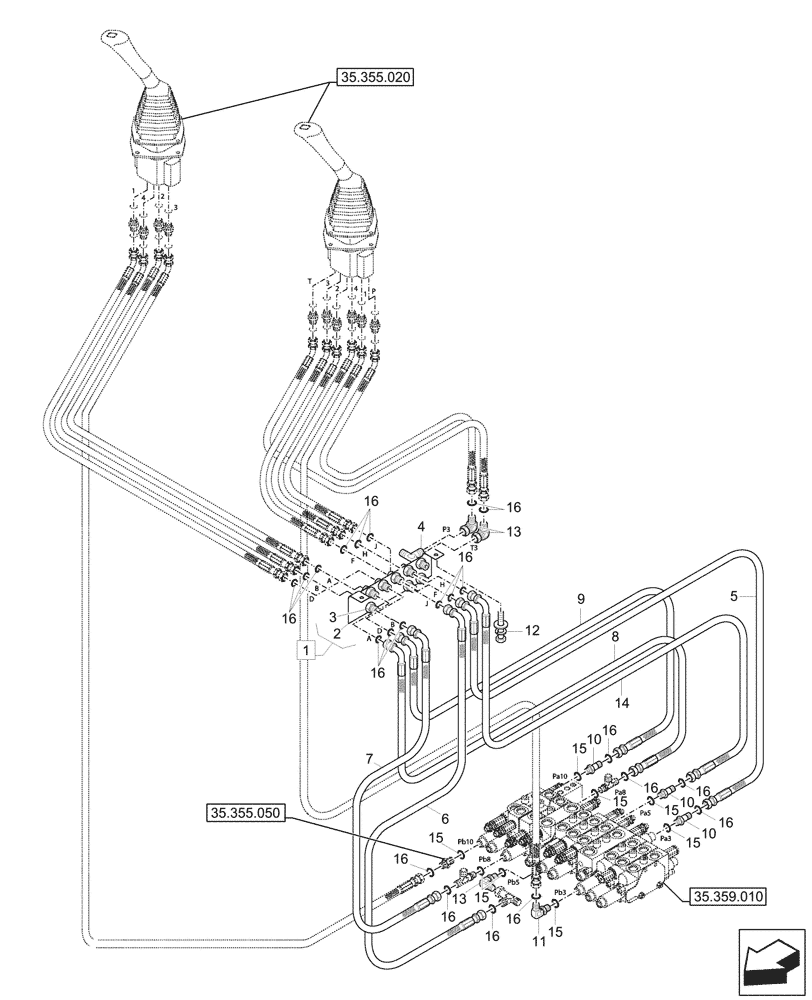

Запчасти Case CX33C (35.355.040) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

31MH-20182

TERMINAL

ASSY, Incl 2 - 4

1шт.

Without Pattern Change, Var. 405050

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

3

X540-120001

HYD CONNECTOR

6шт.

4

31MH-20200

TEE

2шт.

5

X420-042013

HYDRAULIC HOSE,9/16 - 18 UNF x 650mm

1шт.

6

X420-042008

HYDRAULIC HOSE

1шт.

Without Pattern Change, Var. 405050

1шт.

7

X420-042014

HYDRAULIC HOSE

1шт.

Without Pattern Change, Var. 405050

1шт.

8

X420-042020

HYDRAULIC HOSE,9/16 - 18 UNF x 1000mm

1шт.

Without Pattern Change, Var. 405050

1шт.

9

X420-042023

HYDRAULIC HOSE

1шт.

10

X511-104515

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

2шт.

10

X511-104515

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

With Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

With Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

11

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

12

S037-102026

BOLT,M10 x 1.5 x 20mm

2шт.

13

X850-515100

90 ELBOW

Swivel

3шт.

Without Pattern Change, Var. 405050

1шт.

14

X420-042015

HYDRAULIC HOSE,9/16 - 18 UNF x 750mm

1шт.

Without Pattern Change, Var. 405050

1шт.

15

S631-011004

O-RING,PF 1/4

8шт.

16

S621-011001

O-RING,9/16 - 18 UNF

22шт.
