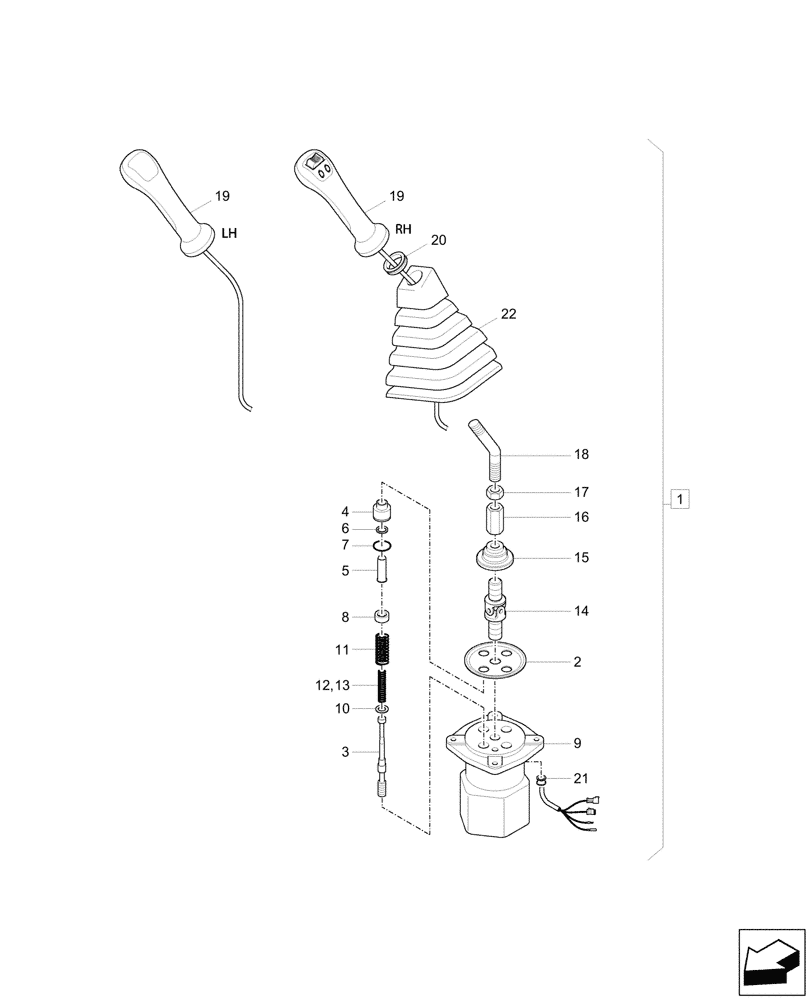

Запчасти Case CX33C (35.355.030) - VAR - 405032, 405033, 405034, 405035 - JOYSTICK, PROPORTIONAL VALVE, REMOTE CONTROL (35) - HYDRAULIC SYSTEMS

1

31MK-21241

LEVER

RH, ASSY, Incl 2 - 22

1шт.

1

31MK-21251

LEVER

LH, ASSY, Incl 2 - 22

1шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

1

31MK-21231

LEVER

LH, ASSY, Incl 2 - 22

1шт.

Hammer Joystick and with Flow Circuit, Var. 405033, 405035

1шт.

2

XJBN-01813

PLATE

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

4шт.

4

XJBN-01815

PLUG

4шт.

5

XJBN-01841

PUSH ROD

2шт.

Port 1, 3

1шт.

5

XJBN-01842

PUSH ROD

2шт.

Port 2, 4

1шт.

6

XJBN-01817

SEAL

4шт.

7

XJBN-00282

O-RING

4шт.

8

XJBN-01819

SPRING SEAT

2шт.

Port 1, 3

1шт.

8

XJBN-01820

SPRING SEAT

2шт.

Port 2, 4

1шт.

9

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

10

XJBN-01821

WASHER

4шт.

11

XJBN-01822

SPRING

4шт.

12

XJBN-01823

SPRING

2шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

Port 1, 3

1шт.

12

XJBN-01843

2шт.

Hammer Joystick and with Flow Circuit, Var. 405033, 405035

1шт.

Port 1, 3

1шт.

13

XJBN-01824

SPRING

2шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

Port 2, 4

1шт.

13

XJBN-01844

2шт.

Hammer Joystick and with Flow Circuit, Var. 405033, 405035

1шт.

Port 2, 4

1шт.

14

XJBN-01825

JOINT

1шт.

15

XJBN-01826

PLATE

1шт.

16

XJBN-01827

NUT

1шт.

17

XJBN-01828

NUT

1шт.

18

XJBN-01829

LEVER

1шт.

19

50150116-9663CN

RH

1шт.

Hammer Joystick and with Flow Circuit, Var. 405033, 405035

1шт.

19

XJBN-01920

HANDLE

LH

1шт.

20

XJBN-01831

PIN

1шт.

21

XJBN-01832

BUSHING

1шт.

22

XJBN-01833

BELLOWS

1шт.
