Запчасти Case CX33C (35.353.010) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

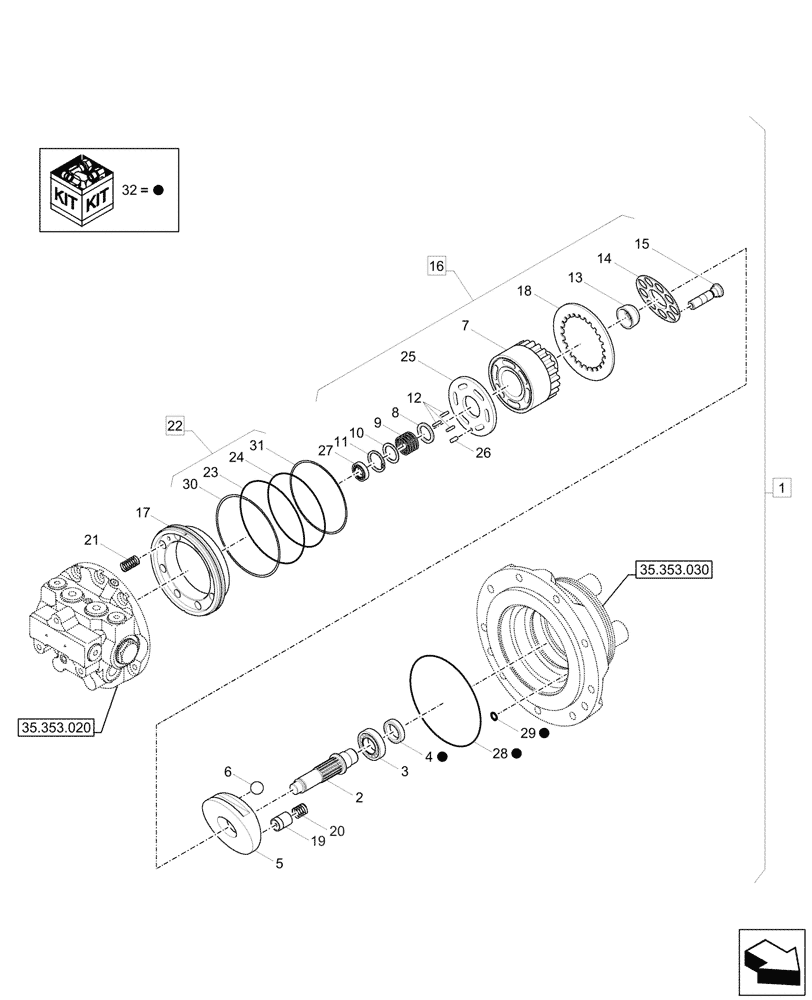

Схема запчастей Case CX33C - (35.353.010) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.353.020
29
30
20
3
32
26
14
10
23
2
17
21
18
32
13
32
8
12
28
32
5
6
4
27
25
1
32
15
16
7
19
11
31
24
22
9
35.353.030

Артикул

Название

Примечание

Количество

1

33MH-41010

MOTOR-PUMP

Travel Motor, ASSY, Incl 2 - 6, 16 - 22, 25 - 29

1шт.

See Also Figure 35.353.020, 35.353.030

1шт.

2

XJBV-00103

SHAFT

1шт.

3

XJBV-00104

BALL BEARING

1шт.

4

XJBV-00062

SEAL

1шт.

5

XJBV-00105

PLATE

1шт.

6

XJBV-00106

BALL

2шт.

7

NSS

NOT SOLD SEPARAT

Cylinder Block, Incl in 16

1шт.

8

NSS

NOT SOLD SEPARAT

Color, Incl in 16

1шт.

9

NSS

NOT SOLD SEPARAT

Spring, Incl in 16

1шт.

10

NSS

NOT SOLD SEPARAT

Washer, Incl in 16

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Incl in 16

1шт.

12

NSS

NOT SOLD SEPARAT

Pin, Incl in 16

3шт.

13

NSS

NOT SOLD SEPARAT

Holder, Incl in 16

1шт.

14

NSS

NOT SOLD SEPARAT

Plate, Incl in 16

1шт.

15

NSS

NOT SOLD SEPARAT

Piston, Incl in 16

9шт.

16

XJBV-00120

KIT

Cylinder Block, ASSY, Incl 7 - 15

1шт.

17

XJBV-00075

PISTON

Brake

1шт.

18

XJBV-00076

DISC

1шт.

19

XJBV-00107

PISTON

2шт.

20

XJBV-00108

SPRING

2шт.

21

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

6шт.

22

XJBV-00119

SEAL KIT

Piston Brake, ASSY, Incl 23, 24, 30, 31

1шт.

23

XJBV-00067

O-RING

1шт.

24

XJBV-00068

O-RING

1шт.

25

XJBV-00027

VALVE

1шт.

26

XJBV-00026

PIN

1шт.

27

XJBV-00025

BALL BEARING

1шт.

28

XJBV-00063

O-RING

1шт.

29

XJBV-00064

O-RING

4шт.

30

XJBV-00069

BACK-UP RING

1шт.

31

XJBV-00070

BACK-UP RING

1шт.

32

XJBV-00118

SEAL KIT

ASSY, Incl 4, 28, 29

1шт.

See Also Figure 35.353.020, 35.353.030

1шт.

Выбрано товаров: 34
