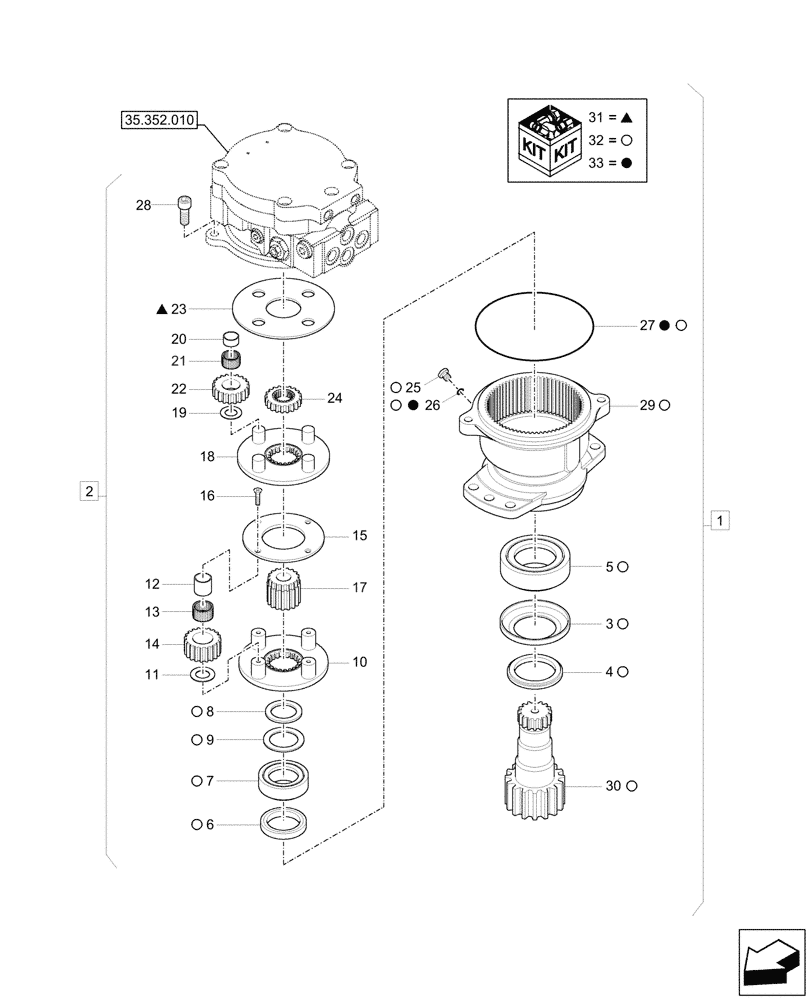

Запчасти Case CX33C (35.352.020) - MOTO-REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

31MH-11130

ELECTRIC MOTOR

ASSY, Incl 2

1шт.

2

NSS

NOT SOLD SEPARAT

Reduction Gear, Incl 3 - 30

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Collar, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

1шт.

6

XJBV-00126

SEAL

1шт.

7

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in 2

2шт.

9

NSS

NOT SOLD SEPARAT

Collar, Incl in 2

1шт.

10

XJBV-00044

HOLDER

1шт.

11

XJBV-00045

WASHER

4шт.

12

XJBV-00046

GEAR

4шт.

13

XJBV-00047

BEARING ASSY

4шт.

14

XJBV-00048

GEAR

4шт.

15

XJBV-00049

PLATE

1шт.

16

XJBV-00050

SCREW

4шт.

17

XJBV-00051

GEAR

1шт.

18

XJBV-00052

HOLDER

1шт.

19

XJBV-00053

WASHER

4шт.

20

XJBV-00054

GEAR

4шт.

21

XJBV-00055

BEARING ASSY

4шт.

22

XJBV-00056

GEAR

4шт.

23

NSS

NOT SOLD SEPARAT

Plate, Incl in 2

1шт.

24

XJBV-00057

GEAR

1шт.

25

NSS

NOT SOLD SEPARAT

Plug, Inclin 2

1шт.

26

XJBV-00058

O-RING

1шт.

27

XJBV-00059

O-RING

1шт.

28

XJBV-00001

BOLT

2шт.

29

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

30

NSS

NOT SOLD SEPARAT

Pinion Shaft, Incl in 2

1шт.

31

XJBV-00004

PLATE

Thrust, Kit, ASSY, Incl 23

1шт.

32

XJBV-00123

TOOL BOX

Housing, ASSY, Incl 3 - 9, 25 - 27, 29, 30

1шт.

33

XJBV-00002

SEAL KIT

ASSY, Incl 26, 27

1шт.
