(35.106.020) - HYDRAULIC PUMP, COMPONENTS

Запчасти Case CX33C (35.106.020) - HYDRAULIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

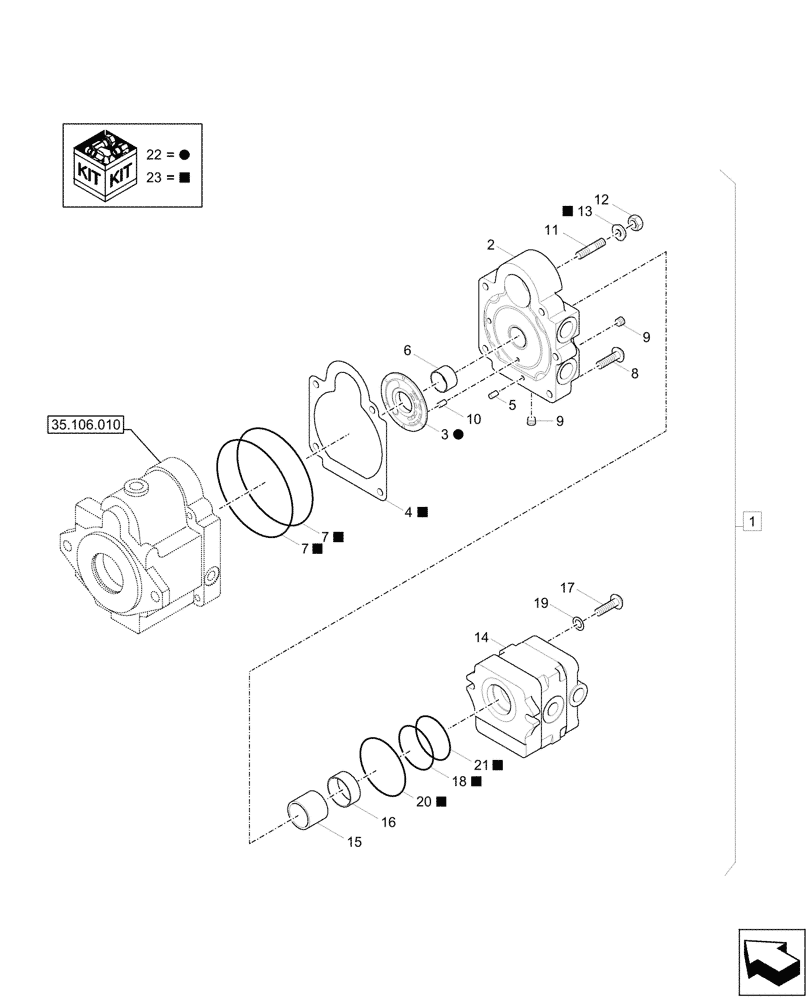

Схема запчастей Case CX33C - (35.106.020) - HYDRAULIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.106.010
3
22
4
18
6
21
23
23
17
23
2
5
16
23
7
8
20
23
22
10
22
1
19
23
14
13
23
9
12
15
7
11
9
23
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31MH-10030

PUMP

ASSY, Incl 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Packing, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Needle, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

8

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

5шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

7шт.

10

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

14

XJDK-00214

GEAR

1шт.

15

NSS

NOT SOLD SEPARAT

Coupling, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Collar, Incl 1

1шт.

17

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

2шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

22

XJDK-00126

SEAL KIT

ASSY, Incl 4, 7, 13, 18, 20, 21

1шт.

23

XJDK-00125

KIT

Cylinder Barrel, ASSY, Incl 3

1шт.
