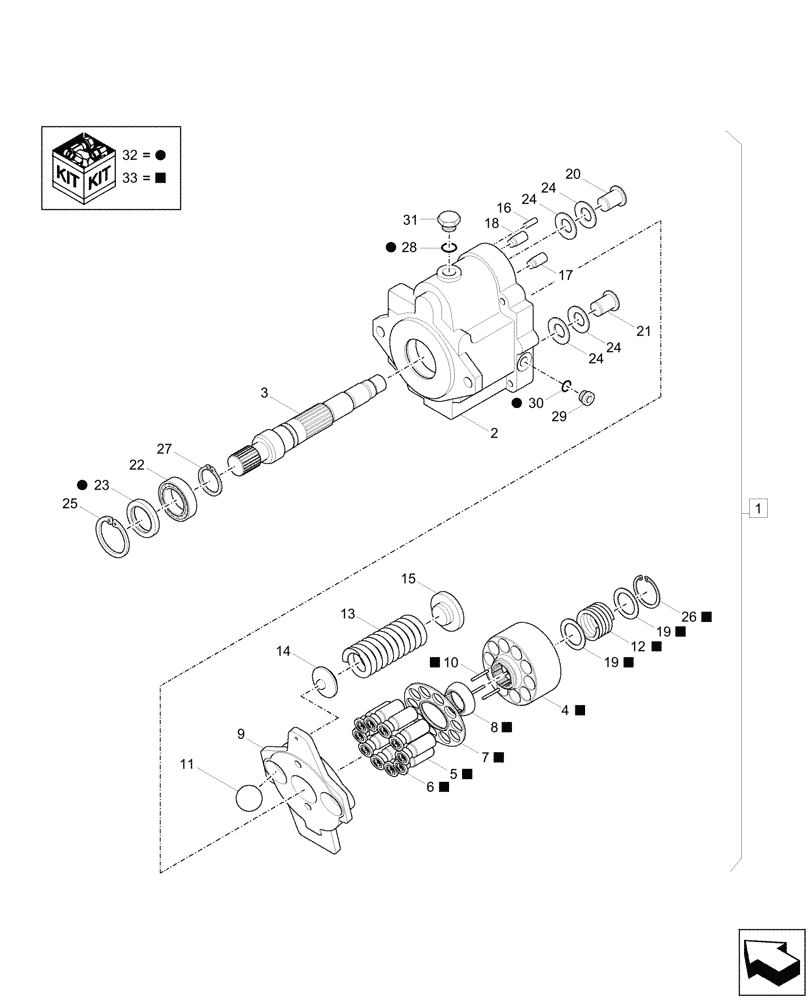

Запчасти Case CX33C (35.106.010) - HYDRAULIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

31MH-10030

PUMP

ASSY, Incl 2 - 31

1шт.

See Also Figure 35.106.020

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Barrel, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

10шт.

6

NSS

NOT SOLD SEPARAT

Shoe, Incl in 1

10шт.

7

NSS

NOT SOLD SEPARAT

Holder, Shoe, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Holder, Barrel, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Needle, Incl in 1

3шт.

11

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

2шт.

12

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Holder, Spring, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Retainer, Incl in 1

2шт.

20

NSS

NOT SOLD SEPARAT

Stopper, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Stopper, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

4шт.

25

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

26

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

31

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

32

XJDK-00126

SEAL KIT

ASSY, Incl 23, 28, 30

1шт.

See Also Figure 35.106.020

1шт.

33

XJDK-00125

KIT

Cylinder Barrel, ASSY, Incl 4 - 8, 10, 12, 19, 26

1шт.

See Also Figure 35.106.020

1шт.
