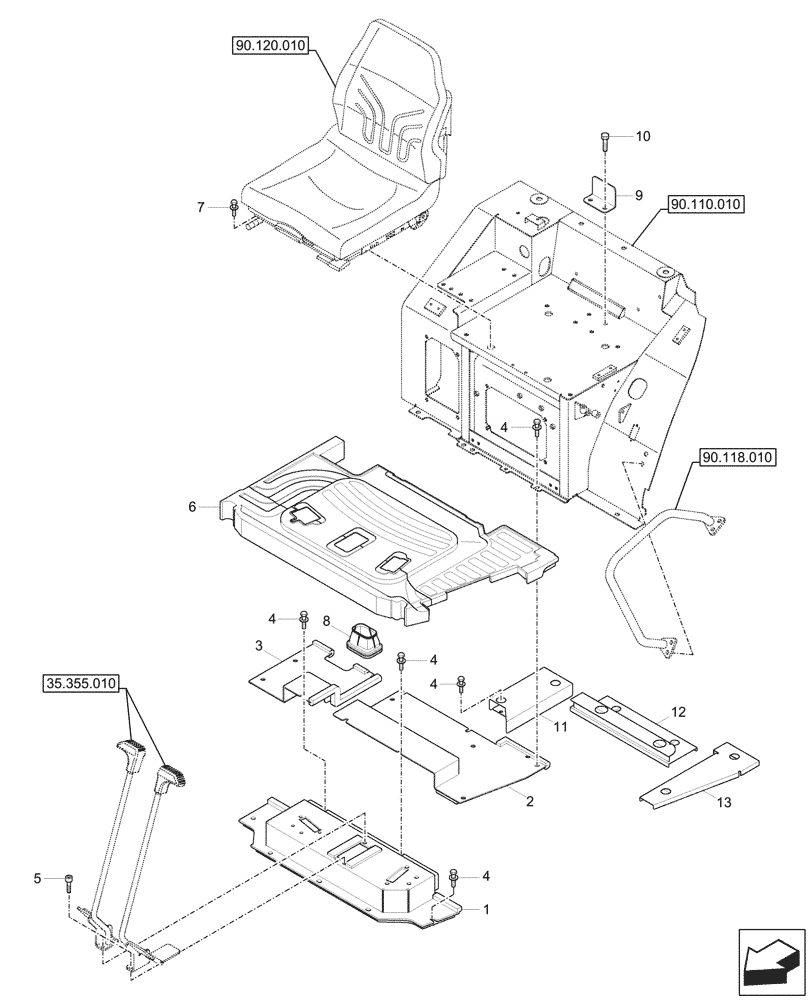

Запчасти Case CX33C (90.110.020) - FLOOR, CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.118.010
4
13
12
9
4
7
4
2
10
3
8
11
1
4
5
4
6
90.110.010
35.355.010
90.120.010
1
71MK-12011CG
PLATE
Bottom, Front
1шт.
2
71MK-00060CG
BASE PLATE
Bottom, Rear, LH
1шт.
3
71MK-00450CG
BASE PLATE
Bottom, Rear, RH
1шт.
4
S037-102556
BOLT
28шт.
5
S035-081526
BOLT,M8 x 1.25 x 15mm
4шт.
6
71MH-03003
FLOOR MAT
1шт.
7
S035-082056
BOLT
4шт.
8
71MH-21911
GROMMET
1шт.
9
71MH-22280CG
PLATE
1шт.
10
S035-082526
BOLT,M8 x 1.25 x 25mm
2шт.
11
71MK-22810CG
BRACKET
1шт.
12
71MK-22840CG
BRACKET
1шт.
13
71MK-22890CG
BRACKET
1шт.
