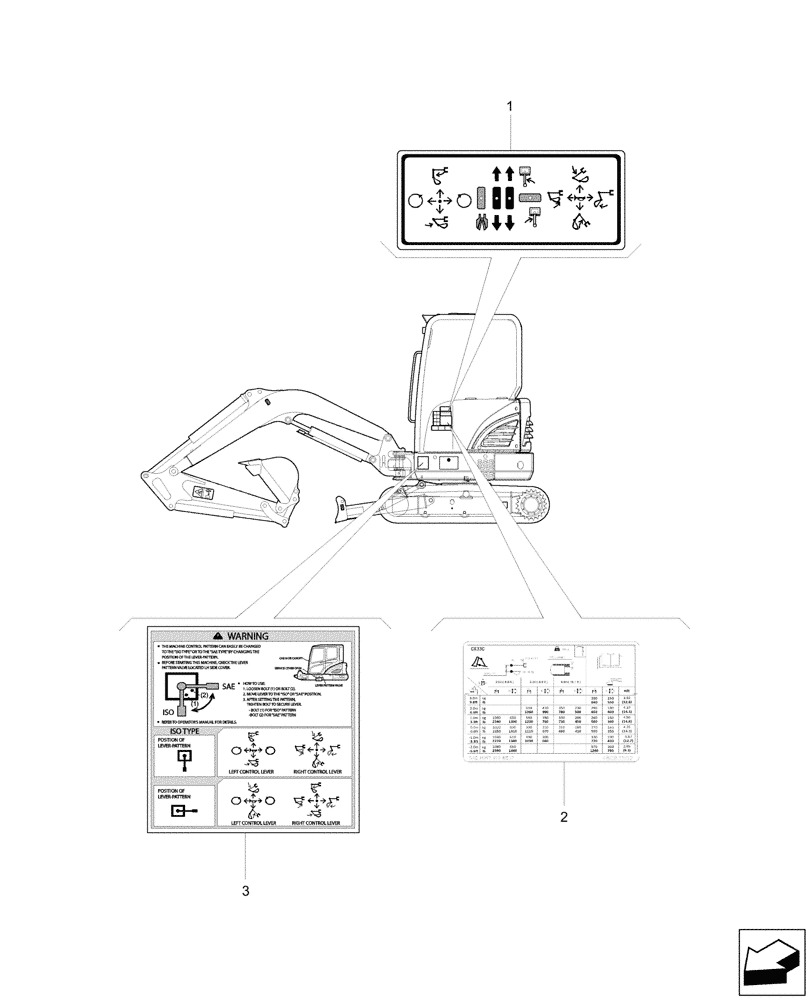

Запчасти Case CX33C (90.108.020) - VAR - 405028, 405030, 405032, 405033, 405034, 405035, 405049, 747060 - DECALS, CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

48019386

DECAL

Swivel Control

1шт.

With Hammer Pedal, Without Flow Circuit, Var. 405028, 405030

1шт.

1

48018858

DECAL

Control

1шт.

With Hammer Joystick, Without Flow Circuit, Var. 405032, 405034

1шт.

1

48018863

DECAL

Control

1шт.

With Hammer Joystick, With Flow Circuit, Var. 405033, 405035

1шт.

2

48083502

DECAL

Lifting Chart, Arm 1.3m, 220Kg

1шт.

Object Handling, Var. 747060

1шт.

With Rubber Track

1шт.

2

48083503

DECAL

Lifting Chart, Arm 1.3m, 350Kg

1шт.

Object Handling, Var. 747060

1шт.

With Rubber Track

1шт.

2

48083504

DECAL

Lifting Chart, Arm 1.6m, 220Kg

1шт.

Object Handling, Var. 747060

1шт.

With Rubber Track

1шт.

2

48083553

DECAL

Lifting Chart, Arm 1.6m, 350Kg

1шт.

Object Handling, Var. 747060

1шт.

With Rubber Track

1шт.

2

48084823

DECAL

Lifting Chart, Arm 1.3m, 220Kg

1шт.

Object Handling, Var. 747060

1шт.

With Steel Track

1шт.

2

48084825

DECAL

Lifting Chart, Arm 1.3m, 350Kg

1шт.

Object Handling, Var. 747060

1шт.

With Steel Track

1шт.

2

48084826

DECAL

Lifting Chart, Arm 1.6m, 220Kg

1шт.

Object Handling, Var. 747060

1шт.

With Steel Track

1шт.

2

48084827

DECAL

Lifting Chart, Arm 1.6m, 350Kg

1шт.

Object Handling, Var. 747060

1шт.

With Steel Track

1шт.

3

48019340

DECAL

Machine Control

1шт.

Pattern Change, Var. 405049

1шт.
