(48.120.020) - VAR - 9552700, 9553700 - TRACK ROLLER, LOWER

Запчасти Case CX33C (48.120.020) - VAR - 9552700, 9553700 - TRACK ROLLER, LOWER (48) - TRACKS & TRACK SUSPENSION

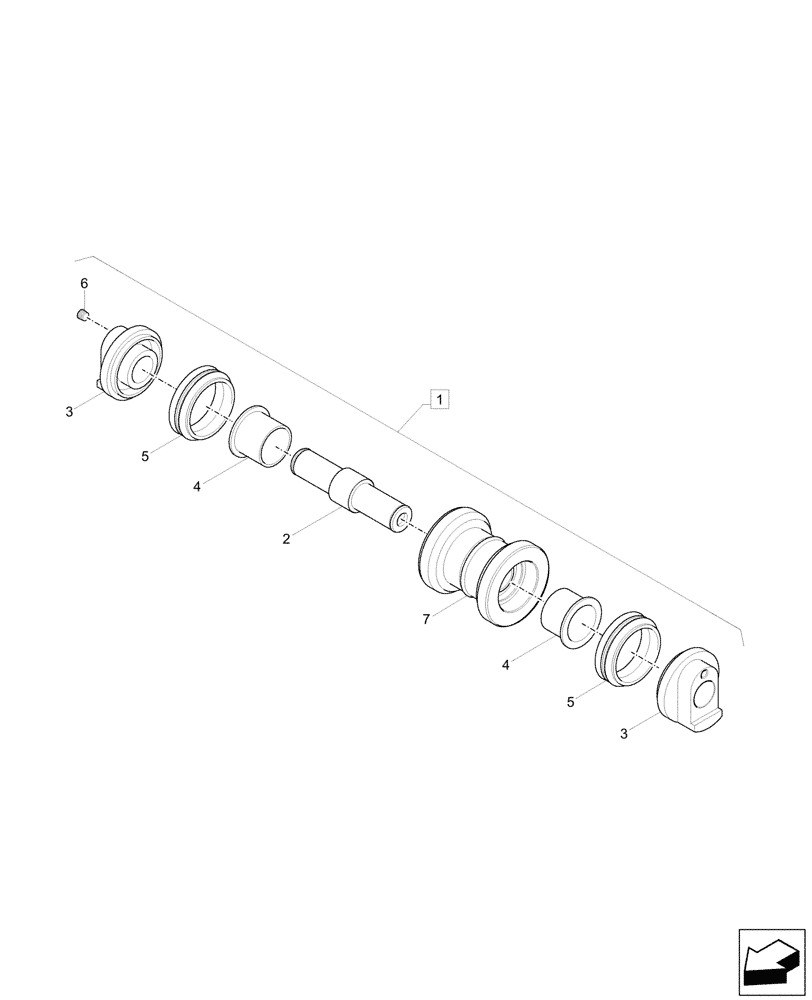

Схема запчастей Case CX33C - (48.120.020) - VAR - 9552700, 9553700 - TRACK ROLLER, LOWER (48) - TRACKS & TRACK SUSPENSION
3
7
2
5
6
3
1
4
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8LMH-11030CG

TRACK ROLLER

Lower, ASSY, Incl 2 - 7

8шт.

Rubber Tracks (300MM), Var. 9552700

1шт.

1

8LMH-11040CG

TRACK ROLLER

Lower, ASSY, Incl 2 - 7

8шт.

Steel Tracks (300MM), Var. 9553700

1шт.

2

81MH-11310

SHAFT

1шт.

3

81MH-11330

COLLAR

2шт.

4

81MH-11320

BUSHING

2шт.

5

81MH-11340

KIT

2шт.

6

81MJ-13390

PLUG

2шт.

7

83MH-11300

1шт.

Rubber Tracks (300MM), Var. 9552700

1шт.

7

81MH-11400

1шт.

Steel Tracks (300MM), Var. 9553700

1шт.
