(39.140.010) - VAR - 747995, 747996 - COUNTERWEIGHT

Запчасти Case CX33C (39.140.010) - VAR - 747995, 747996 - COUNTERWEIGHT (39) - FRAMES AND BALLASTING

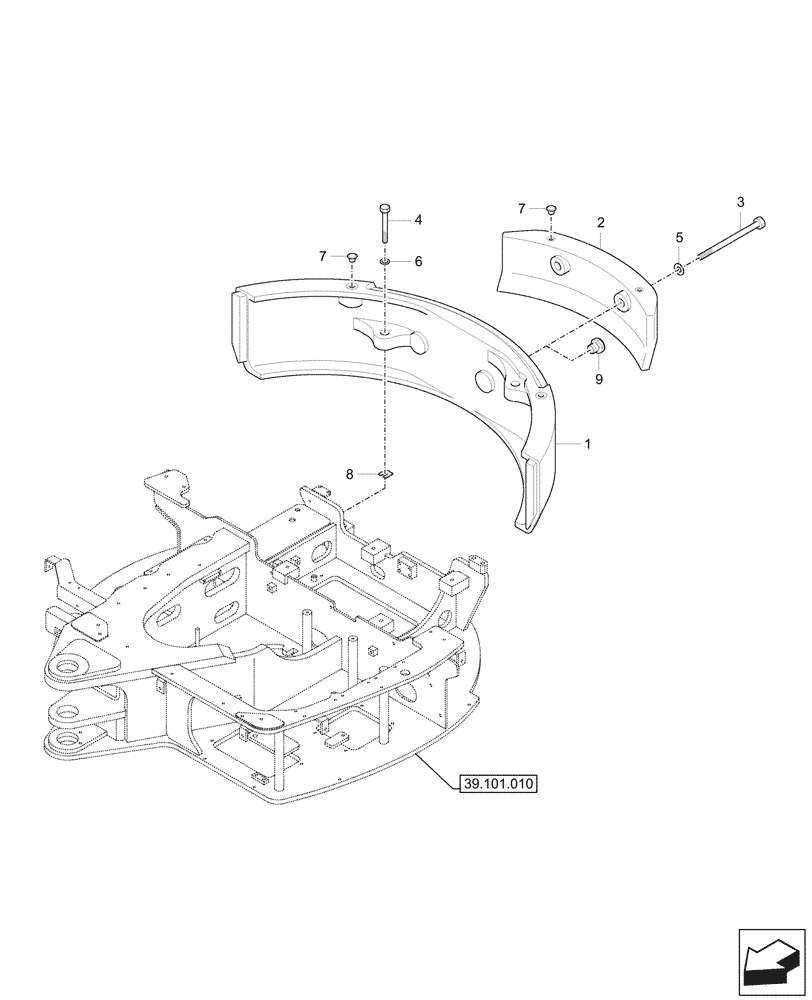

Схема запчастей Case CX33C - (39.140.010) - VAR - 747995, 747996 - COUNTERWEIGHT (39) - FRAMES AND BALLASTING
39.101.010
8
9
6
1
7
7
5
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

41MK-21002CG

COUNTERWEIGHT

Std

1шт.

2

41MK-21500CG

COUNTERWEIGHT

Additional

1шт.

Additional Counterweight, Var. 747996

1шт.

3

S017-24115D

BOLT

1шт.

Additional Counterweight, Var. 747996

1шт.

4

S017-20090D

BOLT

1шт.

5

S441-240006

WASHER

1шт.

Additional Counterweight, Var. 747996

1шт.

6

S441-200006

WASHER

1шт.

7

41QA-40180

CAP

1шт.

Standard Counterweight, Var. 747995

1шт.

7

41QA-40180

CAP

1шт.

Additional Counterweight, Var. 747996

1шт.

8

S391-025045

SHIM

1шт.

9

51LP-10100

CAP

1шт.

Standard Counterweight, Var. 747995

1шт.
