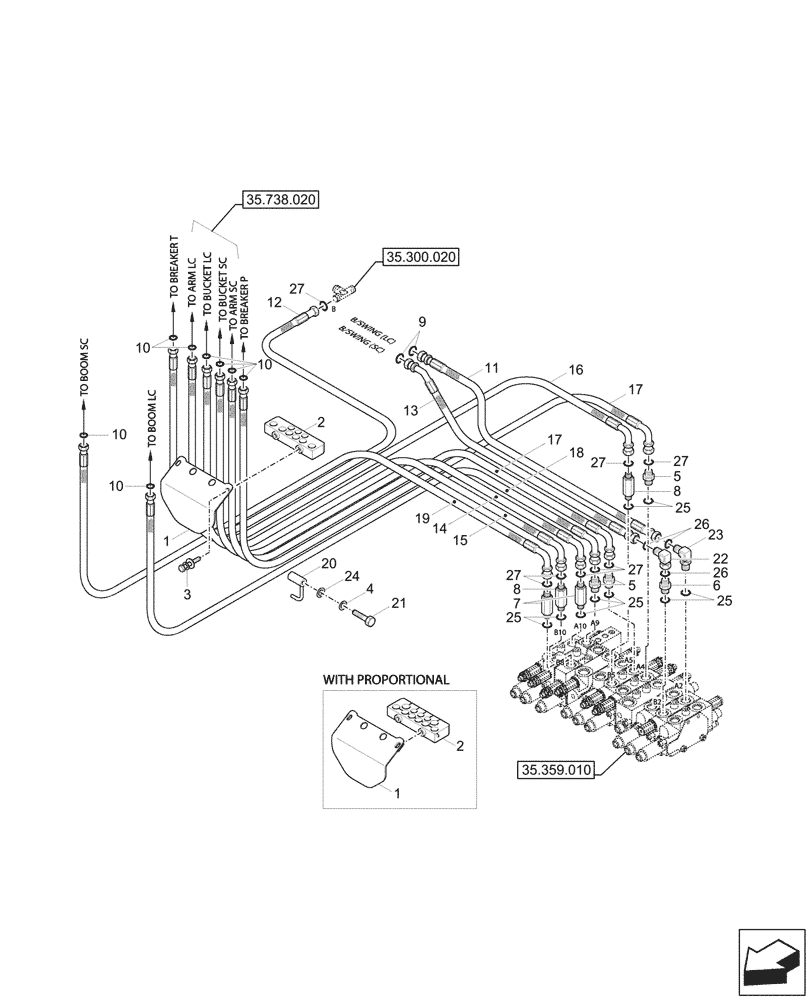

Запчасти Case CX26C (35.359.040) - CONTROL VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

35MK-10280CG

COVER

1шт.

With Hammer Circuit, Var. 405019, 405021, 405023, 405043

1шт.

1

35MK-10290CG

COVER

1шт.

With Hammer Joystick and Flow Circuit, Var. 405024, 405044

1шт.

2

31MK-10670

CLAMP

1шт.

Without Quick Clamp, Var. 405040

1шт.

2

31MK-10290

CLAMP

1шт.

With Quick Clamp, Var. 405036, 405038

1шт.

2

34MK-10310

CLAMP

1шт.

With Hammer Joystick and Flow Circuit, Var. 405024, 405044

1шт.

3

S037-102526

BOLT,M10 x 1.5 x 25mm

2шт.

With Hammer Circuit, Var. 405019, 405021, 405023, 405043

1шт.

3

S037-103026

BOLT,M10 x 1.5 x 30mm

2шт.

With Hammer Joystick and Flow Circuit, Var. 405024, 405044

1шт.

4

S411-120006

WASHER

12mm ID

2шт.

5

X500-110002

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

3шт.

6

X500-110013

HYD CONNECTOR,PF 3/8 x 9/16 - 16 UNF

1шт.

7

31N8-40140

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

2шт.

8

31N8-40150

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

2шт.

9

S621-011001

O-RING,9/16 - 18 UNF

2шт.

10

S621-012001

O-RING

8шт.

11

P910-044029

HYDRAULIC HOSE

1шт.

12

P910-065028

HYDRAULIC HOSE

11/16 x 1400mm

1шт.

13

P920-044032

HYDRAULIC HOSE

1шт.

14

P930-065052

HYDRAULIC HOSE

11/16 UNF x 2600mm

1шт.

15

P930-065054

HYDRAULIC HOSE

11/16 UNF x 2700mm

1шт.

16

P930-065059

HYDRAULIC HOSE

11/16 UNF x 2950mm

1шт.

17

P930-065057

HYDRAULIC HOSE

11/16 - 16 UNF x 2850mm

1шт.

18

31MH-10470

HYDRAULIC HOSE

11/16 - 16 UNF x 2350mm

1шт.

19

31MH-10480

HYDRAULIC HOSE

11/16 - 16 UNF x 2450mm

1шт.

20

31MH-10520

GUIDE

1шт.

21

S017-120606

BOLT,M12 x 1.75 x 60mm

1шт.

22

X850-515100

90 ELBOW

9/16 - 18 UNF

1шт.

23

X520-110012

ELBOW,PF 3/8 x 9/16 - 18 UNF

1шт.

24

S403-12200B

WASHER

2шт.

25

S631-014004

O-RING

9шт.

26

S621-011001

O-RING,9/16 - 18 UNF

3шт.

27

S621-012001

O-RING

8шт.
