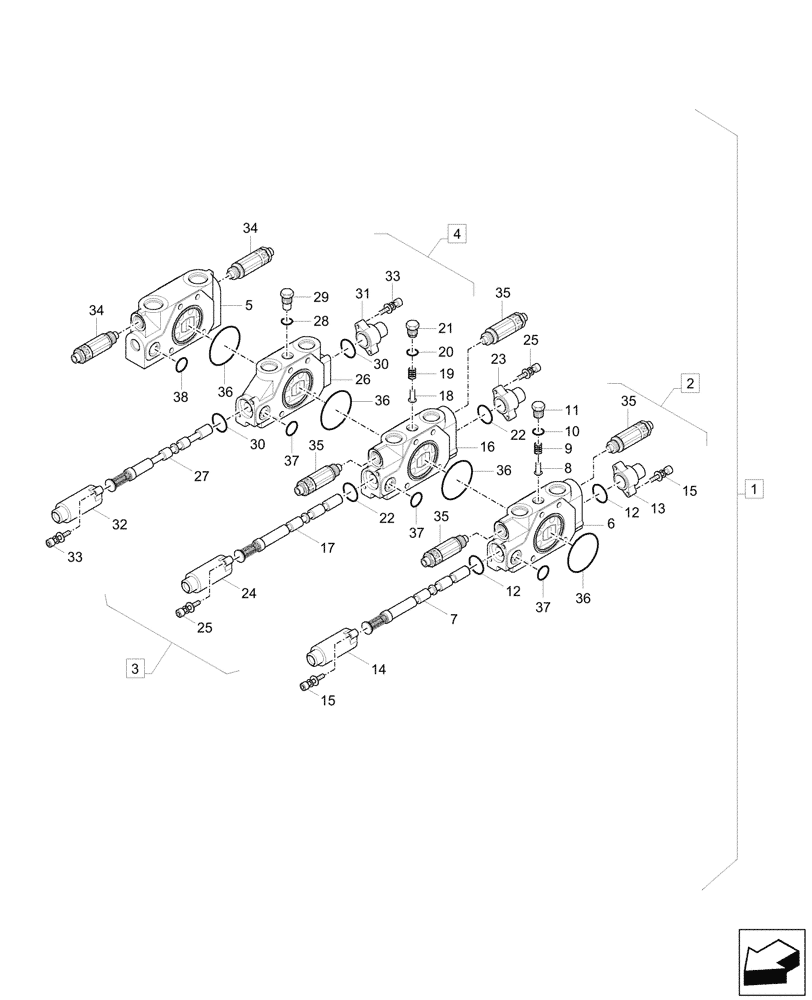

Запчасти Case CX26C (35.359.020) - VAR - 405019, 405021, 405023, 405043 - CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

31MK-10110

CONTROL VALVE

ASSY, Incl 2 - 5, 34 - 38

1шт.

See Also Figure 35.359.010

1шт.

2

XJCK-00279

BLOCK

WORK, ASSY, Incl 6 - 15

1шт.

3

XJCK-00438

BLOCK

ARM, ASSY, Incl 16 - 25

1шт.

4

XJCK-00441

BLOCK

TRAVEL, ASSY, Incl 26 - 33

1шт.

5

XJCK-00378

BLOCK

WORK, INLET

1шт.

6

NSS

NOT SOLD SEPARAT

Body, work, Incl in 2

1шт.

7

XJCK-00348

KIT

SPOOL, WORK

1шт.

8

XJCK-00350

POPPET

1шт.

9

XJCK-00351

SPRING

1шт.

10

XJCK-00001

O-RING

1шт.

11

XJCK-00352

PLUG

1шт.

12

XJCK-00305

O-RING

2шт.

13

XJCK-00306

COVER

1шт.

14

XJCK-00307

COVER

1шт.

15

XJCK-00308

BOLT

4шт.

16

NSS

NOT SOLD SEPARAT

Body, arm, Incl in 3

1шт.

17

XJCK-00439

KIT

SPOOL, ARM

1шт.

18

XJCK-00302

POPPET

1шт.

19

XJCK-00303

SPRING

1шт.

20

XJCK-00001

O-RING

1шт.

21

XJCK-00304

PLUG

1шт.

22

XJCK-00305

O-RING

2шт.

23

XJCK-00306

COVER

1шт.

24

XJCK-00307

COVER

1шт.

25

XJCK-00308

BOLT

4шт.

26

NSS

NOT SOLD SEPARAT

Body, travel, Incl in 4

1шт.

27

XJCK-00442

KIT

SPOOL, TRAVEL

1шт.

28

XJCK-00001

O-RING

1шт.

29

XJCK-00331

PLUG

1шт.

30

XJCK-00305

O-RING

2шт.

31

XJCK-00306

COVER

1шт.

32

XJCK-00307

COVER

1шт.

33

XJCK-00308

BOLT

4шт.

34

XJCK-00453

VALVE

2шт.

35

XJCK-00455

VALVE

4шт.

36

XJCK-00290

O-RING

4шт.

37

XJCK-00291

O-RING

3шт.

38

XJCK-00292

O-RING

1шт.
