Запчасти Case CX26C (35.356.020) - FOOT CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

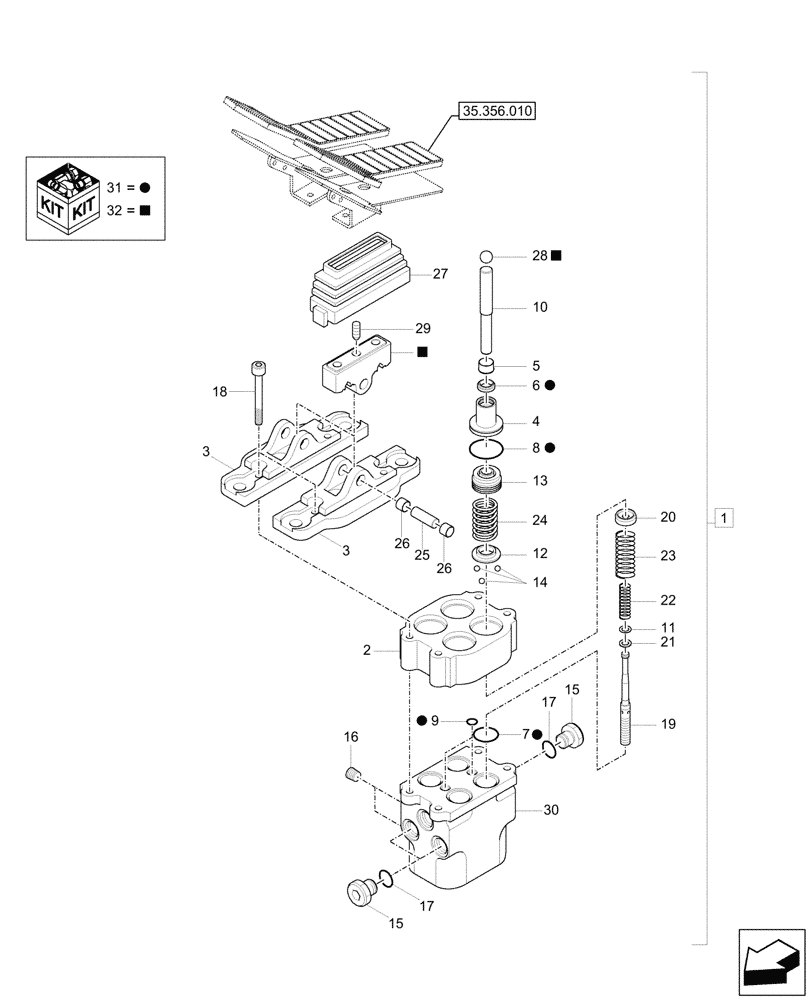

Схема запчастей Case CX26C - (35.356.020) - FOOT CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
11
35.356.010
17
31
3
31
15
18
21
9
29
31
22
14
13
7
2
24
31
32
10
23
6
15
20
16
12
28
32
27
30
8
5
31
26
32
26
3
1
31
17
19
4
25
32

Артикул

Название

Примечание

Количество

1

31MH-20030

PEDAL

ASSY, Incl 2 - 30

1шт.

2

NSS

NOT SOLD SEPARAT

Casing, Incl 1

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

2шт.

4

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

4шт.

5

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

4шт.

6

XJBN-01083

PACKING

4шт.

7

XJBN-01084

O-RING

4шт.

8

XJBN-01085

O-RING

4шт.

9

XJBN-00044

O-RING

2шт.

10

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

4шт.

11

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

4шт.

12

NSS

NOT SOLD SEPARAT

Spring seat, Incl in 1

4шт.

13

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

4шт.

14

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

12шт.

15

XJBN-00265

PLUG

3шт.

16

XJBN-00032

PLUG

2шт.

17

XJBN-00045

O-RING

3шт.

18

XJBN-01091

SCREW

4шт.

19

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

4шт.

20

NSS

NOT SOLD SEPARAT

Spring seat, Incl in 1

4шт.

21

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

4шт.

22

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

4шт.

23

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

4шт.

24

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

4шт.

25

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

2шт.

26

NSS

NOT SOLD SEPARAT

Busching, Incl in 1

4шт.

27

XJBN-01103

BELLOWS

2шт.

28

XJBN-01101

BALL

4шт.

29

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

30

NSS

NOT SOLD SEPARAT

Casing, Incl 1

1шт.

31

XJBN-01104

SEAL KIT

ASSY, Incl 6 - 9

1шт.

32

XJBN-01105

KIT

ASSY, Incl 28

1шт.

Выбрано товаров: 32
