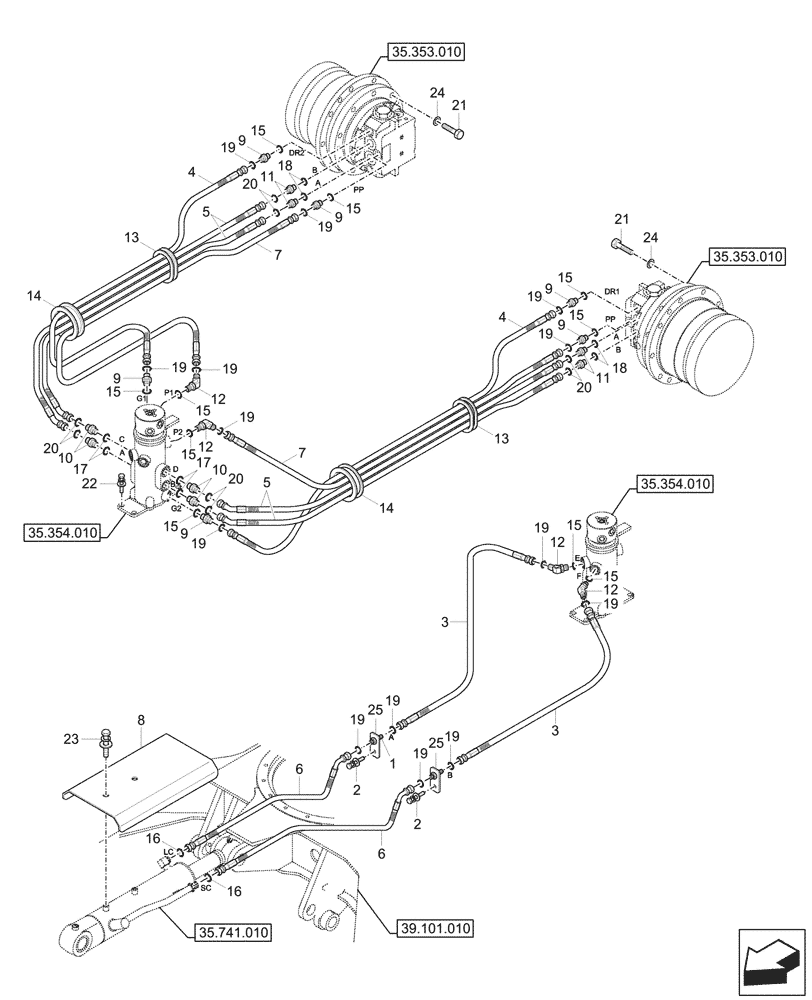

Запчасти Case CX26C (35.353.040) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

X540-120001

HYD CONNECTOR

1шт.

2

S037-102026

BOLT,M10 x 1.5 x 20mm

2шт.

3

P910-045006

HYDRAULIC HOSE

2шт.

4

X400-042018

HYDRAULIC HOSE

2шт.

5

P920-085018

HYDRAULIC HOSE

4шт.

6

P923-045012

HYDRAULIC HOSE

2шт.

7

X400-042019

HYDRAULIC HOSE

2шт.

8

35MK-40210CG

COVER

Dozer

1шт.

9

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

6шт.

10

X500-110012

HYD CONNECTOR,PF 3/8 x 13 - 16 UNF

4шт.

11

X500-110003

HYD CONNECTOR,PF 1/2 x 13/16 - 16 UNF

4шт.

12

X530-110001

45 ELBOW,PF 1/4 x 9/16 - 18 UNF

4шт.

13

S760-070806

GROMMET

2шт.

14

S760-031400

GROMMET

2шт.

15

S631-011004

O-RING,PF 1/4

10шт.

16

S621-011001

O-RING,9/16 - 18 UNF

2шт.

17

S631-014004

O-RING

4шт.

18

S631-018004

O-RING

4шт.

19

S621-011001

O-RING,9/16 - 18 UNF

14шт.

20

S621-014001

O-RING

6шт.

21

S017-120356

BOLT

18шт.

22

S037-103026

BOLT,M10 x 1.5 x 30mm

4шт.

23

S037-122526

BOLT

2шт.

24

S441-120006

WASHER

18шт.

25

34MK-40220

TERMINAL

2шт.
