Запчасти Case CX26C (35.352.020) - MOTO-REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

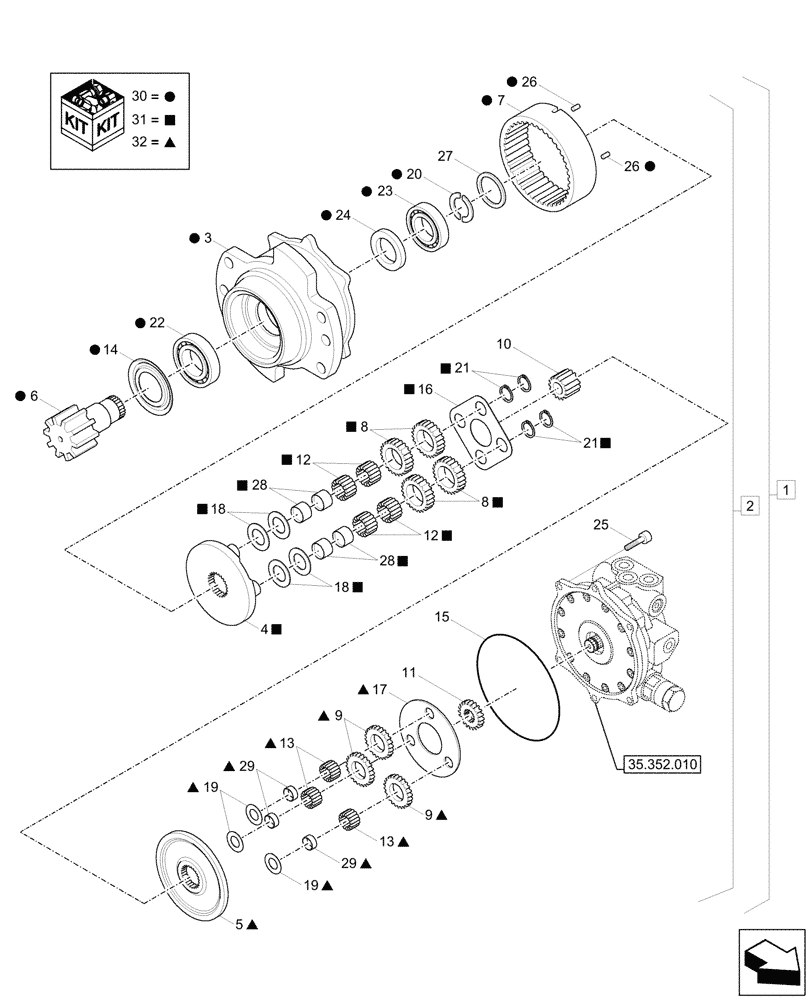

Схема запчастей Case CX26C - (35.352.020) - MOTO-REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.352.010
32
15
30
28
27
9
7
17
32
32
23
30
32
31
14
11
32
20
32
30
12
30
18
2
30
32
31
30
31
13
19
32
8
32
31
31
22
31
13
21
26
19
30
12
31
30
3
31
4
31
5
29
6
21
29
32
24
9
8
32
30
30
16
31
25
31
1
26
31
30
32
28
18
30
31
10
31

Артикул

Название

Примечание

Количество

1

31MK-10150

ELECTRIC MOTOR

ASSY, Incl 2

1шт.

2

XJDK-00101

CORE-MOTO-REDUCTION UNIT

ASSY, Incl 3 - 29

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Carrier, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Carrier, Incl in 2

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Gear, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Gear, Incl in 2

4шт.

9

NSS

NOT SOLD SEPARAT

Gear, Incl in 2

3шт.

10

XJDK-00102

GEAR

1шт.

11

XJDK-00103

GEAR

1шт.

12

NSS

NOT SOLD SEPARAT

Needle, Incl in 2

92шт.

13

NSS

NOT SOLD SEPARAT

Needle, Incl in 2

72шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2

1шт.

15

XJDK-00104

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

Plate, Incl in 2

1шт.

17

NSS

NOT SOLD SEPARAT

Plate, Incl in 2

1шт.

18

NSS

NOT SOLD SEPARAT

Washer, Incl in 2

4шт.

19

NSS

NOT SOLD SEPARAT

Washer, Incl in 2

3шт.

20

NSS

NOT SOLD SEPARAT

Collar, Incl in 2

2шт.

21

XJDK-00105

SNAP RING

4шт.

22

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

1шт.

23

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

1шт.

24

NSS

NOT SOLD SEPARAT

Seal, Incl in 2

1шт.

25

XJDK-00106

SCREW

6шт.

26

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

2шт.

27

XJDK-00107

RING

1шт.

28

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2

4шт.

29

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2

3шт.

30

XJDK-00115

KIT

ASSY, Incl 3, 6, 7, 14, 20, 22 - 24, 26

1шт.

31

XJDK-00116

KIT

ASSY, Incl 4, 8, 12, 16, 18, 21, 28

1шт.

32

XJDK-00117

KIT

ASSY, Incl 5, 9, 13, 17, 19, 29

1шт.

Выбрано товаров: 32
