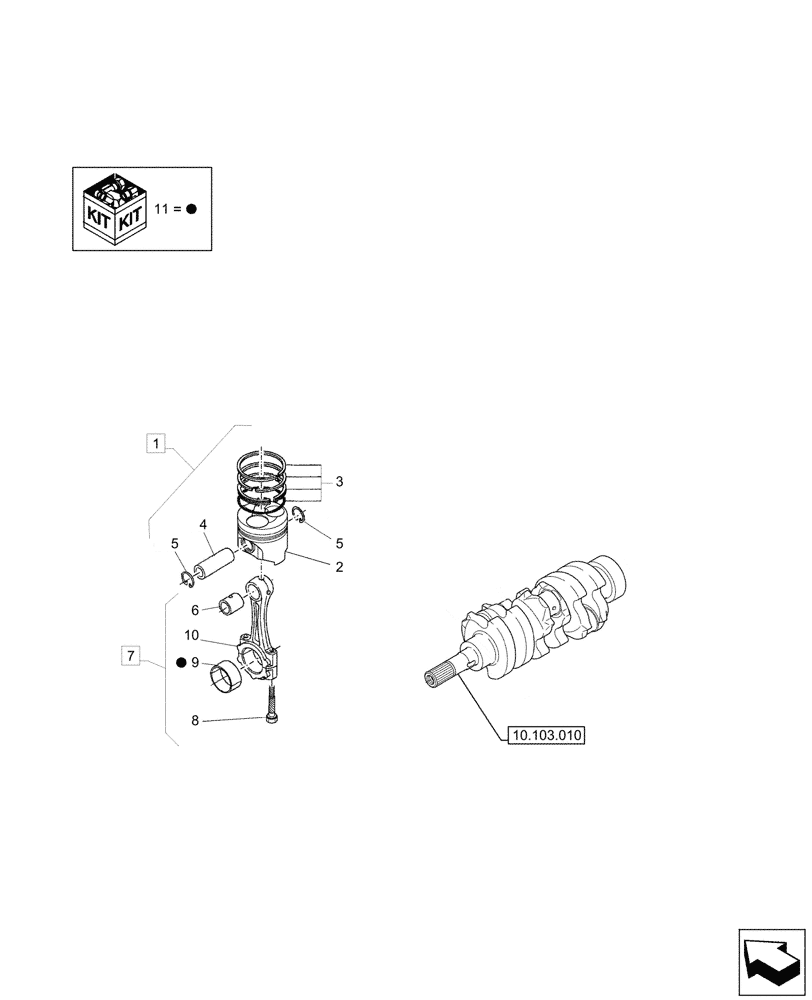

Запчасти Case CX26C (10.105.010) - CONNECTING ROD & PISTON (10) - ENGINE

1

XJBR-02428

PISTON RINGS KIT

STD Set, ASSY, Incl 2 - 6

3шт.

1

XJBR-02429

PISTON RINGS KIT

+0.5mm Set, ASSY, Incl 2 - 6

3шт.

2

XJBR-02401

PISTON

STD Set

3шт.

2

XJBR-02402

PISTON RING

+0.5mm Set

3шт.

3

XJBR-02625

PISTON

Ring, STD Set

3шт.

3

XJBR-02404

PISTON RING

+0.5mm Set

3шт.

4

XJBR-02405

PIN

3шт.

5

XJBR-02406

CIRCLIP

6шт.

6

XJBR-02408

BUSHING

1шт.

7

XJBR-02407

ROD

ASSY, Incl 6, 8 - 10

3шт.

8

XJBR-02409

BOLT

6шт.

9

XJBR-02410

BEARING HALF

Half-bearing, STD Set

3шт.

9

XJBR-02411

BEARING HALF

Half-bearing, -0.2mm Set

3шт.

9

XJBR-02412

BEARING HALF

Half-bearing, -0.4mm Set

3шт.

10

NSS

NOT SOLD SEPARAT

Connecting Rod, Incl in 7

3шт.

11

XJBR-02626

BEARING SET

Bearing, STD Set, ASSY, Incl 9

1шт.

See Also Figure 10.103.010, 10.103.020

1шт.

11

XJBR-02431

BEARING SET

Bearing, ±0.2mm Set, ASSY, Incl 9

1шт.

See Also Figure 10.103.010, 10.103.020

1шт.

11

XJBR-02432

BEARING SET

Bearing, ±0.4mm Set, ASSY, Incl 9

1шт.

See Also Figure 10.103.010, 10.103.020

1шт.
