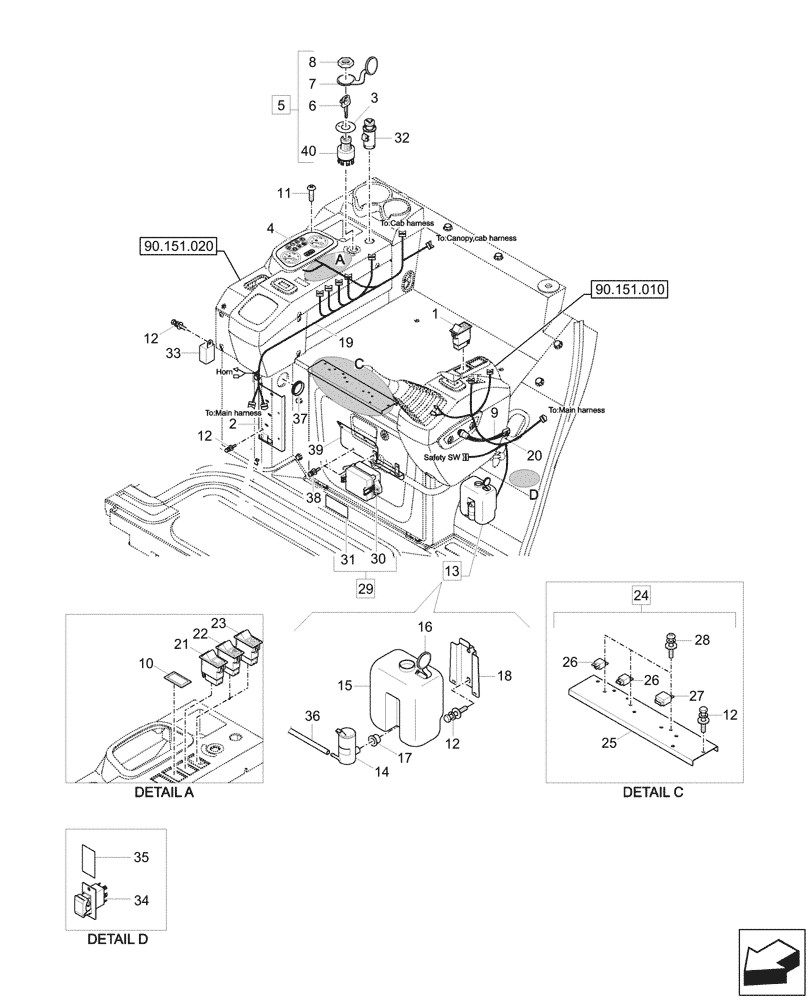

Запчасти Case CX26C (55.512.010) - CONSOLE, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

1

21M8-01101

SWITCH

Main Light

1шт.

2

21MH-00521

PLATE

1шт.

3

94MH-10250

DECAL

Start Key

1шт.

4

2LMK-11003

CLUSTER

1шт.

5

21MH-20801

SWITCH

Start, ASSY, Incl 6 - 8, 40

1шт.

Canopy Model Only

1шт.

5

21MH-10801

SWITCH

Start, ASSY, Incl 6

1шт.

Cab Model Only

1шт.

6

21N4-10400K

IGNITION KEY

1шт.

7

21MH-10900

CAP

Rubber

1шт.

8

21MH-10910

NUT

1шт.

9

21MH-00670

SWITCH

Cut Off

1шт.

10

21E6-10460

COVER

1шт.

11

S131-051546

CAPTIVE WASHER SCREW

2шт.

12

S035-051526

BOLT,M5 x 0.8 x 15mm

11шт.

13

21M9-23630

WASHER

Tank, ASSY, Incl 14 - 18

1шт.

Cab Model Only

1шт.

14

21M8-00100

HYDRAULIC MOTOR

Motor

1шт.

15

21EG-10140

TANK

1шт.

16

24L3-30660

CAP

1шт.

17

24L3-30670

RUBBER INSULATOR

1шт.

18

24L3-30710

PLATE

1шт.

19

21MK-02801

WIRE HARNESS

Console, RH

1шт.

20

21MH-00340

WIRE HARNESS

LH

1шт.

21

21MH-00900

SWITCH

Overload

1шт.

Object Handling, Var. 747060

1шт.

22

21M6-53800

SWITCH

Travel Alarm

1шт.

Travel Alarm, Var. 747453

1шт.

23

21M6-53850

SWITCH

Quick Clamp

1шт.

Short Arm With Quick Clamp, Var. 405036

1шт.

24

21MJ-10904CG

RELAY

Board, ASSY, Incl 25 - 28

1шт.

25

21MJ-10110

PLATE

1шт.

26

21U6-00110

RELAY

Power

2шт.

27

22FV-12110

RELAY

12V

1шт.

28

S131-051046

CAPTIVE WASHER SCREW

3шт.

29

21MJ-10260

WIRE HARNESS

ASSY, Incl 30, 31

1шт.

30

F12890010

FUSE BOX

Fuse Box

1шт.

31

21MJ-21700

DECAL

Decal

1шт.

32

21S4-01110

CIGARETTE LIGHTER

1шт.

33

21MJ-12300

BUZZER

1шт.

34

21QA-23100CG

SWITCH

Emergency Switch

1шт.

35

21MJ-02220

DECAL

Emergency Switch

1шт.

36

21EM-30581

HOSE

1шт.

Cab Model Only

1шт.

37

S760-031200

GROMMET

1шт.

38

S131-061546

CAPTIVE WASHER SCREW,M6 x 1 x 15mm

3шт.

39

21MH-00211CG

PLATE

1шт.

40

NSS

NOT SOLD SEPARAT

Switch, Incl in 5

1шт.
