(39.140.010) - VAR - 747995, 747996 - COUNTERWEIGHT

Запчасти Case CX26C (39.140.010) - VAR - 747995, 747996 - COUNTERWEIGHT (39) - FRAMES AND BALLASTING

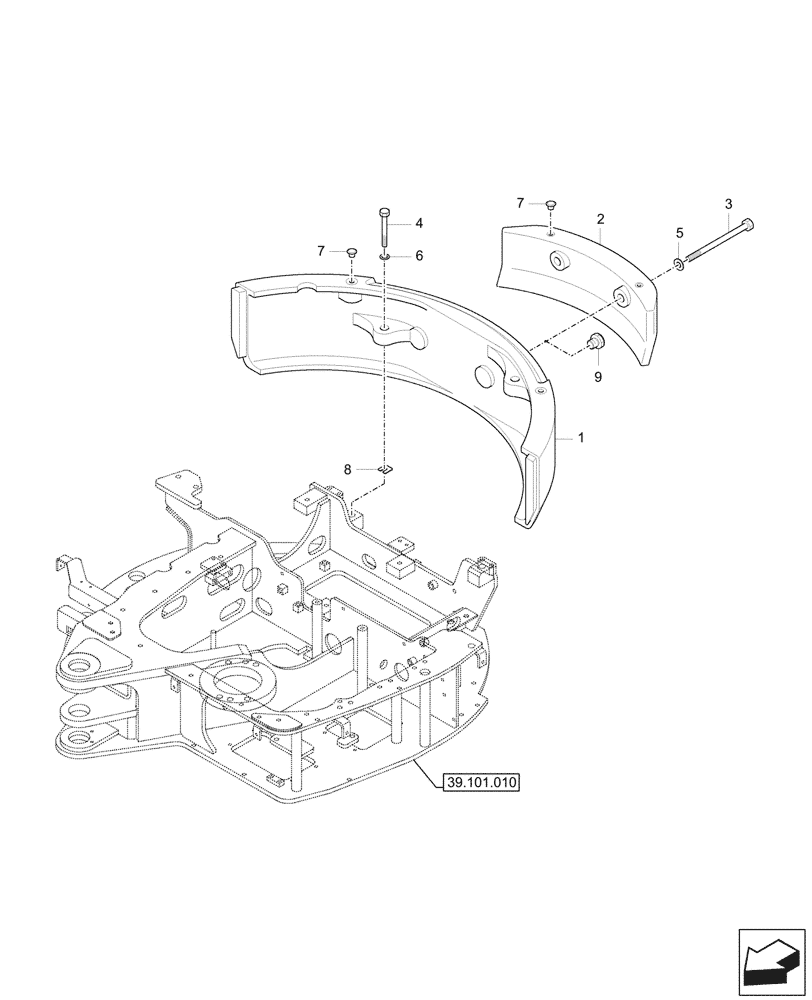

Схема запчастей Case CX26C - (39.140.010) - VAR - 747995, 747996 - COUNTERWEIGHT (39) - FRAMES AND BALLASTING
39.101.010
1
7
8
6
9
3
2
7
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

44MK-21000CG

COUNTERWEIGHT

1шт.

Additional Counterweight, Var. 747996

1шт.

2

41MK-21500CG

COUNTERWEIGHT

1шт.

Additional Counterweight, Var. 747996

1шт.

3

S017-24115D

BOLT

2шт.

4

S017-20090D

BOLT

2шт.

5

S441-240006

WASHER

2шт.

Additional Counterweight, Var. 747996

1шт.

6

S441-200006

WASHER

2шт.

7

41QA-40180

CAP

2шт.

Standard Counterweight, Var. 747995

1шт.

7

41QA-40180

CAP

4шт.

Additional Counterweight, Var. 747996

1шт.

8

S391-025045

SHIM

1mm Thk

2шт.

9

51LP-10100

CAP

2шт.

Standard Counterweight, Var. 747995

1шт.
