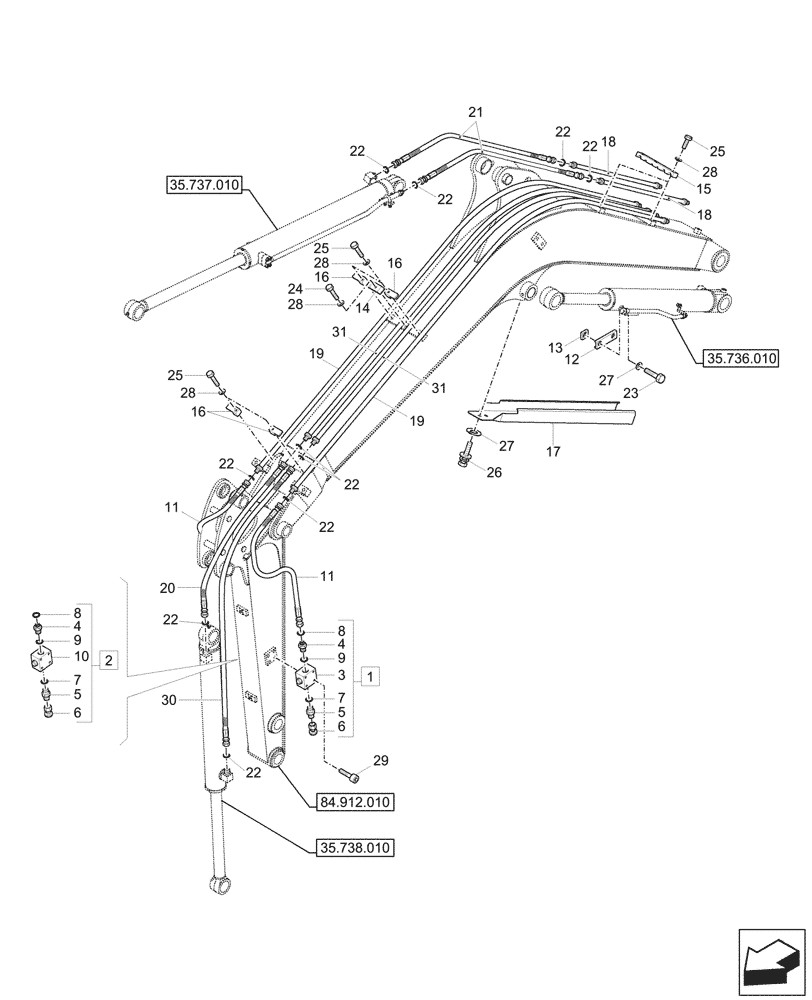

Запчасти Case CX26C (35.738.020) - DIPPER & BUCKET SECTION, LINES (35) - HYDRAULIC SYSTEMS

1

35MK-50561

STOP

VALVE, ASSY, Incl 3, 4 (Qty 1), 5 (Qty 1), 6 (Qty 1), 7 (Qty 1), 8 (Qty 1), 9 (Qty 1)

1шт.

With Hammer Circuit, Var. 405019, 405021, 405023, 405043

1шт.

2

35MK-50571

STOP

VALVE, ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1), 7 (Qty 1), 8 (Qty 1), 9 (Qty 1), 10

1шт.

With Hammer Circuit, Var. 405019, 405021, 405023, 405043

1шт.

3

31MH-50580

STOP

VALVE

1шт.

4

31MJ-50600

HYD CONNECTOR

2шт.

5

P010-110015

HYD CONNECTOR

2шт.

6

P290-100103

CAP

2шт.

7

S631-018004

O-RING

2шт.

8

S621-012001

O-RING

2шт.

9

S631-024004

O-RING

2шт.

10

31MH-50590

STOP

VALVE

1шт.

11

P914-065016

HYDRAULIC HOSE

ORFS

2шт.

Short Arm, With Hammer Circuit, Var. 405019, 405023, 405024

1шт.

11

P914-065021

HYDRAULIC HOSE

ORFS

2шт.

Long Arm, With Hammer Circuit, Var. 405021, 405043, 405044

1шт.

12

31M6-65130

COLLAR

4шт.

13

31M6-65140

RUBBER INSULATOR

2шт.

14

31M6-65100

CLAMP

1шт.

15

31MK-50310

CLAMP

2шт.

16

31MK-50410

CLAMP

4шт.

17

31MK-50320CA

COVER

1шт.

18

35MK-50220CA

PIPE

Arm

2шт.

19

35MK-50241CA

PIPE

Breaker

2шт.

20

P914-065017

HYDRAULIC HOSE

ORFS

1шт.

Short Arm, With Hammer Circuit, Var. 405019, 405023, 405024

1шт.

20

P914-065022

HYDRAULIC HOSE

ORFS

1шт.

Long Arm, With Hammer Circuit, Var. 405021, 405043, 405044

1шт.

21

P914-065011

HYDRAULIC HOSE

ORFS

2шт.

22

S621-012001

O-RING

12шт.

23

S015-080156

BOLT

4шт.

24

S017-100406

BOLT

1шт.

25

S017-100356

BOLT

10шт.

26

S037-103026

BOLT,M10 x 1.5 x 30mm

2шт.

27

S411-080006

WASHER

4шт.

28

S411-100006

WASHER

11шт.

29

S109-100406

BOLT

8шт.

With Hammer Circuit, Var. 405019, 405021, 405023, 405043

1шт.

30

P914-065026

HYDRAULIC HOSE

ORFS

1шт.

Short Arm, With Hammer Circuit, Var. 405019, 405023, 405024

1шт.

30

P914-065031

HYDRAULIC HOSE

ORFS

1шт.

Long Arm, With Hammer Circuit, Var. 405021, 405043, 405044

1шт.

31

35MK-50211CA

PIPE

Bucket

2шт.
