(35.737.030) - VAR - 747060 - DIPPER CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX26C (35.737.030) - VAR - 747060 - DIPPER CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

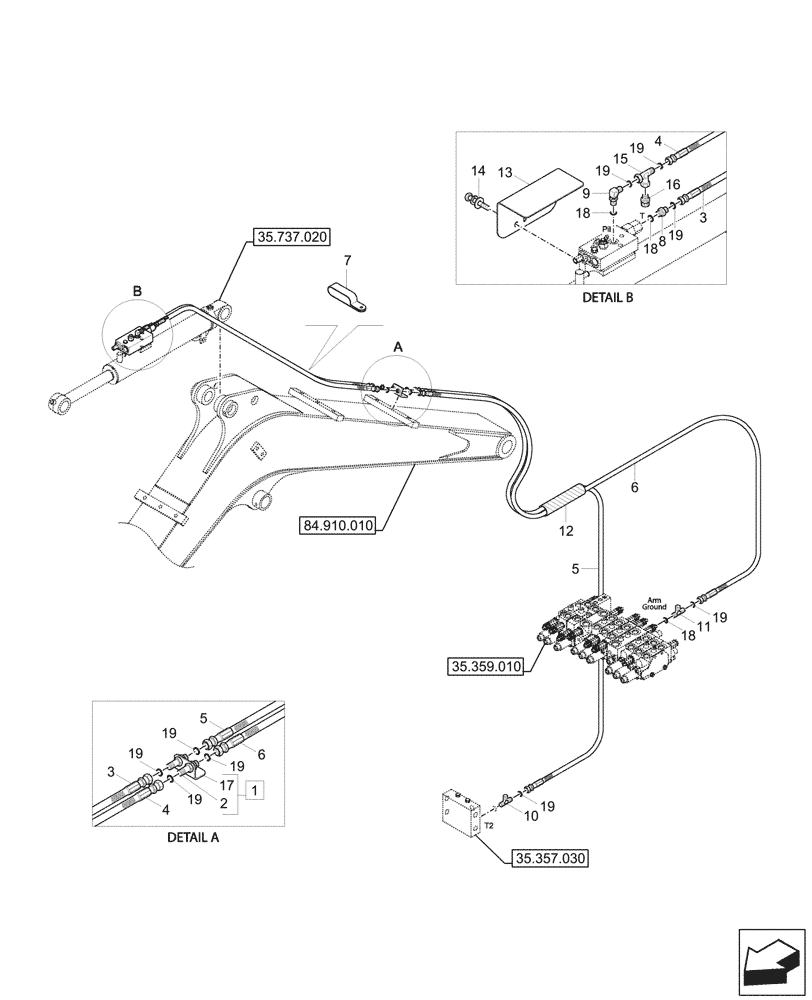

Схема запчастей Case CX26C - (35.737.030) - VAR - 747060 - DIPPER CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
84.910.010
5
10
17
9
3
19
5
18
6
4
8
19
19
19
1
3
16
7
14
15
19
19
18
13
11
19
4
2
19
19
6
18
35.737.020
12
35.357.030
35.359.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31M8-90131

TERMINAL

ASSY, Incl 2, 17

1шт.

2

X540-120001

HYD CONNECTOR

2шт.

3

P910-042025

HYDRAULIC HOSE

ORFS

1шт.

4

P910-042026

HYDRAULIC HOSE

ORFS

1шт.

5

P910-042064

HYDRAULIC HOSE

ORFS

1шт.

6

P930-042054

HYDRAULIC HOSE

ORFS

1шт.

7

31L7-10200

CLAMP,25mm ID

1шт.

8

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

ORFS

1шт.

9

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

10

X840-515151

TEE,9/16 - 18 UNF

ORFS

1шт.

11

X820-045151

TEE,PF 1/4 x 9/16 - 18 UNF x 9/16 - 18 UNF

1шт.

12

P753-060010

COVER

1шт.

13

31MK-97520CA

COVER

1шт.

14

S035-082026

BOLT,M8 x 1.25 x 20mm

1шт.

15

31N6-66080

TEE

1шт.

16

31EK-11130

SCREW,M16

1шт.

17

NSS

NOT SOLD SEPARAT

Terminal, Incl in 1

1шт.

18

S631-011004

O-RING,PF 1/4

3шт.

19

S621-011001

O-RING,9/16 - 18 UNF

8шт.
