(35.736.030) - VAR - 747060 - BOOM CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX26C (35.736.030) - VAR - 747060 - BOOM CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

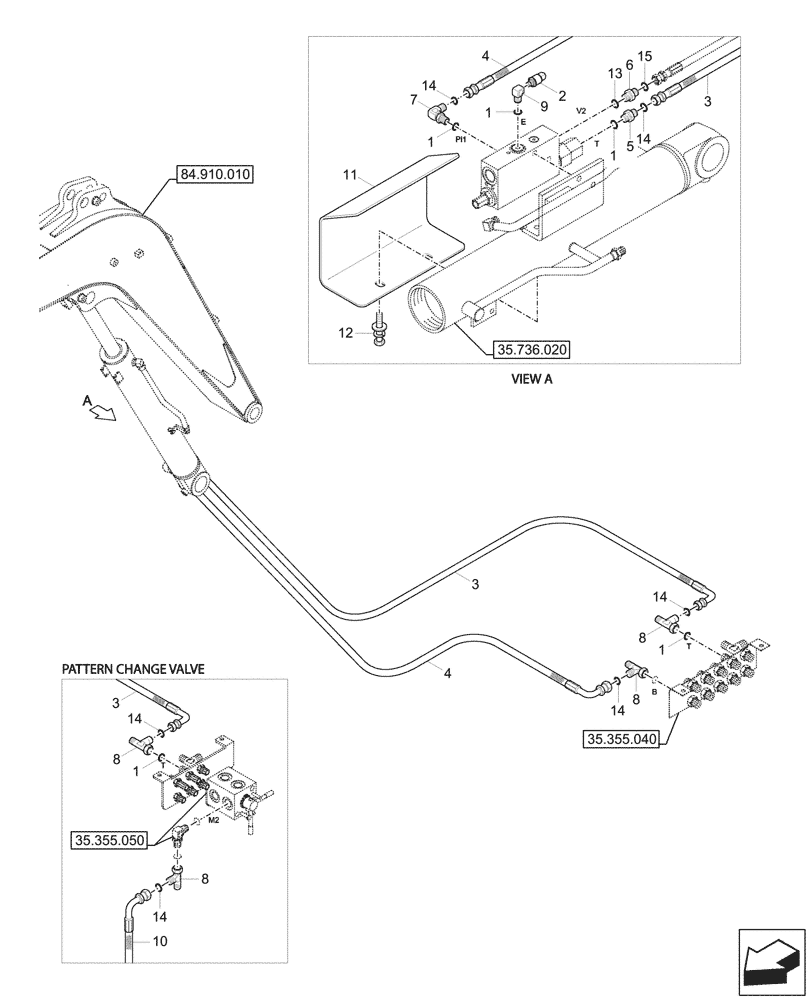

Схема запчастей Case CX26C - (35.736.030) - VAR - 747060 - BOOM CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
84.910.010
8
1
10
14
5
14
14
3
8
14
1
6
14
8
2
1
7
8
4
4
13
1
11
12
9
1
15
3
3
14
35.355.040
35.736.020
35.355.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

S631-011004

O-RING,PF 1/4

4шт.

2

31Q4-40940

SENSOR

Pressure

1шт.

3

P930-042040

HYDRAULIC HOSE

ORFS

1шт.

4

P930-042042

HYDRAULIC HOSE

ORFS

1шт.

Without Pattern Change, Var. 405048

1шт.

5

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

ORFS

1шт.

6

X500-110015

HYD CONNECTOR

ORFS

1шт.

7

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

ORFS

1шт.

8

X840-515151

TEE,9/16 - 18 UNF

Swivel, ORFS

2шт.

9

31E5-11110

ADAPTER

1шт.

10

P930-042053

HYDRAULIC HOSE

ORFS

1шт.

With Pattern Change, Var. 405047

1шт.

11

31MK-97510CA

COVER

1шт.

12

S035-082026

BOLT,M8 x 1.25 x 20mm

2шт.

13

S631-018004

O-RING

1шт.

14

S621-011001

O-RING,9/16 - 18 UNF

5шт.

15

S621-014001

O-RING

1шт.
