(35.360.020) - VAR - 405024, 405044 - HAMMER, SHEARS, LINE

Запчасти Case CX26C (35.360.020) - VAR - 405024, 405044 - HAMMER, SHEARS, LINE (35) - HYDRAULIC SYSTEMS

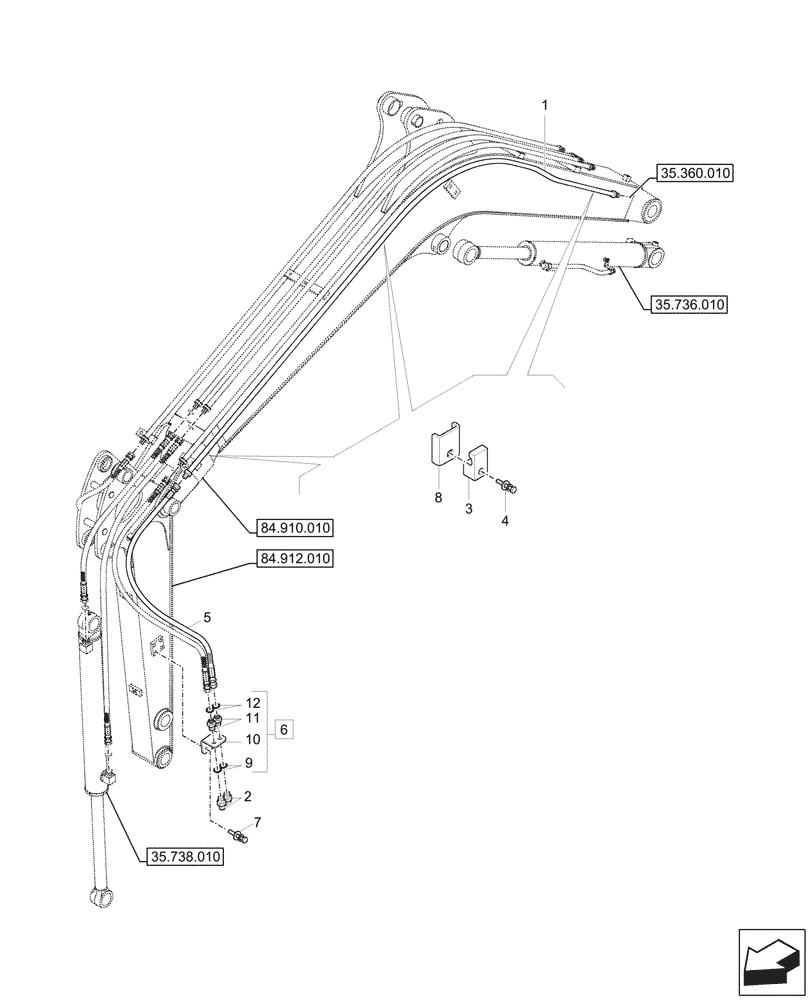

Схема запчастей Case CX26C - (35.360.020) - VAR - 405024, 405044 - HAMMER, SHEARS, LINE (35) - HYDRAULIC SYSTEMS
84.910.010
8
11
6
2
10
9
4
12
5
7
1
3
35.736.010
35.738.010
35.360.010
84.912.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

35MK-50251CA

PIPE

LH

1шт.

1

35MK-50261CA

PIPE

RH

1шт.

2

31M8-95460

COUPLING

4шт.

3

31MK-50410

CLAMP

6шт.

4

S037-104526

BOLT,M10 x 1.5 x 45mm

6шт.

5

P914-065014

HYDRAULIC HOSE

UNF 11/16" - 16 x 700mm

2шт.

Short Arm With Hammer Joystick and Flow Circuit, Var. 405024

1шт.

5

P914-065019

HYDRAULIC HOSE

UNF 11/16" - 16 x 950mm

2шт.

Long Arm With Hammer Joystick and Flow Circuit, Var. 405044

1шт.

6

34MK-95301

TERMINAL

ASSY, Incl 9 - 12

2шт.

7

S037-102026

BOLT,M10 x 1.5 x 20mm

4шт.

8

31MK-50420CA

BRACKET

4шт.

9

S631-014004

O-RING

2шт.

10

NSS

NOT SOLD SEPARAT

Plate, Incl in 6

1шт.

11

31M8-95310

HYD CONNECTOR

2шт.

12

S621-012001

O-RING

2шт.
