Запчасти Case CX26C (35.357.050) - PILOT CONTROLS, PILOT VALVE (35) - HYDRAULIC SYSTEMS

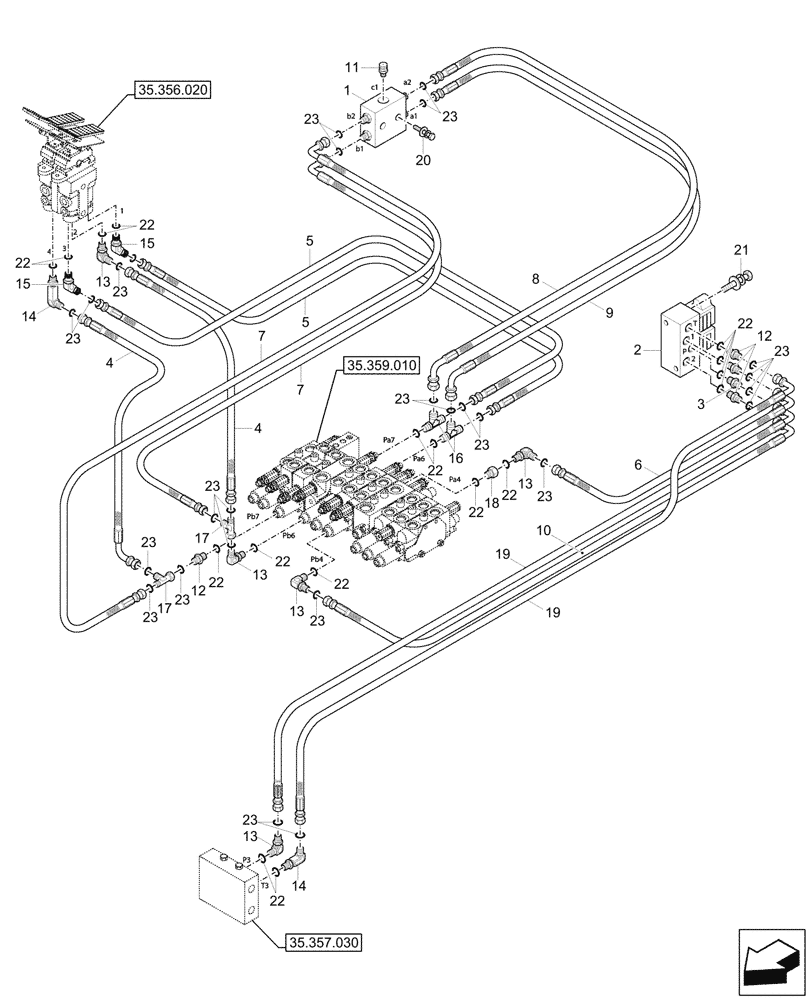

Схема запчастей Case CX26C - (35.357.050) - PILOT CONTROLS, PILOT VALVE (35) - HYDRAULIC SYSTEMS
35.359.010
19
21
11
22
13
20
22
13
22
23
23
6
22
2
22
12
7
5
23
15
23
23
23
1
15
22
4
14
23
23
23
22
10
19
17
23
3
22
22
14
16
18
5
17
12
13
22
23
23
4
9
13
8
13
23
7
23
35.356.020
35.357.030

Артикул

Название

Примечание

Количество

1

32MJ-20410

HYDRAULIC VALVE

Shuttle

1шт.

Travel Alarm, Var. 747453

1шт.

2

32MJ-20050

HYDRAULIC VALVE

2 EPPR

1шт.

With Hammer Joystick, Without Flow Circuit, Var. 405023, 405043

1шт.

3

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

With Hammer Joystick, Without Flow Circuit, Var. 405023, 405043

1шт.

4

X400-042005

HYDRAULIC HOSE,9/16 - 18 UNF x 250mm

2шт.

Travel Alarm, Var. 747453

1шт.

5

X400-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

2шт.

6

X420-042011

HYDRAULIC HOSE,9/16 - 18 UNF x 550mm

1шт.

7

X420-042007

HYDRAULIC HOSE,9/16 - 18 UNF x 350mm

2шт.

Travel Alarm, Var. 747453

1шт.

8

X420-042009

HYDRAULIC HOSE,9/16 - 18 UNF x 450mm

1шт.

9

X420-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

1шт.

With Hammer Joystick, Without Flow Circuit, Var. 405023, 405043

1шт.

10

X420-042020

HYDRAULIC HOSE,9/16 - 18 UNF x 1000mm

1шт.

With Hammer Joystick, Without Flow Circuit, Var. 405023, 405043

1шт.

11

31E5-40540

SWITCH

Pressure

1шт.

Travel Alarm, Var. 747453

1шт.

12

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

4шт.

Travel Alarm, Var. 747453

1шт.

With Hammer Joystick, Without Flow Circuit, Var. 405023, 405043

1шт.

13

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

5шт.

14

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

15

X530-110001

45 ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

16

X820-045151

TEE,PF 1/4 x 9/16 - 18 UNF x 9/16 - 18 UNF

2шт.

Travel Alarm, Var. 747453

1шт.

17

X840-515151

TEE,9/16 - 18 UNF

2шт.

Travel Alarm, Var. 747453

1шт.

18

31E9-22120

HYD CONNECTOR,PF 1/4 x PF 1/4

1шт.

19

X420-042018

HYDRAULIC HOSE,9/16 - 18 UNF x 900mm

2шт.

With Hammer Joystick, Without Flow Circuit, Var. 405023, 405043

1шт.

20

S035-084526

BOLT,M8 x 1.25 x 45mm

2шт.

Travel Alarm, Var. 747453

1шт.

21

S035-086526

BOLT,M8 x 1.25 x 65mm

2шт.

With Hammer Joystick, Without Flow Circuit, Var. 405023, 405043

1шт.

22

S631-011004

O-RING,PF 1/4

17шт.

23

S621-011001

O-RING,9/16 - 18 UNF

25шт.

Выбрано товаров: 38
