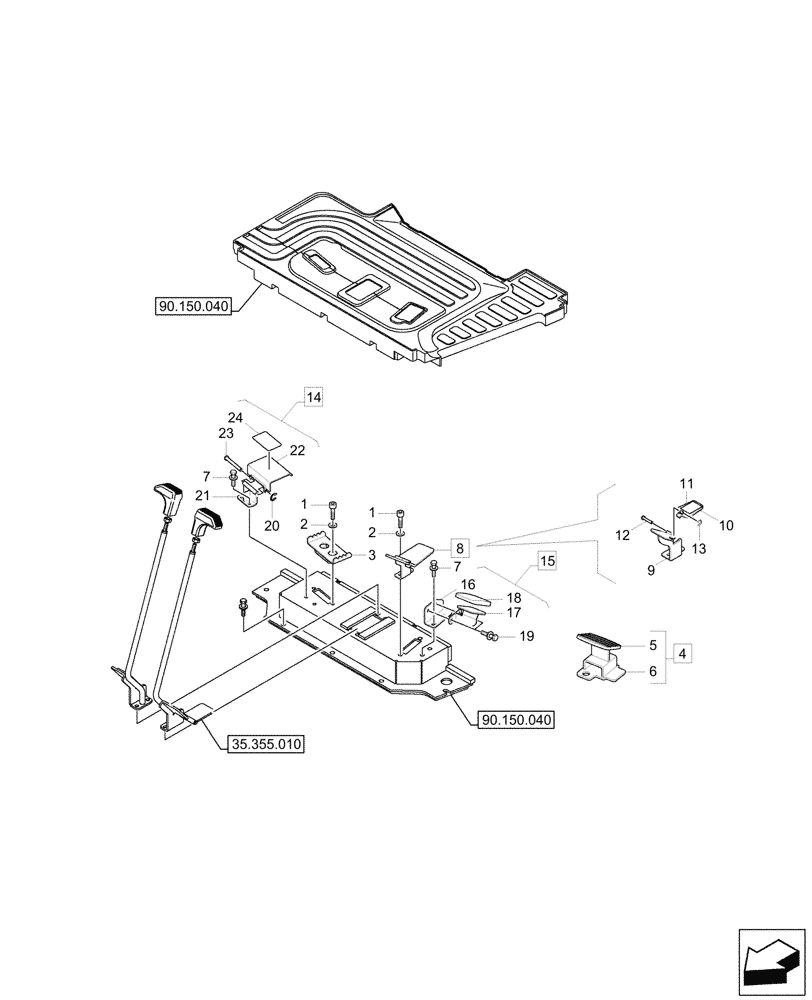

Запчасти Case CX26C (35.356.010) - PEDAL, CONTROL (35) - HYDRAULIC SYSTEMS

1

S109-080156

BOLT

4шт.

2

S403-08200B

WASHER

4шт.

3

71MK-00720CG

PLATE

Pedal

1шт.

4

71MK-20150CG

FOOTREST

ASSY, LH, Incl 5, 6

1шт.

With Hammer Joystick, Var. 405023, 405024, 405043, 405044

1шт.

5

71MK-20160CG

FOOTREST

1шт.

6

FAC0600400

COVER

1шт.

7

S035-082056

BOLT

6шт.

8

71MK-25210CG

PEDAL

ASSY, Incl 9 - 13

1шт.

With Hammer Pedal, Without Flow Circuit, Var. 405019, 405021

1шт.

9

71MK-25200CG

BRACKET

1шт.

10

NSS

NOT SOLD SEPARAT

Pedal, RH, Incl in 8

1шт.

11

73M8-10440

ANTI-SKID STRIP

1шт.

12

73M8-10450

SHAFT

1шт.

13

P560-060002

RING

1шт.

14

71MK-00660CG

COVER

ASSY, Incl 20 - 24

1шт.

15

71MK-00820CG

FOOTREST

ASSY, LH, Incl 16 - 19

1шт.

With Hammer Pedal, Without Flow Circuit, Var. 405019, 405021

1шт.

16

71MK-00870

PLATE

1шт.

17

71MK-00880

PLATE

1шт.

18

FAC0600400

COVER

1шт.

19

S035-082026

BOLT,M8 x 1.25 x 20mm

2шт.

20

P560-070002

RING

1шт.

21

71MK-00830CG

BRACKET

1шт.

22

71MK-00670CG

COVER

1шт.

23

71MH-00700

SHAFT

1шт.

24

71MH-00710

TAPE

1шт.
