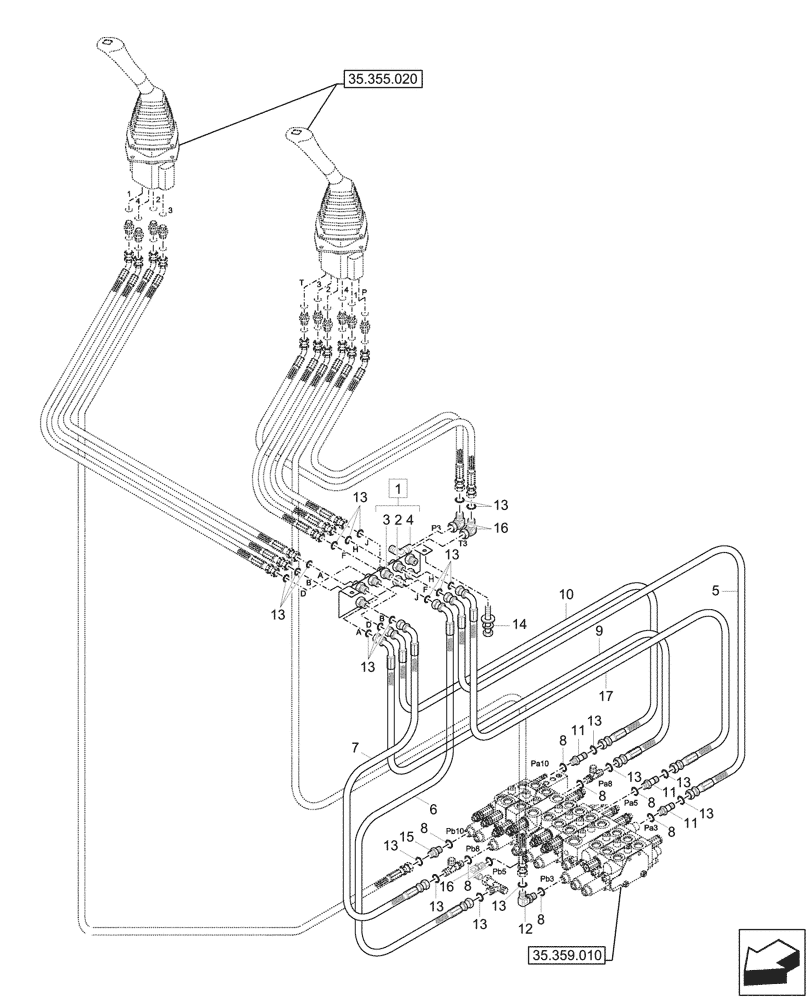

Запчасти Case CX26C (35.355.040) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

31MH-20182

TERMINAL

ASSY, Incl 2 - 4

1шт.

Without Pattern Change, Var. 405048, 405052

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

3

X540-120001

HYD CONNECTOR

8шт.

4

31MH-20200

TEE

2шт.

5

X420-042013

HYDRAULIC HOSE,9/16 - 18 UNF x 650mm

1шт.

6

X420-042008

HYDRAULIC HOSE

1шт.

Without Pattern Change, Var. 405048, 405052

1шт.

7

X420-042014

HYDRAULIC HOSE

1шт.

Without Pattern Change, Var. 405048, 405052

1шт.

8

S631-011004

O-RING,PF 1/4

6шт.

9

X420-042020

HYDRAULIC HOSE,9/16 - 18 UNF x 1000mm

1шт.

Without Pattern Change, Var. 405048, 405052

1шт.

10

X420-042023

HYDRAULIC HOSE

1шт.

11

X511-104515

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

With Hammer Circuit, Var. 405019, 405021, 405023, 405043

1шт.

11

X511-104515

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

12

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

Pattern Change, Var. 405047, 405051

1шт.

13

S621-011001

O-RING,9/16 - 18 UNF

26шт.

14

S037-102026

BOLT,M10 x 1.5 x 20mm

2шт.

15

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

Pattern Change, Var. 405047, 405051

1шт.

16

X850-515100

90 ELBOW

2шт.

Without Pattern Change, Var. 405048, 405052

1шт.

17

X420-042015

HYDRAULIC HOSE,9/16 - 18 UNF x 750mm

1шт.

Without Pattern Change, Var. 405048, 405052

1шт.
