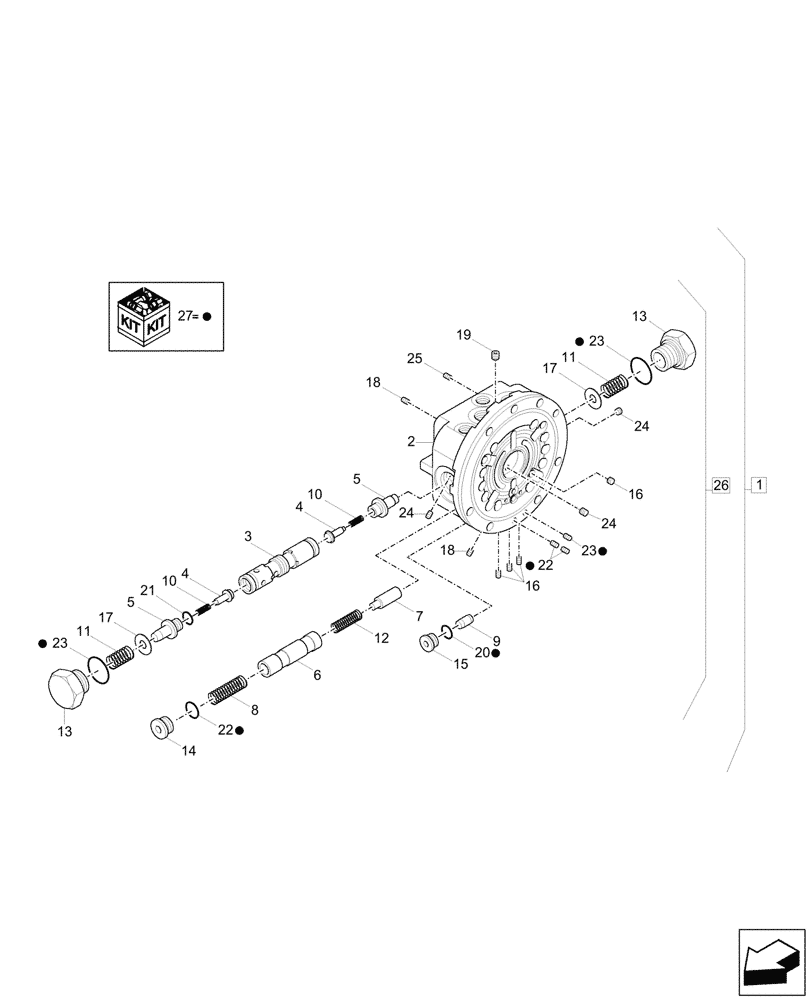

Запчасти Case CX26C (35.353.020) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

34MK-40030

HYDRAULIC MOTOR

ASSY, Incl 2 - 25

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Check valve, Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

6

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

11

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

12

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

16

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

4шт.

17

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

2шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

8шт.

19

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

20

XJDK-00048

O-RING

2шт.

21

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

22

XJDK-00020

O-RING

2шт.

23

XJDK-00152

O-RING

2шт.

24

NSS

NOT SOLD SEPARAT

Choke, Incl in 1

6шт.

25

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

26

XJDK-00213

BODY

ASSY, Incl 2 - 25

1шт.

See Also Figure 35.353.010

1шт.

27

XJDK-00076

SEAL KIT

ASSY, Incl 20, 22, 23

1шт.

See Also Figure 35.353.010

1шт.
