(35.106.020) - HYDRAULIC PUMP, COMPONENTS

Запчасти Case CX26C (35.106.020) - HYDRAULIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

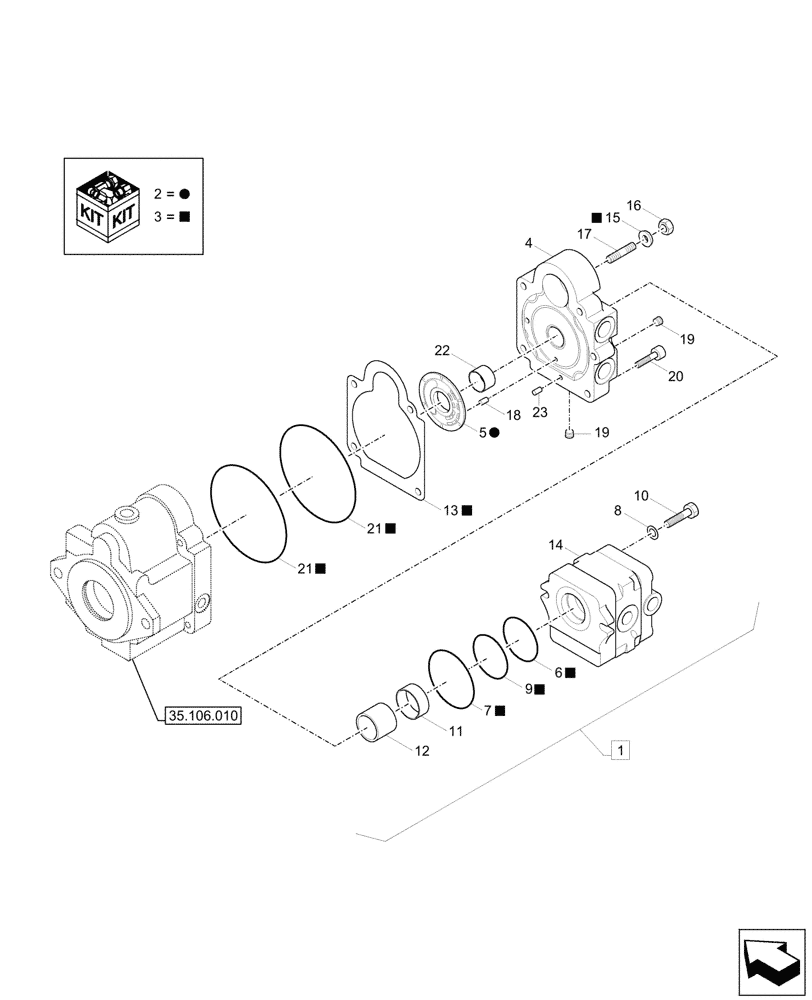

Схема запчастей Case CX26C - (35.106.020) - HYDRAULIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.106.010
19
19
3
21
23
3
6
8
3
5
3
2
11
20
3
4
7
10
3
17
1
15
13
21
2
18
12
2
22
3
9
3
3
14
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31MK-10010

PUMP

ASSY, Incl 4 - 23

1шт.

2

XJDK-00125

KIT

Repair kit, ASSY, Incl 5

1шт.

3

XJDK-00126

SEAL KIT

ASSY, Incl 6, 7, 9, 13, 15, 21

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Collar, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Coupling, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Packing, Incl in 1

1шт.

14

XJDK-00138

GEAR

Pump

1шт.

15

NSS

NOT SOLD SEPARAT

Seal washer, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

7шт.

20

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

5шт.

21

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

22

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.
