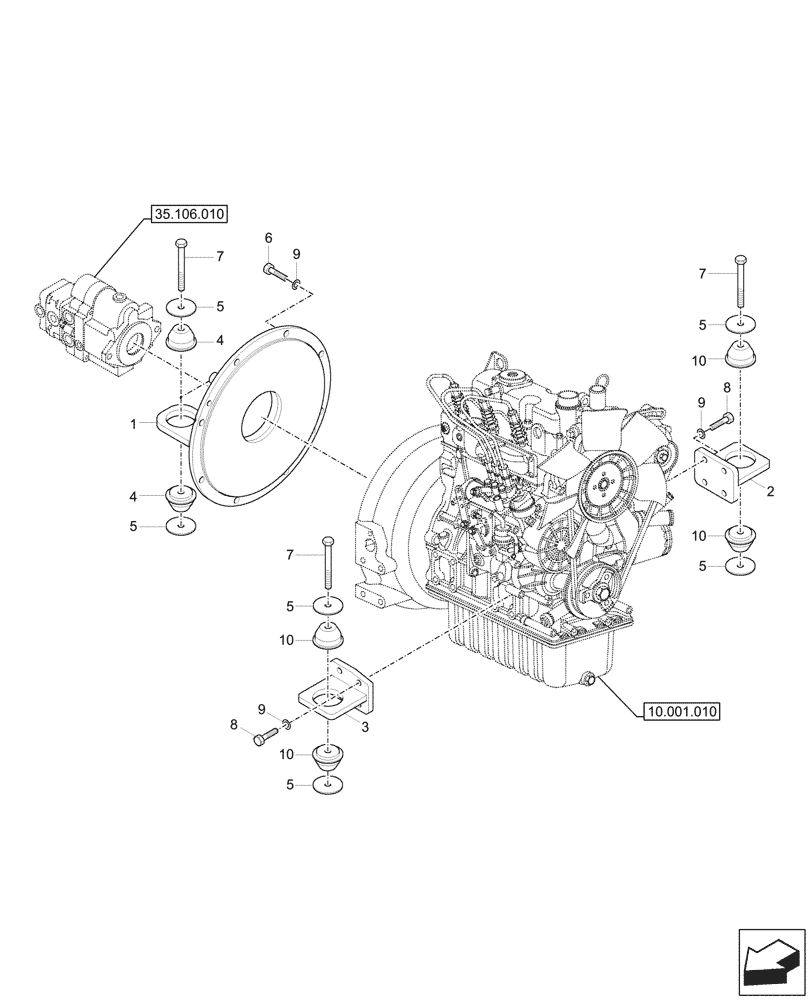

Запчасти Case CX26C (10.001.020) - ENGINE, SUPPORT (10) - ENGINE

1

14MK-00020

HOUSING

Housing

1шт.

2

14MK-00030

BRACKET

Rear

1шт.

3

14MK-00040

BRACKET

Front

1шт.

4

11MH-07140

RUBBER MOUNTING

4шт.

5

11MH-00230

WASHER

8шт.

6

S037-103056

BOLT,M10 x 1.5 x 30mm

M10 x 1.5 x 30mm

8шт.

7

S017-121106

BOLT,M12 x 1.75 x 110mm

M12 x 1.75 x 110mm

4шт.

8

S018-100306

BOLT,M10 x 1.25 x 30mm

M10 x 1.25 x 30mm

8шт.

9

S441-100006

WASHER

10mm ID

16шт.

10

11MH-07150

RUBBER MOUNTING

4шт.
