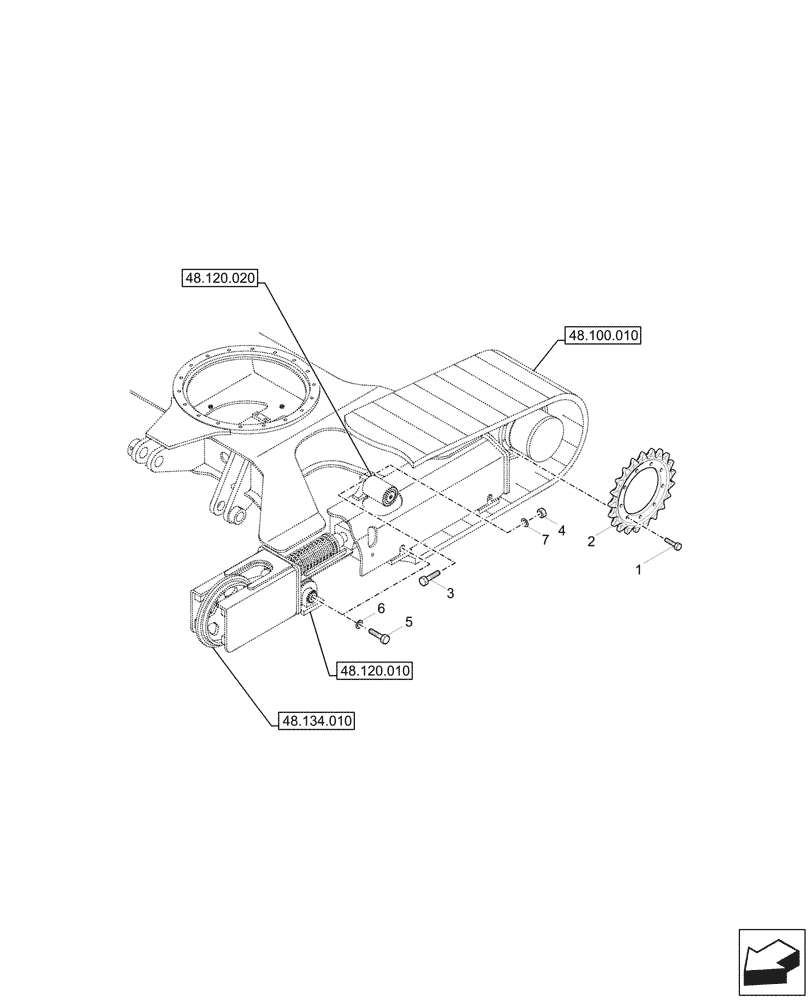

Запчасти Case CX26C (48.130.030) - VAR - 9552700 - SPROCKET, TRACK CHAIN (48) - TRACKS & TRACK SUSPENSION

1

S109-120306

BOLT

M12 x 1.75 x 30mm

24шт.

2

8LMK-10011CG

SPROCKET

2шт.

3

S017-120706

BOLT

M12 x 1.75 x 70mm

2шт.

4

S275-12000B

NUT

M12 x 1.75mm

2шт.

5

S017-16035D

BOLT

M16 x 2 x 35mm

12шт.

6

81MK-40210

WASHER

12шт.

7

S441-12000B

WASHER

12mm ID

4шт.
