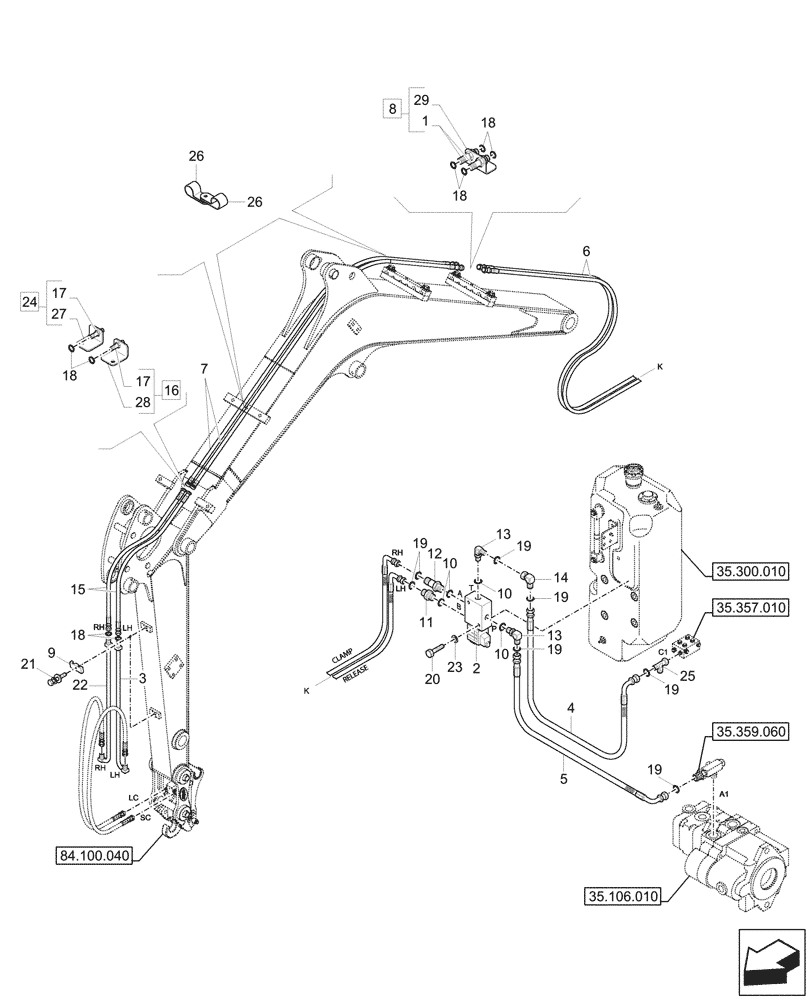

Запчасти Case CX26C (35.734.020) - VAR - 405036, 405038 - QUICK COUPLER, LINE (35) - HYDRAULIC SYSTEMS

1

X540-120001

HYD CONNECTOR

2шт.

2

31M9-20060

SOLENOID

1шт.

3

35MK-90020CA

PIPE

1шт.

4

X420-042015

HYDRAULIC HOSE,9/16 - 18 UNF x 750mm

1шт.

5

P933-045027

HYDRAULIC HOSE

9/16 - 18 UNF x 1350mm

1шт.

6

P930-045048

HYDRAULIC HOSE

2шт.

7

P913-045031

HYDRAULIC HOSE

9/16 - 18 UNF x 1550mm

2шт.

8

31M8-90131

TERMINAL

ASSY, Incl 1, 29

1шт.

9

31M6-75091

CLAMP

2шт.

10

S631-011004

O-RING,PF 1/4

4шт.

11

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

12

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

13

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

14

X850-515100

90 ELBOW

9/16 - 18 UNF

1шт.

15

P913-045017

HYDRAULIC HOSE

9/16 - 18 UNF x 850mm

2шт.

Short Arm With Quick Clamp, Var. 405036

1шт.

15

P913-045022

HYDRAULIC HOSE

9/16 - 18 UNF x 1100mm

2шт.

Long Arm With Quick Clamp, Var. 405038

1шт.

16

35MK-90130

TERMINAL

LH, ASSY, Incl 17 (Qty 1), 28

1шт.

17

X540-120001

HYD CONNECTOR

2шт.

18

S621-011001

O-RING,9/16 - 18 UNF

12шт.

19

S621-011001

O-RING,9/16 - 18 UNF

7шт.

20

S015-080506

BOLT,M8 x 1.25 x 50mm

2шт.

21

S035-082526

BOLT,M8 x 1.25 x 25mm

2шт.

22

35MK-90030CA

PIPE

1шт.

23

S411-080006

WASHER

2шт.

24

35MK-90140

TERMINAL

RH, ASSY, Incl 17 (Qty 1), 27

1шт.

25

X840-515151

TEE,9/16 - 18 UNF

1шт.

26

31L7-10190

CLAMP,15mm ID

4шт.

27

NSS

NOT SOLD SEPARAT

Terminal, Incl in 24

1шт.

28

NSS

NOT SOLD SEPARAT

Terminal, Incl in 16

1шт.

29

NSS

NOT SOLD SEPARAT

Terminal, Incl in 8

1шт.
