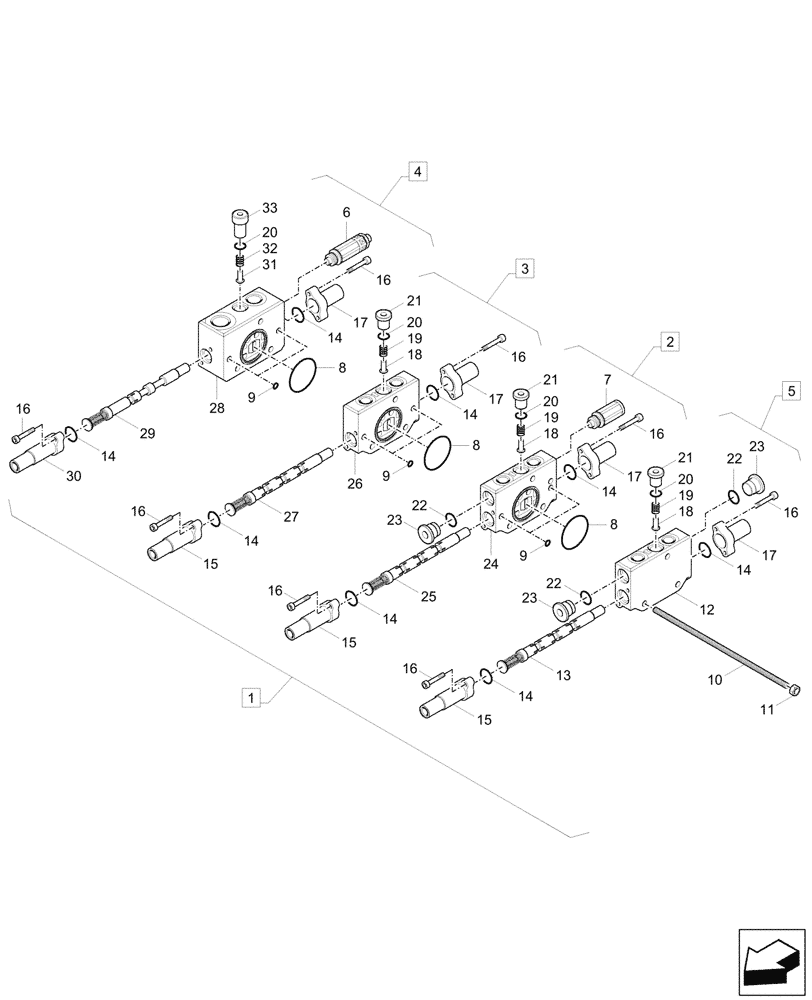

Запчасти Case CX17C (35.359.010) - CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

31MJ-11111

HYDRAULIC VALVE

Main, ASSY, Incl 2 - 11

1шт.

See Also Figure 35.359.020, 35.359.030

1шт.

2

XJCK-00692

TOOL BOX

Boom Swing, ASSY, Incl 14 - 25

1шт.

3

XJCK-00696

TOOL BOX

Swing, ASSY, Incl 14 - 21, 26, 27

1шт.

4

XJCK-00700

BODY

Connecting, ASSY, Incl 14, 16, 17, 20, 28 - 33

1шт.

5

XJCK-00678

TOOL BOX

Dozer, ASSY, Incl 12 - 23

1шт.

6

XJCK-00744

VALVE PRESSURE RELIE

1шт.

7

XJCK-00746

BODY

1шт.

8

XJCK-00747

O-RING

3шт.

9

XJCK-00096

O-RING

6шт.

10

XJCK-00748

BOLT

3шт.

11

XJCK-00295

NUT

3шт.

12

NSS

NOT SOLD SEPARAT

Body, Incl in 5

1шт.

13

XJCK-00680

SPOOL

1шт.

14

XJCK-00686

O-RING

8шт.

15

XJCK-00687

COVER

3шт.

16

XJCK-00308

BOLT

16шт.

17

XJCK-00688

COVER

4шт.

18

XJCK-00689

POPPET

3шт.

19

XJCK-00690

SPRING

3шт.

20

XJCK-00001

O-RING

4шт.

21

XJCK-00691

PLUG

3шт.

22

XJCK-00110

O-RING

3шт.

23

XJCK-00207

PLUG

3шт.

24

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

25

XJCK-00694

SPOOL

1шт.

26

NSS

NOT SOLD SEPARAT

Body, Incl in 3

1шт.

27

XJCK-00698

SPOOL

1шт.

28

NSS

NOT SOLD SEPARAT

Body, Incl in 4

1шт.

29

XJCK-00702

SPOOL

1шт.

30

XJCK-00704

COVER

1шт.

31

XJCK-00705

POPPET

1шт.

32

XJCK-00706

SPRING

1шт.

33

XJCK-00707

PLUG

1шт.
