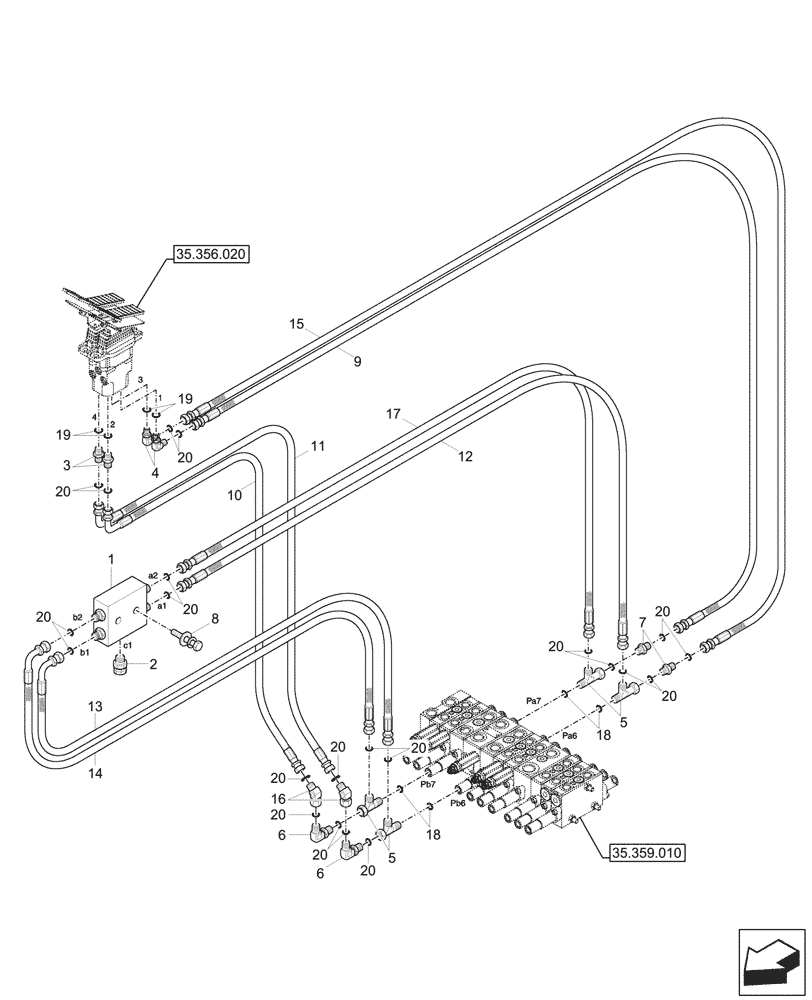

Запчасти Case CX17C (35.356.060) - PILOT CONTROLS, SHUTTLE, VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

32MJ-20410

HYDRAULIC VALVE

Shuttle

1шт.

Travel Alarm, Var. 747453

1шт.

2

31E5-40540

SWITCH

Pressure

1шт.

Travel Alarm, Var. 747453

1шт.

3

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

4

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

5

X840-515151

TEE,9/16 - 18 UNF

4шт.

Travel Alarm, Var. 747453

1шт.

6

32MJ-40440

ELBOW

2шт.

7

31Q6-20210

HYD CONNECTOR

2шт.

Travel Alarm, Var. 747453

1шт.

8

S035-084526

BOLT,M8 x 1.25 x 45mm

2шт.

9

X420-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

1шт.

Travel Alarm, Var. 747453

1шт.

10

X420-042011

HYDRAULIC HOSE,9/16 - 18 UNF x 550mm

1шт.

Travel Alarm, Var. 747453

1шт.

11

X420-042013

HYDRAULIC HOSE,9/16 - 18 UNF x 650mm

1шт.

Travel Alarm, Var. 747453

1шт.

12

X400-042008

HYDRAULIC HOSE

1шт.

Travel Alarm, Var. 747453

1шт.

13

X420-042006

HYDRAULIC HOSE

1шт.

Travel Alarm, Var. 747453

1шт.

14

X420-042005

HYDRAULIC HOSE

1шт.

Travel Alarm, Var. 747453

1шт.

15

X400-042012

HYDRAULIC HOSE

1шт.

16

X860-515100

45 ELBOW,9/16 - 18 UNF

2шт.

Travel Alarm, Var. 747453

1шт.

17

X400-042007

HYDRAULIC HOSE

1шт.

Travel Alarm, Var. 747453

1шт.

18

S631-008004

O-RING

4шт.

19

S631-011004

O-RING,PF 1/4

4шт.

20

S621-011001

O-RING,9/16 - 18 UNF

22шт.
