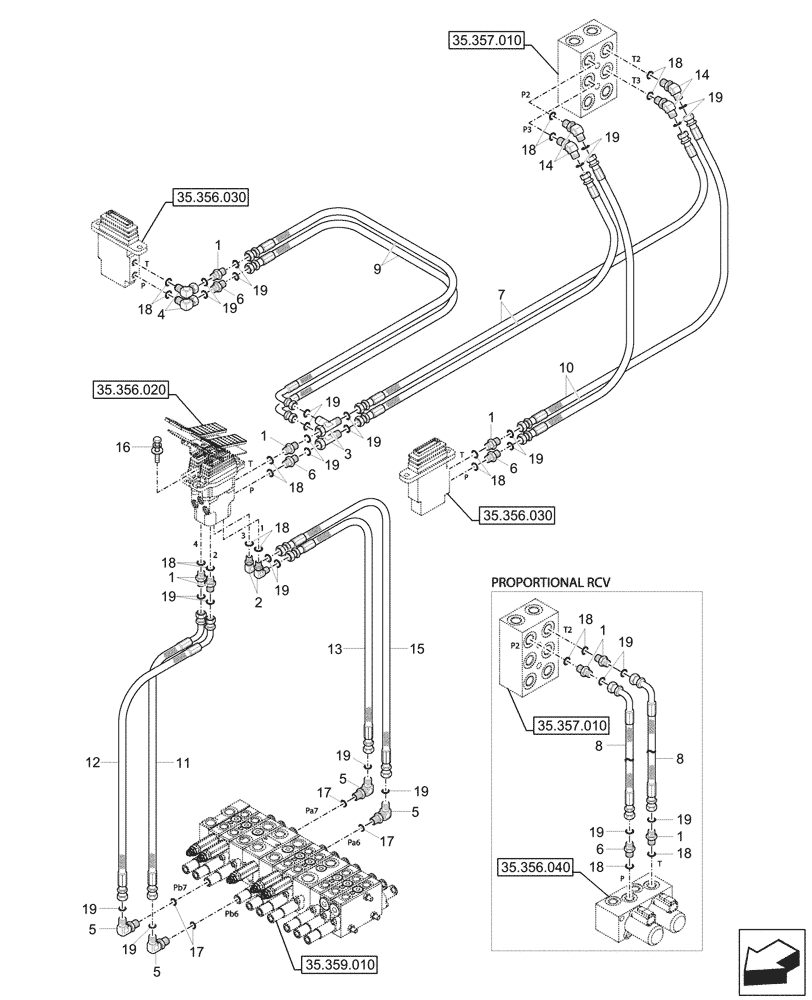

Запчасти Case CX17C (35.356.050) - PILOT CONTROLS, FOOT CONTROL VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

5шт.

1

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

6шт.

Auxiliary Hydraulic Circuit, With Pedal, Var. 405001, 405004

1шт.

1

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

8шт.

Auxiliary Hydraulic Circuit, With Joystick, Var. 405002, 405005

1шт.

2

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

3

X840-515151

TEE,9/16 - 18 UNF

2шт.

4

X850-515100

90 ELBOW

2шт.

5

32MJ-40440

ELBOW

4шт.

Without Travel Alarm, Var. 747994

1шт.

6

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

3шт.

6

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

4шт.

Auxiliary Hydraulic Circuit, With Pedal, Var. 405001, 405004

1шт.

Auxiliary Hydraulic Circuit, With Joystick, Var. 405002, 405005

1шт.

7

X400-042009

HYDRAULIC HOSE

2шт.

8

X420-042007

HYDRAULIC HOSE,9/16 - 18 UNF x 350mm

2шт.

Auxiliary Hydraulic Circuit, With Joystick, Var. 405002, 405005

1шт.

9

X420-042004

HYDRAULIC HOSE,9/16 - 18 UNF x 200mm

2шт.

10

X400-042013

HYDRAULIC HOSE

2шт.

Auxiliary Hydraulic Circuit, With Pedal, Var. 405001, 405004

1шт.

11

X420-042014

HYDRAULIC HOSE

1шт.

Without Travel Alarm, Var. 747994

1шт.

12

X420-042012

HYDRAULIC HOSE,9/16 - 18 UNF x 600mm

1шт.

13

X400-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

1шт.

Without Travel Alarm, Var. 747994

1шт.

14

X530-110001

45 ELBOW,PF 1/4 x 9/16 - 18 UNF

4шт.

15

X400-042012

HYDRAULIC HOSE

1шт.

Without Travel Alarm, Var. 747994

1шт.

16

S037-102526

BOLT,M10 x 1.5 x 25mm

4шт.

17

S631-008004

O-RING

4шт.

18

S631-011004

O-RING,PF 1/4

14шт.

19

S621-011001

O-RING,9/16 - 18 UNF

24шт.
