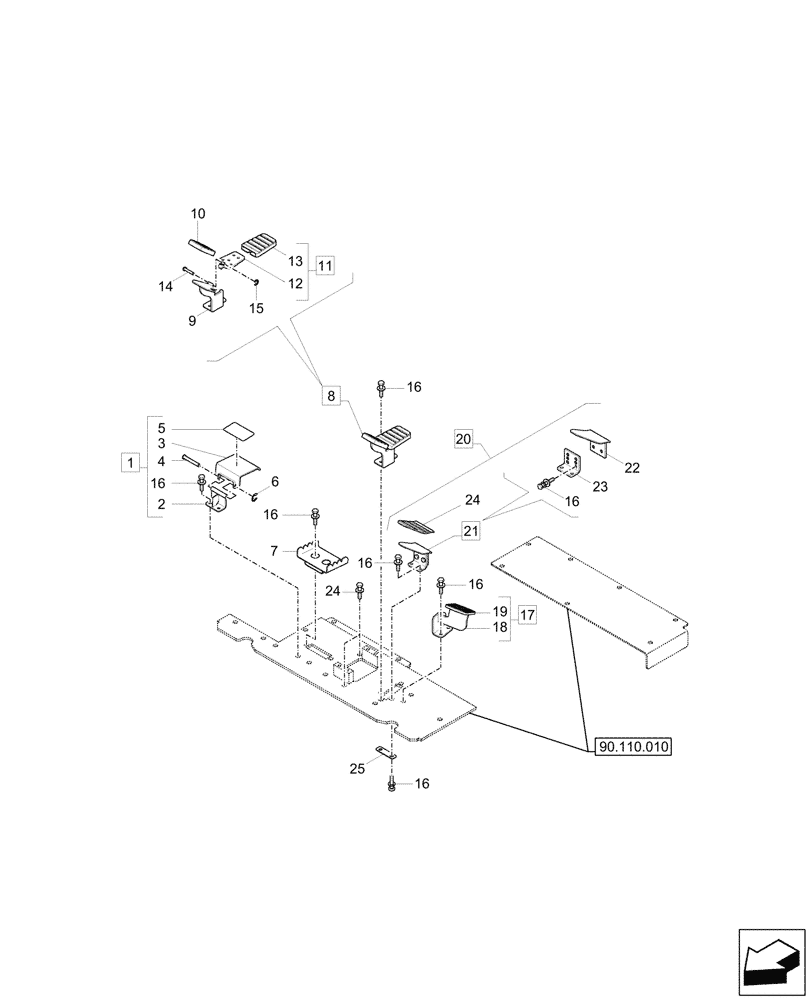

Запчасти Case CX17C (35.356.010) - PEDAL, CONTROL (35) - HYDRAULIC SYSTEMS

1

72MJ-00660CG

COVER ASSY

Pedal, ASSY, Incl 2 - 5

1шт.

2

72MJ-00830CG

BRACKET

1шт.

3

72MJ-00670CG

COVER

1шт.

4

71MH-00700

SHAFT

1шт.

5

71MH-00710

TAPE

1шт.

6

P560-070002

RING

1шт.

7

71MK-00720CG

PLATE

1шт.

8

71M9-23471CG

PEDAL

LH, ASSY, Incl 9 - 15

1шт.

Auxiliary Hydraulic Circuit, With Pedal, Var. 405001, 405004

1шт.

9

71M9-23491CG

PEDAL

1шт.

10

71M9-23590

PEDAL

Rubber

1шт.

11

71M9-23611CG

PEDAL

LH Lower, ASSY, Incl 12, 13

1шт.

12

71M9-23511

PEDAL

1шт.

13

NSS

NOT SOLD SEPARAT

Rubber, Incl in 11

1шт.

14

73M8-10450

SHAFT

1шт.

15

P560-060002

RING

1шт.

16

S035-082526

BOLT,M8 x 1.25 x 25mm

4шт.

16

S035-082526

BOLT,M8 x 1.25 x 25mm

8шт.

Auxiliary Hydraulic Circuit, With Pedal, Var. 405001, 405004

1шт.

Auxiliary Hydraulic Circuit, With Joystick, Var. 405002, 405005

1шт.

17

71M9-10621CG

FOOTREST

LH, ASSY, Incl 18, 19

1шт.

Auxiliary Hydraulic Circuit, With Pedal, Var. 405001, 405004

1шт.

18

71M9-10581CG

FOOTREST

1шт.

19

FAC0600400

COVER

1шт.

20

71M9-25530CG

FOOTREST

LH, ASSY, Incl 21, 24

1шт.

Auxiliary Hydraulic Circuit, With Joystick, Var. 405002, 405005

1шт.

21

71M9-25481CG

FOOTREST

LH, ASSY, Incl 16 (Qty 2), 22, 23

1шт.

22

71M9-25501CG

PLATE

1шт.

23

71M9-22722CG

BRACKET

1шт.

24

71M9-23130

FOOTREST

Rubber

1шт.

25

72MJ-21180CG

PLATE

1шт.

Auxiliary Hydraulic Circuit, With Joystick, Var. 405002, 405005

1шт.
