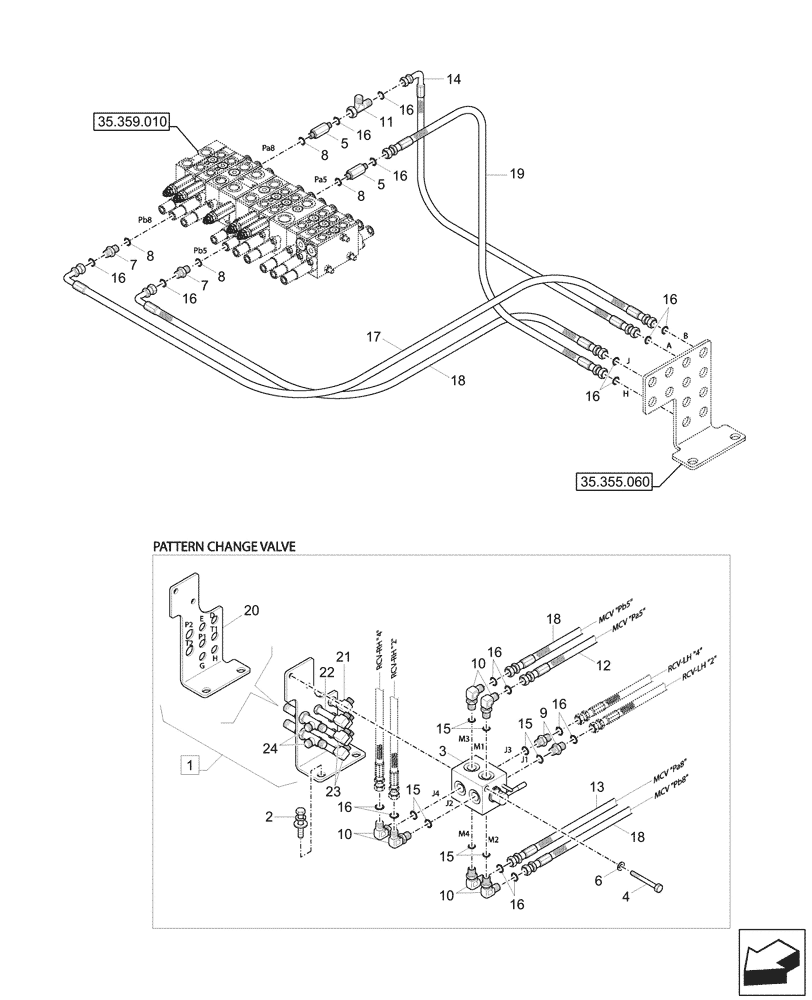

Запчасти Case CX17C (35.355.070) - PILOT CONTROLS, CONTROL PATTERN SELECTION, VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

32MJ-20263

TERMINAL

ASSY, Incl 20 - 24

1шт.

With Pattern Change, Var. 747068

1шт.

2

S037-102526

BOLT,M10 x 1.5 x 25mm

2шт.

3

31N6-22050

VALVE,PF 1/4

Selector

1шт.

With Pattern Change, Var. 747068

1шт.

4

S015-080806

BOLT,M8 x 1.25 x 80mm

2шт.

With Pattern Change, Var. 747068

1шт.

5

32MJ-40460

HYD CONNECTOR

2шт.

6

S403-08200B

WASHER

2шт.

With Pattern Change, Var. 747068

1шт.

7

31Q6-20210

HYD CONNECTOR

2шт.

8

S631-008004

O-RING

4шт.

9

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

With Pattern Change, Var. 747068

1шт.

10

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

6шт.

With Pattern Change, Var. 747068

1шт.

11

X840-515151

TEE,9/16 - 18 UNF

2шт.

12

X400-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

1шт.

With Pattern Change, Var. 747068

1шт.

13

X420-042006

HYDRAULIC HOSE

1шт.

With Pattern Change, Var. 747068

1шт.

14

X420-042007

HYDRAULIC HOSE,9/16 - 18 UNF x 350mm

1шт.

Without Pattern Change, Var. 747069

1шт.

15

S631-011004

O-RING,PF 1/4

8шт.

16

S621-011001

O-RING,9/16 - 18 UNF

17шт.

17

X420-042015

HYDRAULIC HOSE,9/16 - 18 UNF x 750mm

1шт.

Without Pattern Change, Var. 747069

1шт.

18

X420-042017

HYDRAULIC HOSE,9/16 - 18 UNF x 850mm

1шт.

Without Pattern Change, Var. 747069

1шт.

18

X420-042017

HYDRAULIC HOSE,9/16 - 18 UNF x 850mm

2шт.

With Pattern Change, Var. 747068

1шт.

19

X400-042006

HYDRAULIC HOSE,9/16 - 18 UNF x 300mm

1шт.

Without Pattern Change, Var. 747069

1шт.

20

32MJ-20272

BRACKET

1шт.

21

31MJ-20270

ELBOW

3шт.

22

31MJ-20280

ELBOW

1шт.

23

31MJ-20290

ELBOW

2шт.

24

31MH-20200

TEE

2шт.
