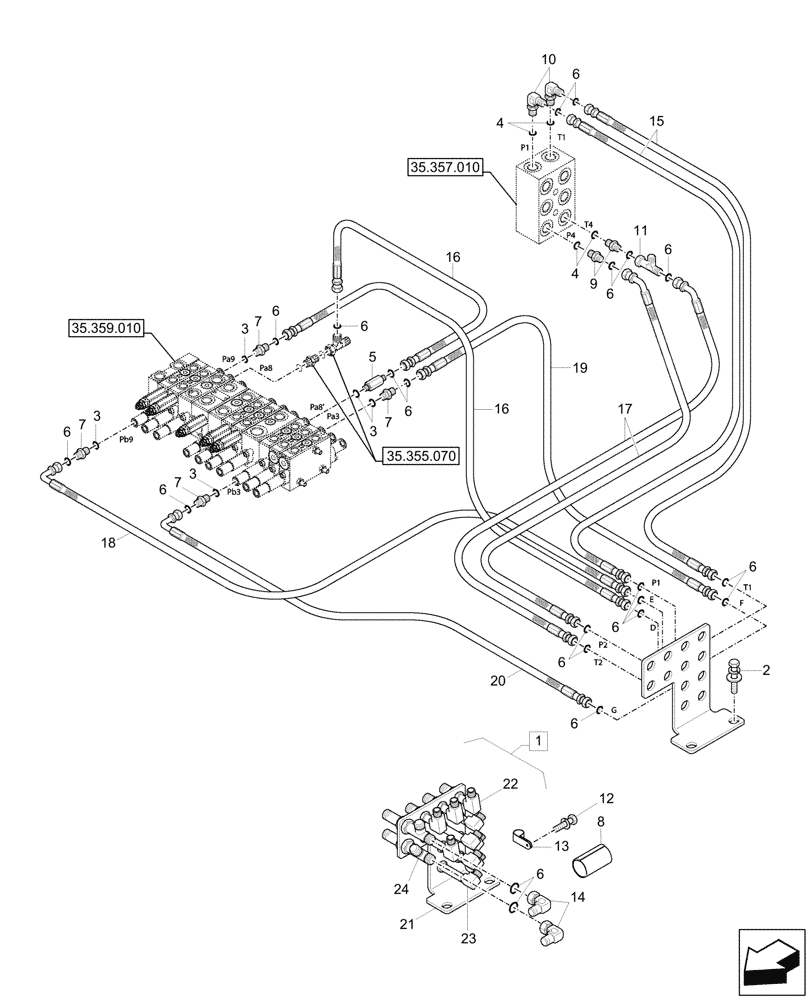

Запчасти Case CX17C (35.355.060) - PILOT CONTROLS, TERMINAL CONNECTOR, LINES (35) - HYDRAULIC SYSTEMS

1

32MJ-20182

TERMINAL

ASSY, Incl 21 - 24

1шт.

Without Pattern Change, Var. 747069

1шт.

2

S037-102526

BOLT,M10 x 1.5 x 25mm

2шт.

3

S631-008004

O-RING

5шт.

4

S631-011004

O-RING,PF 1/4

4шт.

5

32MJ-40460

HYD CONNECTOR

1шт.

6

S621-011001

O-RING,9/16 - 18 UNF

22шт.

7

31Q6-20210

HYD CONNECTOR

4шт.

8

71M9-25400

PROTECTOR

1шт.

9

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

10

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

11

X840-515151

TEE,9/16 - 18 UNF

1шт.

12

S037-102026

BOLT,M10 x 1.5 x 20mm

1шт.

13

31L7-10230

CLAMP

1шт.

14

X850-515100

90 ELBOW

4шт.

15

X400-042014

HYDRAULIC HOSE

2шт.

16

X400-042008

HYDRAULIC HOSE

2шт.

17

X410-042014

HYDRAULIC HOSE,9/16 - 18 UNF x 700mm

2шт.

18

X420-042014

HYDRAULIC HOSE

1шт.

19

X400-042007

HYDRAULIC HOSE

1шт.

20

X420-042019

HYDRAULIC HOSE

1шт.

21

32MJ-20192

BRACKET

1шт.

22

31MJ-20270

ELBOW

6шт.

23

31MJ-20290

ELBOW

4шт.

24

31MH-20200

TEE

2шт.
