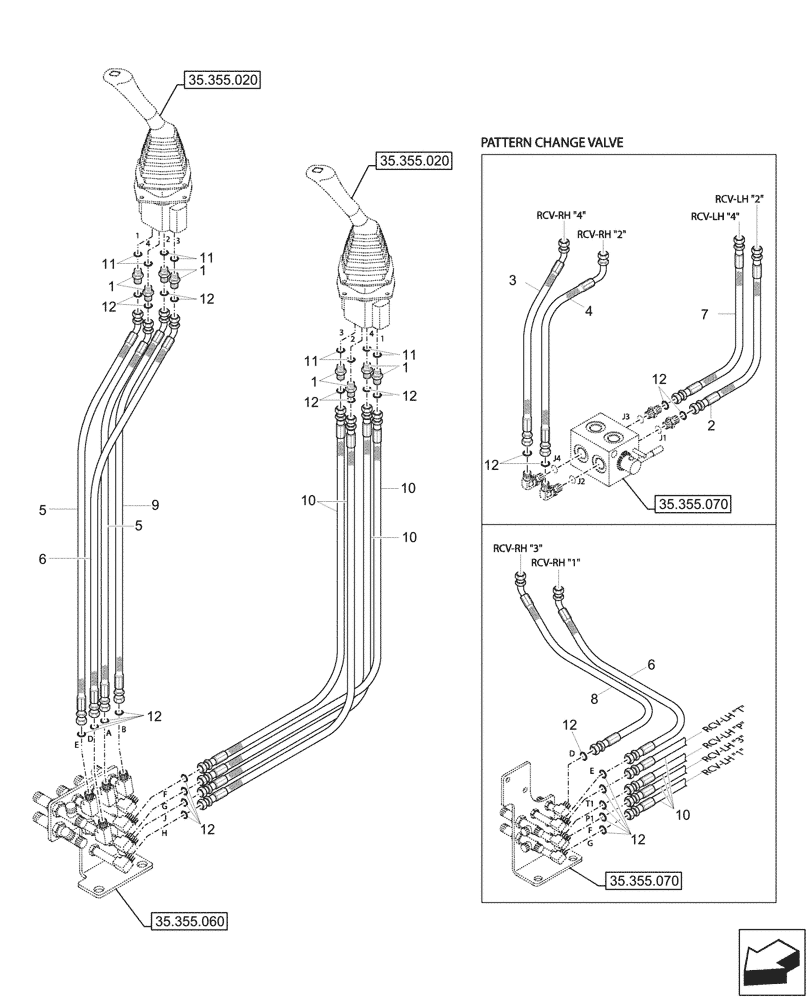

Запчасти Case CX17C (35.355.050) - PILOT CONTROLS, JOYSTICK, LINES (35) - HYDRAULIC SYSTEMS

1

X500-110013

HYD CONNECTOR,PF 3/8 x 9/16 - 16 UNF

8шт.

2

X400-042016

HYDRAULIC HOSE

1шт.

With Pattern Change, Var. 747068

1шт.

3

X410-042027

HYDRAULIC HOSE,9/16 - 18 UNF x 1350mm

1шт.

With Pattern Change, Var. 747068

1шт.

4

X420-042033

HYDRAULIC HOSE

1шт.

With Pattern Change, Var. 747068

1шт.

5

X410-042028

HYDRAULIC HOSE

2шт.

Without Pattern Change, Var. 747069

1шт.

6

X410-042030

HYDRAULIC HOSE,9/16 - 18 UNF x 1500mm

1шт.

7

X400-042015

HYDRAULIC HOSE

1шт.

With Pattern Change, Var. 747068

1шт.

8

X410-042033

HYDRAULIC HOSE

1шт.

With Pattern Change, Var. 747068

1шт.

9

X420-042032

HYDRAULIC HOSE

1шт.

Without Pattern Change, Var. 747069

1шт.

10

X400-042017

HYDRAULIC HOSE

4шт.

Without Pattern Change, Var. 747069

1шт.

11

S631-014004

O-RING

8шт.

12

S621-011001

O-RING,9/16 - 18 UNF

16шт.

12

S621-011001

O-RING,9/16 - 18 UNF

20шт.

With Pattern Change, Var. 747068

1шт.
